Heavy gauge cut to length line

    Unit Price: USD 20000 - 50000 / Set/Sets
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 60 Days
Additional Info

Packaging: nude packing

Productivity: 30 set

Brand: Zhongtuo

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: CE, ISO, SGS

Product Description


72" x .250" x 50,000lbs B&K CTL Line Siemi heavy gauge Cut To Length Line

------------------------------------------------------------------------------------------------------

Zhongtuo siemi heavy gauge cut to length line

This cut to length line is used to cut metal sheet to standard length like 400-4000mm. The machine working speed is around 20 to 60 meter per minute.

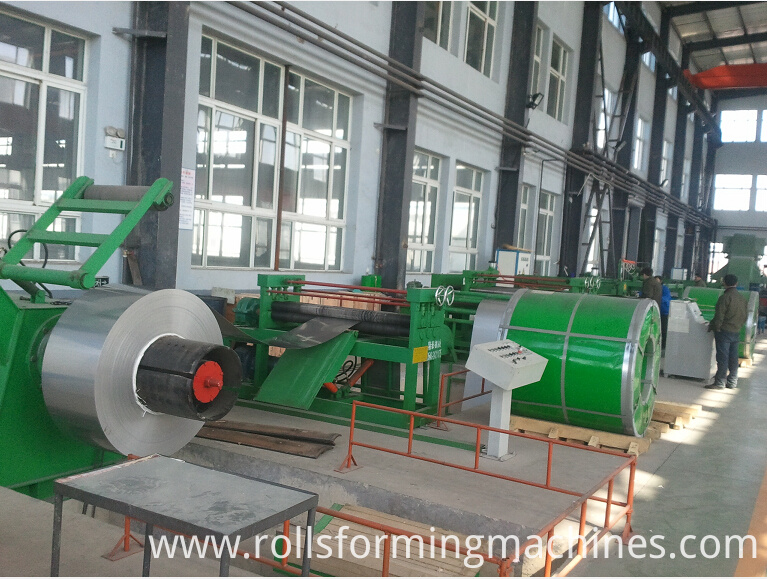

Metal slitting production line


2. Technical flow of cut to length machine:
Coil-loading car→single mandrel uncoiler with coil-head guide→pinch feeder→transmission roll table→ side guide→ leveler →encode length-fixing→shear →stacker

3. Description of each equipment:

3.1.Coil-loading Car
1) Structure: Four wheels, car body made by welding
2) The car walking is driven by: 1.5kw cycloid pin-wheel motor
3) Car up-down movement by hydraulic cylinder Φ100×500mm
4) walking speed: 8m/min, max 4000mm distance.
5) Max load: 3000kgs.

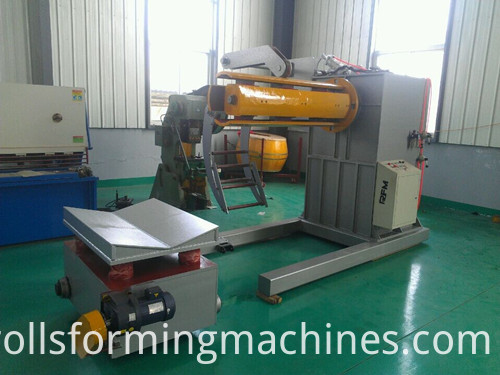

decoiler 1
3.2.Single Mandrel Decoiler with Coil head Guide
Uncoiler Structure: welding assembly base, cantilever single mandrel hydraulically expanded by connecting-rod.
Uncoiling drum: Φ508×450mm, expansion range: Φ500~Φ610mm.
Hydraulic cylinder for expansion: Φ100×100mm
Brake style: pneumatic pressure-regulating brake
Coil max width: 400mm
Coil max OD: 1400mm
Max coil weight: 3,000kgs.
Coil-head guide is installed on uncoiler
The press-down of coil-head arm by hydraulic cylinder Φ75 x 300mm
Traction wheel for opening coil-head: Φ150 x 150mm, driven by 2.2KW cycloid motor.

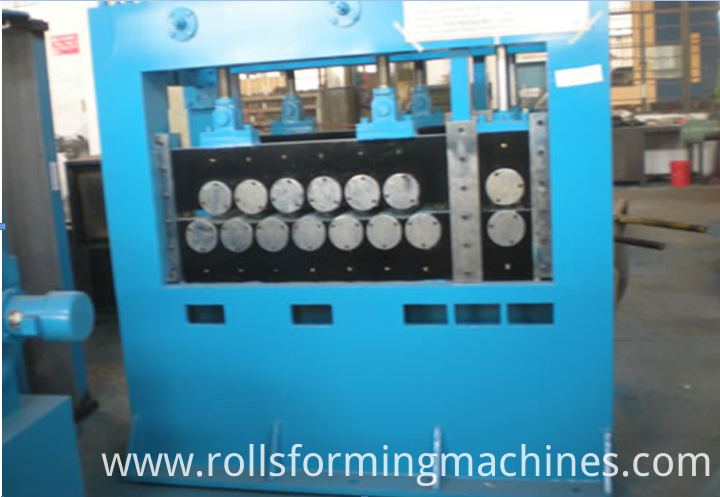

levleing unit
3.3 Hydraulic Pinch-feeder with shoveling plate
Pinch-feeder: Composed of base, stand, roller seat, double pinch-feeding rollers, the lifting & pressing-down mechanism for up roller, drive motor.
The up-down moving of upper press roller: by Φ70 x 150mm hydraulic cylinder, two pcs.
The drive motor: 4KW cycloid motor.
Shoveling Plate: welding assembly with steel plates, two tongue-shaped plates(big one to move up-and-down, small one to expand and contract)
Hydraulic cylinder for big tongue up-down movement: Φ80×400mm
Hydraulic cylinder for small tongue expansion Φ63×400mm-


3.4.Transmission Roll Table
Dimensions:2000mm length x 500mm width
Composed of 4pcs Φ100 x 600 rollers, steel plates, chains.

slitting line 1
3.5 Side guide
Structure: vertical rollers to restrict the progressing position of strip in the centerline.
Vertical rollers: two pairs, Φ80×110mm, 40Cr, high-frequency quenching
To adjust vertical rollers by lead screws with adjusting range: 100-400mm
3.6.Leveling machine
1) Composed of lever, lever's drive, and encoder to fix length.
2) Drive is composed of base, ZQ500 speed reducer, 37KW DC motor, Eurotherm 590 DC speed controller, couplers, brake, and gearbox.
3) Leveler is composed of base, frame, seats of up rollers and down rollers, up beam, sliding axle block, 15 leveling rollers(7 over 8 rollers), one row backup rollers for respectively upper and down levelign rollers press-down device by electric motors(2.2KW cycloid speed reducer) up-down mechanism for up feeding roller.

3.7.Hydraulic shear
Composed of frame, guide rail, sliding knife holder, hydraulic cut-off mechanism.

The hydraulic cylinder for shear: Φ160 x 200mm, one pc

3.8.Stacker
Composed of table rack and walking mechanism, etc.

Drive motor: 3KW cycloid motor.

Looking for ideal Siemi Heavy Gauge Cut to Length Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Heavy Cut to Length are quality guaranteed. We are China Origin Factory of B&K CTL Line. If you have any question, please feel free to contact us.
