Simple Slitting Line For Metal Stud And Track

    Unit Price: USD 34000 - 80000 / Set/Sets
    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 65 Days
Basic Info

Model No.: ZT-002

Function: Thin Sheet For, Thin Sheet Slitting For Track Making

Usage: Metal Slitting

Processing Material: ALUZINC, Or ALUMINIUM Or STAINLESS STEAL

Material Thickness: 0.5—1.0 Mm

Material Hardness: 195 Mpa---350 Mpa

Max Weight: 5 T

Max Width: 1200

Working Speed: 25m/min

Design Type: Memorial Arch

Driving Motor: 15 Kw

Additional Info

Packaging: nude

Productivity: 30 set

Brand: zhongtuo

Transportation: Ocean,Land,Air

Place of Origin: cangzhou

Supply Ability: 30sets/month

Certificate: ISO, CE9001

Product Description

Simple Slitting Line For Metal Stud And Track

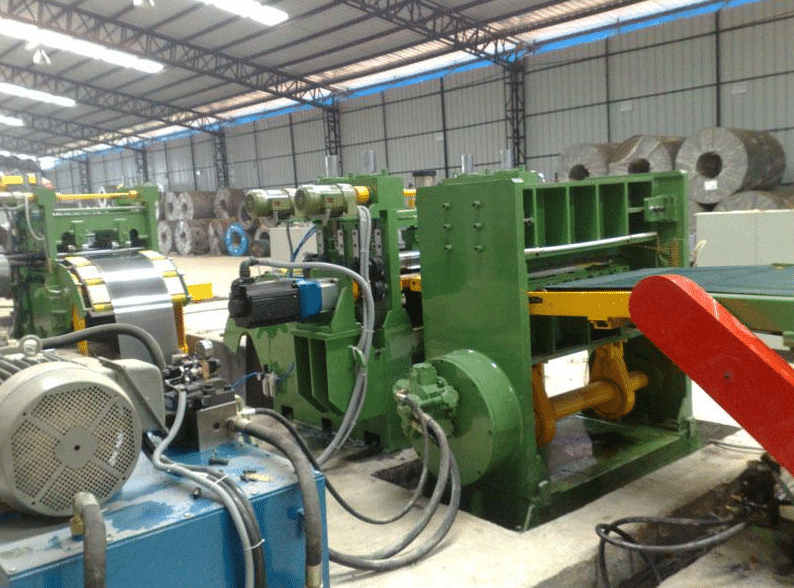

This metal Slitting Line Machine, we specially design for slitting width sheet to thin sheet and then making track and stud. Normally speaking, the thickness could be controlled within 0.3 to 1.0 mm. Here is one of the whole slitting line pictures for your reference:

slitting line

Steel Slitting Line production process


decoiler, guiding device, slitting device, cutting device, length measure device, extension device, recoiler, coil car, hydraulic station, PLC controlling system.

slitting line working process

Production parameters:

Processing material:

ALUZINC, or ALUMINIUM or STAINLESS STEAL

Material thickness

0.5-0.8mm

Material hardness

195 mpa---350 mpa

Materisl width

Max 1000 mm

Inner diameter

508mm

Max out diameter

1200mm

Max weight

Max weight: 5 T

Configurations

Decoiler, Slitting device, Cutting device, Recoiler

Decoiler specifications

Max coil weight:

5 T

Inner diameter:

GI 508mm

Max out diameter

1250mm

Hydraulic station power:

3 kw

Decoiler speed:

0-25m/min

Finished product specifications:

width tolerance:

0.5mm

Min slitting width:

25 mm

Forming steps

10 rollers

Shaft diameter

40mm

Design type

Memorial arch

Slitting device specifications

Slitting speed:

0-25mm/min

Driving motor:

15 Kw

Slitting shaft diameter

Ф100mm

Shearing blade

9 pieces

Max slitting pieces

10 pieces

Min slitting width

25 mm

Shearing blade material:

9CrSi

Pinching roller:

2 couples

Cutting device.

Cutting thickness

0.3-1.0mm

Cutting length

500-4000mm

Cutting width

900-1250mm

Cutting speed:

4-15m/min

Recoiler specifications:

Max coil weight:

5 T

Inner diameter:

508/610mm

Max out diameter:

1250mm

Recoiler motor:

7.5Kw

Hydraulic station power:

3Kw

Recoiler speed:

0-25m/min

Voltage

220v/60hz/3ph(or as required)

l Standard Equipment of Machine

5T decoiler

1 set

Slitting device

1set

Extension device

1 pc

5T coiler

1 set

Coil car

1 pc

Hydraulic Station

2pcs


Delivery Terms:

- Shipment within 60 days after receipt of down payment.

Payment Terms:

Payment of the contract with following schedule:

- 30%: The payment shall pay by T/T the downpayment to the Seller within 15 days after the signature of the Contract. The Contract then comes into effect.

- 70%: The buyer shall pay to the seller 70% of total contract amount before the seller`s ship the machine to XINGANG, CHINA.

Equipment Manufacturing and Inspection/Test

1. The Seller manufactures the equipment according to the relevant standards strictly and tests the equipment according to the technical documents.

2. The Buyer shall inspect and test the commodities at the Seller`s factory at the Seller informs to confirm their conformity to the Contract Specifications. If the Buyer fails to arrive on time, the Seller shall have the right to deliver the goods according to the date stipulated in the Contract.

T Technical Documents

The Seller shall submit the following documents in English:

1. Foundation Plan (including the arrangement of water, electricity and air etc.)

2. Arrangement Plan

3. Operation Instruction (including the structure diagrams of the equipment, operation instruction, maintenance and trouble shooting, safe rules, consumable parts list and purchased parts list)

I Installation, Commissioning, Test and Training

1. The engineers from the Seller shall supervise the installation on site and fulfill the commissioning. They should start off within 10 days after they get the information from the Buyer.

2. The Seller trains the operators of the Buyer during the commissioning

3. Commissioning: about 3 engineers in 30 days.

4. The Buyer shall pay for the international air tickets and the local, such as board and lodging, daily transportation, communication,Insurance, etc. The Buyer shall pay USD 50 /day /person to the Seller for the commissioning.

5. The Buyer shall prepare an interpreter for better communication between the two sides.


Here are some machine pictures for your reference:

control panle

This is the PLC control system, here you can adjust the machine working speed, slitting proess and others.

decoiler

This is the decoiler, by this one, you can load coil.

main slitting machine

waste coil collector

recoiler

This is very simple slitting line, this machine is very good for those who just build factory at the very beginning and have small budget. This slitting line is very economic.

Looking for ideal Slitting Line Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Thin Sheet Slitter are quality guaranteed. We are China Origin Factory of Slitting Line for Metal Stud and Track. If you have any question, please feel free to contact us.
