ZT-006-44 Steel Frame Roll Forming Machine

    Unit Price: USD 15500 / Set/Sets
    Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
    Incoterm: FOB,CFR,CIF,FCA,CPT
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
Basic Info

Model No.: ZT-006-44

Certification: CE, RoHS, SGS, GS, ISO9001

Customized: Customized

Condition: New

Control Type: CNC

Automatic Grade: Automatic

Drive: Electric

Forming Speed: 8-12 M Per Minute

Forming Size: 80-300 Mm Width

Material Thickness: 1.5-3.0 Mm

Roller Station: 16 Stations

Main Power: 11Kw

Roller Station Type: Iron Cast

Shaft Diameter: 76 Mm

Roller Material: Cr12 Chrome Coated

Voltage: As Customer Demand

Additional Info

Packaging: Nude packaged in 40 ft container

Productivity: 8-12m/min

Brand: Zhongtuo

Transportation: Ocean,Land,Air

Place of Origin: China(mainland)

Supply Ability: 30 sets/month

Certificate: CE/ISO

HS Code: 84552210

Port: Xingang Port China,Shanghai Port China

Product Description

Steel Frame Roll Forming Machine

We are the specialized manufacturer in producing all kinds of roll forming machines, such as Glazed Tile Roll Forming Machine, roof/wall panel roll forming machine, Double Layer Roll Forming Machine, Steel Frame Roll Forming Machine, Floor Deck Roll Forming Machine, highway guardrail machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on.

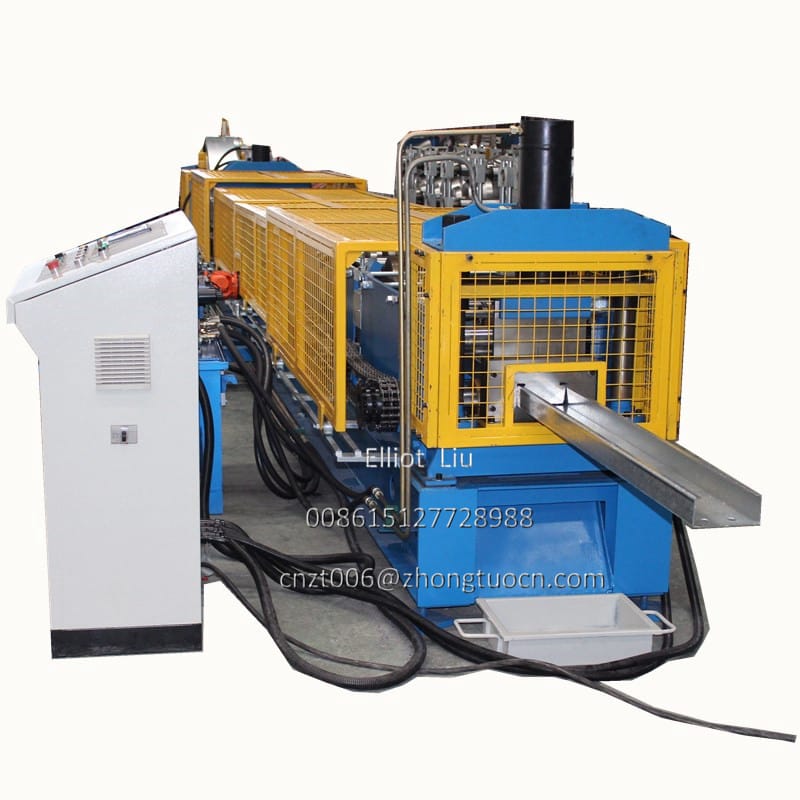

steel frame roll forming machine

Steel Frame Roll Forming Machine technique parameters:

Configurations: Manual Uncoiler, Guiding Platform, Coil Strip Leveler, Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device, Cutting Device, Hydraulic Station, PLC Control.
steel frame roll forming machine

Main Frame: 350mm H-Beam
Main Power: 11 kw
Pump Power: 7.5kw
Power Supply: 3-Phase, 380V, 50Hz
Forming Speed: 8-12m/min
Forming Size: 80-300mm
Feeding Thickness: 1.5-3.0mm
Roller Station: 16 Stands
Roller Diameter: 76mm
Chain Size: 2 inches
Cutter Standard: Cr12
Roller Standard: Cr12
Cr-Plating Size: 0.05mm
Overall Size: 9500×1400×1350mm
Total Weight: 6T

We design each machine according to user requirement.

Above techinical parameters can be adjusted if needed.

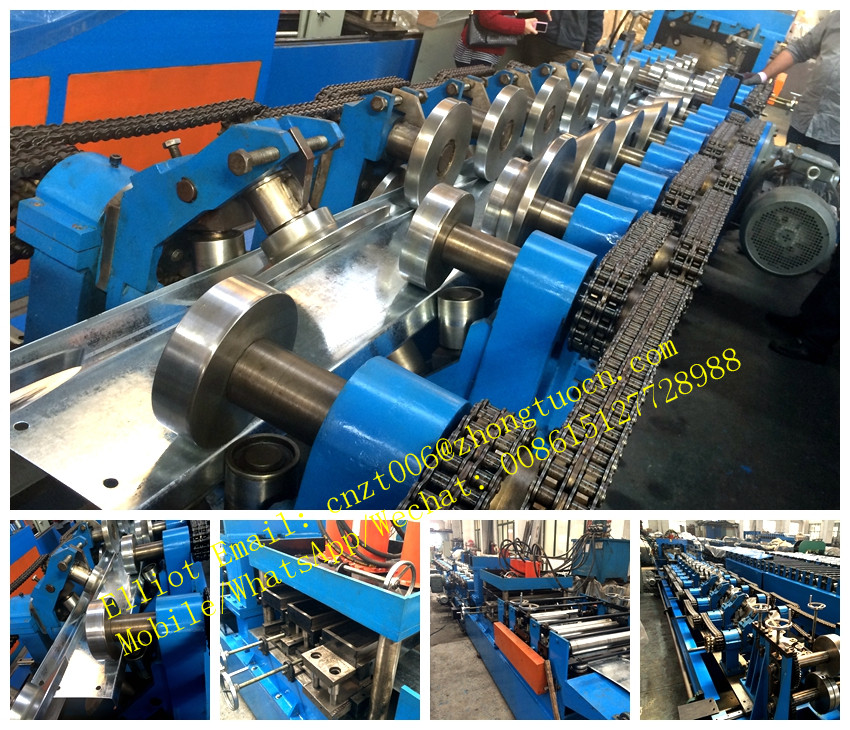

Some picture of Steel Frame Roll Forming Machine for you check:

steel frame roll forming machine

Steel Frame Roll Forming Machine Company Information:

Cangzhou Zhongtuo roll forming machinery co.ltd is a professional manufacturer and exporterwhich has its own factory and also cooperate with several production factories and associated nterprises, concerning with the design,development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold roll forming machine production base. All products comply with international quality standards and are greatly appreciated in variety of different markets throughout the world, such as Asia, Africa, Europe, South America, and Australia and so on.

our factory steel frame roll forming machine

Steel Frame Roll Forming Machine FAQ:

1. Does one machine can only produce one style panel profile ?

Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

2. Do you have after sales support ?

Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.

3. How to visit your company ?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.

4. What can you do if the machine broken ?

Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new pars replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.

5. Can you be responsible for transport ?

Yes, please tell me the destination port or address.we have rich experience in transport.

6. You are trade company or factory ?

We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.

7. Why your price is higher than others ?

As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.

8. How long the machine could be made ?

Normally speaking, Welded Pipe Making Machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

Looking for ideal Steel Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the ZT-006-44 Frame Roll Forming Machine are quality guaranteed. We are China Origin Factory of Steel Frame Roll Forming Machine. If you have any question, please feel free to contact us.
