Product Description

ZT-75 to 600 fully automatic cable tray rolling machine


ZT-75 to 600 fully automatic cable tray rolling machine produce d by us, is used for producing cable trays that are used in different kind of factories and buildings. We offering you to Cable Tray Machine that comprise of efficient Punching Press, Hydraulic Press, Electric Control penel and many other Equipment, which make it an ideal option for many. The Cable Tray Roll Forming Machine can Manufacring a both superiority and quantity cable trays in less time.The ZT-75 to 600 fully automatic cable tray rolling machine is composed by the following elements: hydraulic decoiler, leveling system, punching machine,coil feeder, mian rolling forming machine and receiving table.



cable tray machine main pictures


Working process of cable tray Roll Forming Machine:

Auto-de-coiler-----leveling----servo feeding----hole punching----roll forming --re-coiler

working process of cable tray roll forming machine

Zhongtuo cable tray roll forming machine is composed by the following elements:

de-coiler

Parameter: width of material: 225-1020mm thickness: 1-2mm;
Inner diameter of coil: φ508mm;inner expansion range: ф480-520 mm;
The maximal of Diameter: φ1500mm; The Maximal of loading: ≤5T
Motor power: 5.5kw frequency change control
Press material type: pneumatic press material
Feeding speed: 0-15m/min, adjustable

decoiler

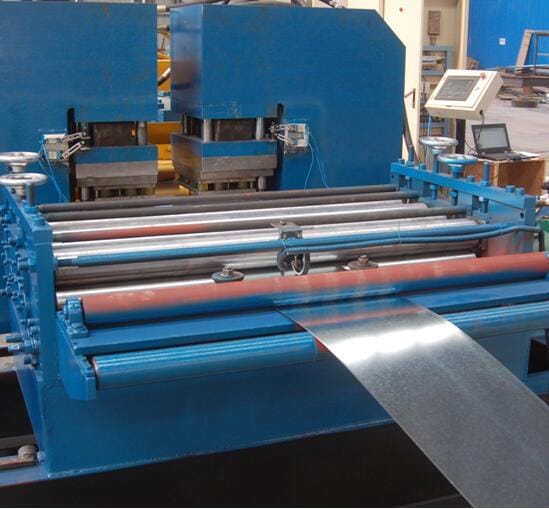

Leveling machine of fully automatic cable tray rolling machine

A: working roller: nine rollers type leveling machine
B: Feature of structure: after the quenching and tempering, chrome-plating processing, the rigidity, surface roughness of the roller etc. are all enhance greatly; It is composed by the clamping roller and the leveling roller, the clamping roller may the independent control, the leveler has one pair of horizontal guide roller and two pairs of vertical guider roller and easy to adjust by hand wheel. Between the leveler and the feeding device, there is optical sensor, sends out the feedback signal to the control system, the control system sends out the instruction to the frequency conversion motor to change speed, Achieves the uninterrupted level goal.

leveling machine


servo feeding machine

A: function: material feeding

b. Feature: Uses the servo motor-driven .Multistage type feeding: May input 10 group of different feeding lengths. The liquid crystal touching screen demonstrated is advantageous for the change, establishes various technical parameters. The auto-induction start system and the punch press linkage (control punch press start).

mian machine

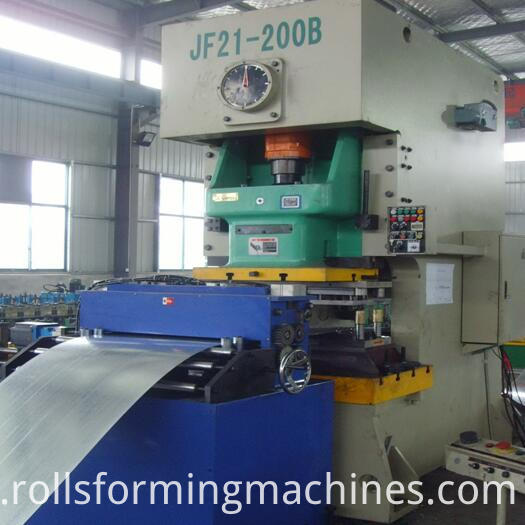

Punching press of

Model of punching press: JF21-120B

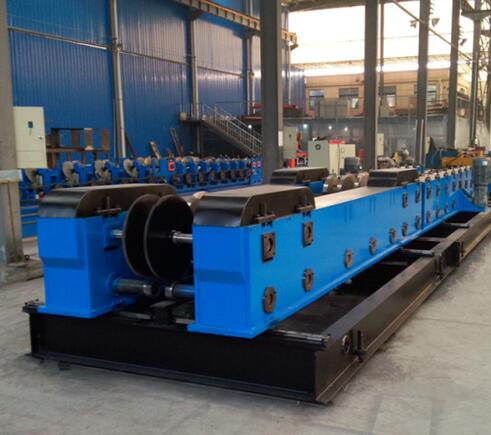

Roll forming part

Forming station: 14sets
Forming variety: bridge frame
The diameter of the roller axis: ¢85mm

punching



Hydraulic cutting

Cutting type: hydraulic cutting
Blade type: close type die cavity cutter
Hydraulic power:5.5kw
Material of blade: Cr12, quench treatment, hardness HRC56-58
Quantity: 9 (depend on customer request)

Run-out table

Structure: roller type with no power
Electric control system
A: Full line is controlled by PLC control system,touch screen operation to achieve the human and PLC interactive. The operator can monitor the setting program (programmable control) and modify the parameter to control the line. Also can check the running status, parameter and error indication etc..
B: Operation type: manual /auto two type switch. In manual position: can run the each part of the machine. In auto position: can run the full line. The emergency was stopped ensure the safe of the equipment and operator.

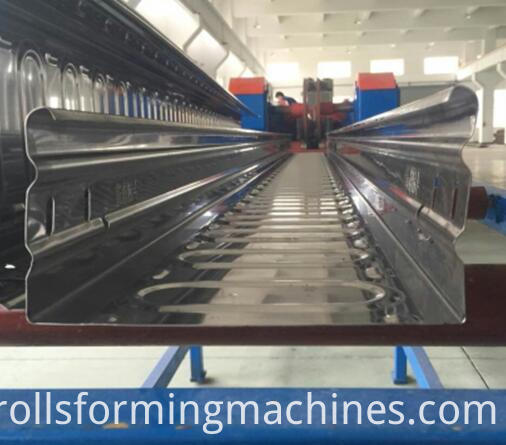

Cable tray made by Zhngtuo cable tray roll forming machine:

cable tray machine

Looking for ideal 75 to 600 Linear Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cable Tray Machine are quality guaranteed. We are China Origin Factory of Cable Tray Rolling Machine. If you have any question, please feel free to contact us.
