Zhongtuo Roll Forming Machinery Co., ltd

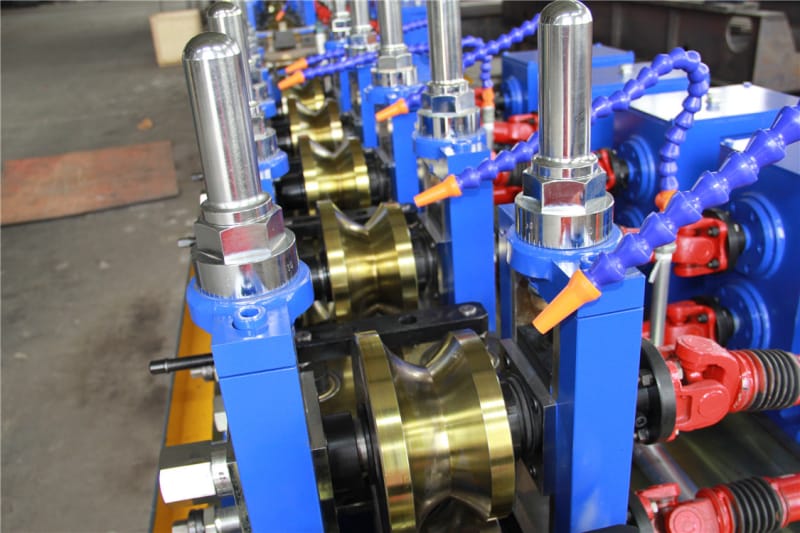

high frequency erw pipe tube rolling line
high frequency erw pipe tube rolling line
high frequency erw pipe tube rolling line
high frequency erw pipe tube rolling line

high frequency erw pipe tube rolling line

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now Add to Basket

Download:

Basic Info

    Model No.: zt-003

    Condition: New

    Customized: Customized

    Type: High Frequency Weld Pipe Mill Line

    Name: Tube Rolling Line

    Material: Carbon Steel, GI

    Model: HG 32 50 76 127

    Cutting: Flying Saw Tracking

    Voltage: As Required

    Roller: GCr12MoV

Additional Info

    Packaging: nude packaging

    Productivity: 20 sets per month

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 20 sets per month

    HS Code: 8455221000

    Port: Tianjin

Product Description

high frequency erw pipe tube rolling line

The tube rolling line is intended for manufacturing of round pipe of Φ16mm-Φ50mm with thickness of 0.5mm–2.5mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths.Finished product will be of round, square or rectangular pipe.


tube rolling line)

tube rolling line





erw pipe making machine

a) Steel Pipe Specification

Pipe diameter:Ø16–Ø50mm

Pipe Thickness: 0.5– 2.5mm

Square Pipe:14X14mm –40X40mm

Rectangle Pipe: 10X20mm –40X50mm

Pipe Thickness: 0.5–2.0mm

Pipe Length: 6-9m

Length Tolerance:0-3mm

b) Steel Tape Specification

Material:Low Carbon steel (δb≤500Mpa, δs≤235Mpa)

Steel Tape:

Inner diameter: Φ580-Φ610mm

Outer diameter: Φ900-1500mm

Strip steel width: 60mm-200mm

Strip steel thickness0.5mm-2.5mm

The maximum weight:3.0 tons

c) Electricity

Dynamic power: AC380V±10%, 3phases, 50Hz±10%

Control Power:AC220V±10%, one phase, 50Hz ±10%

Electric installed capacity: appro 450KW

e) Cooling water

Reservoir for High Frequency equipment:15 m³, one set

Reservoir for circulating cooling water:15 m³, one set

f) Compressed air

Pressure:0.4Mpa

Flow:0.5m3/h

g) Line speed:30-90m/min

more details about tube rolling lineerw pipe making machine

erw pipe making machine

high frequency tube mill

high frequency tube mill


high frequency tube millwhy choose us ?

1. We are professional manufacturer, so we can offer better price and after-sale service and shorter delivery time.

2. We have strong design & technical ability, we can design and manufacture as customer's requirement.

3. Our factory has been approved ISO 9001 certificate.

4. We have much experience for installation and training experience overseas.

5. We have successfully exported our machines to more than 90 countries, We all get good feedback.

6. We provide a free two years warranty for all our items.

7. OEM brand.



FAQ:

1.How to get a quotation of tube rolling line?

Give me the diameters and thickness for the pipe .

Other spicific requirements is welcome,such as the speed,power and voltage you want.

2. Terms of payment:

30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.

4. What is your after-sale service?


tube rolling line's warranty period is 24 months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the equipment.
5
. How to visit your company?

a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.

b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.


If you want to know more ,please copy and paste the link into your web browser.

http://www.steelpipemachines.comwelding tube machine

Looking for ideal Tube Rolling Line Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Erw Pipe Making Machine are quality guaranteed. We are China Origin Factory of High Frequency Tube Mill. If you have any question, please feel free to contact us.
