Metal 0.3 to 4mm Servo cutting machine

    Unit Price: USD 20000 - 50000 / Set/Sets
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
Additional Info

Packaging: nude packing

Productivity: 30 set

Brand: Zhongtuo

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: CE, ISO, SGS

Product Description

Cut to length machine for thickness from 0.28-4.0×1700 mm

Brief production:

This Cut To Length Line could be used to process thickness of 0.28 to 4 mm material within the width 1700mm. The cut to length machine is composed by the following elements: Decoiler, first leveling system, coil feeding system, second time leveling, steering system, shearing system, coil transportation belt and automatic stacker.

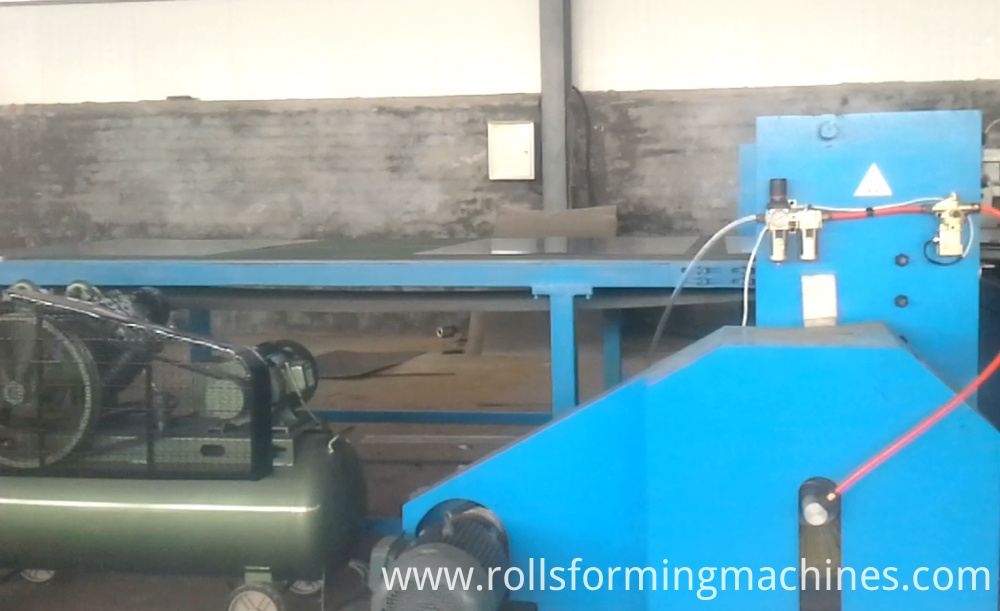

cut to length 65

Production line parameters:

Supported Coil Sheet

0.28-4.0mm

Coil width

500-1500

Coil inner ID

Ø508.620

Max coil weight

12T

Accuracy

In length: ±0.5 within 2000mm length
In Diagonal: (
±0.5 within 2000mm length)

Shearing length

500-3000

Machine height

1150

Working speed

2000mm per minutes

Working direction

From left to right

Basic introduction of each element:

1. Loading car of Decoiler

Structure:

It is mainly composed by the following elements: loading car and frame, cylinder block, cylinder and walking system. When using, please place the coil at the top of the loading car, then the cylinder will up to uncoiler center, r, start walking motor to decoiler center position, uncoiler will make the coil tension and then start to work.

decoiler of cut to length

2. 12 Ton Decoiler

Structure:

This machine is composed by a single cantilever and hydraulic expansion type uncoiler, by the spindle part, transmission part.

First leveling system

Structure:

The leveling system is composed by two Traction shafts, 15 rollers leveling , seven upper and eight rollers down. It is mainly for giving the power of coil and take coil to machine by feeding. The running speed is adjustable. Drive reducer of variable frequency speed is controlled by motor. Roller surface will be plating.

first leveling system of cut to length machine

3. Transitional bridge:

Transitional bridge is something like bridge; it is used for transmission the coil from the first leveling system to the second accuracy leveling system. When coil comes from the first leveling, the bridge will up in the same level of the input sheet. When you let the coil input the storage pit, the bridge will be down. Between the first leveling systems to second leveling system, there will be storage pit which is not necessary. If has, the working speed will be very high. Without storage pit, the machine working speed will be quite lower.

4. Servo sizing system and second leveling system.

Introduction:

This machine takes sever rollers as second leveling and sizing system. When the coil comes to the leveling machine, the rollers will press forward and back to make it level and straight. For different thickness material, you need to adjust the spacer between rollers to make it accurate. We will add ruler size if you need. By adjusting the hand wheel drive worm, gear drive and screw rod to lift the upper roller.

second leveling system

5. 4×1600mm high speed shearing system.

Structure:

The shearing system is composed by the following elements: left and right bracket, connecting rod, upper and lower turret, working table, drive motor and other parts. Or we can customize according to customer idea if reasonable. The cutter will move from down to up and then cutting the material.

6. Servo feeding coil platform

The feeding platform adopts the frame as the structural length 3000mm and the integrated belt structure without injury

transmisson table of cut to length machine

7. Automatic stacker

Structure:

This stacker is mainly for making the sheet arranged orderly. The iron plate is powered by prenematic power through moving cylinder propulsion sheet neatly stacking, by transverse frame, longitudinal baffle.

The vertical baffle plate moves by power of electric adjustment according to the different length. Palletizing machines are mainly composed of motor and roller cylinder palletizing walking. The usage is for making the blank sheet stacking neat. When motor starts, the stacker will move the coil to another lower table for easy package and move out.

runout table
