0.30-2.50х1600 Servo PLC Control Cut to Length production line

Brief introduction:

This production line mainly used to process thickness within 0.30 - 2.50 mm, width within 500-1600 mm various types material.

A: Basic parameters of this machine:

Material thickness: 0.30 -2.50 mm

Coil width: 500--1600mm

Inner diameter of coil: φ 450 to 650mm

Max coil weight: 15 Ton

Tolerance:±0.5mm within length 2000mm, diagonal ±0.5mm within 2000mm.

Shearing length: 400-4000mm

Production working height: 1150mm

Working speed with Storage pit: 60m/min

Note: production line running direction (in the operating side) from left to right (the full length of the board is not more than 23 meters). And the storage pit recommended size:5 meter lengthx2 meter width x 4 meter depth

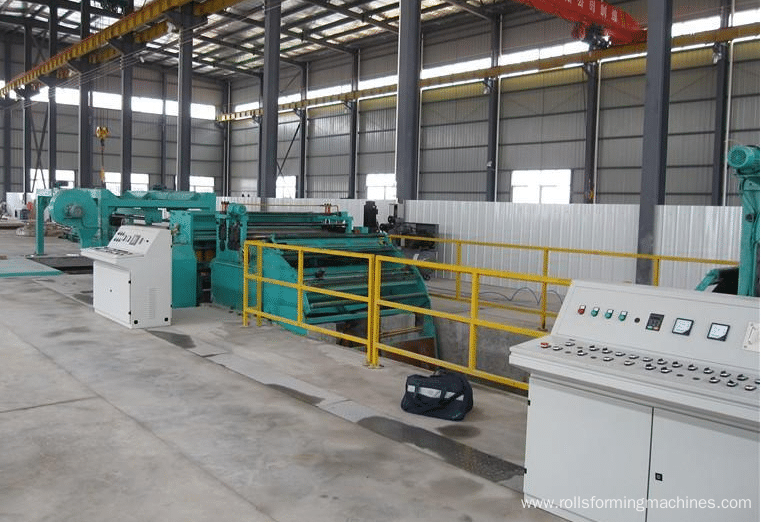

cut to length production line 3

B: Basic elements of cut to length machine


Loading car




Precise straightening and leveling machine


Middle bridge


Deviation correcting device


Servo fixed size machine


High speed shearing system


Feeding coil system


Automatic stocker


Runout table and package system


Hydraulic system


Pneumatic device


PLC Control system

C.Brief introduction of some elements

15 Ton loading car


Mainly this device is composed by the car plate, cylinder block, and cylinder and walking system. When working, the plate on the cylinder at the top of the unwinding wheel, oil cylinder, the plate until the top of the uncoiled, spindle center, start walking motor to Decoiler center position, uncoiled will steel coil tensioning. The car goes along the track to return.


(1)Coil width:1600mm

(2)Coil weight:15T

(3)160mm diameter cylinder stroke bore, stroke 600 mm

(4) Walking motor power: 3 KW - if they have more power ?

(5) Motor manufacturer we change to semen but price will be higher
(6) Reducer: 15 Ton

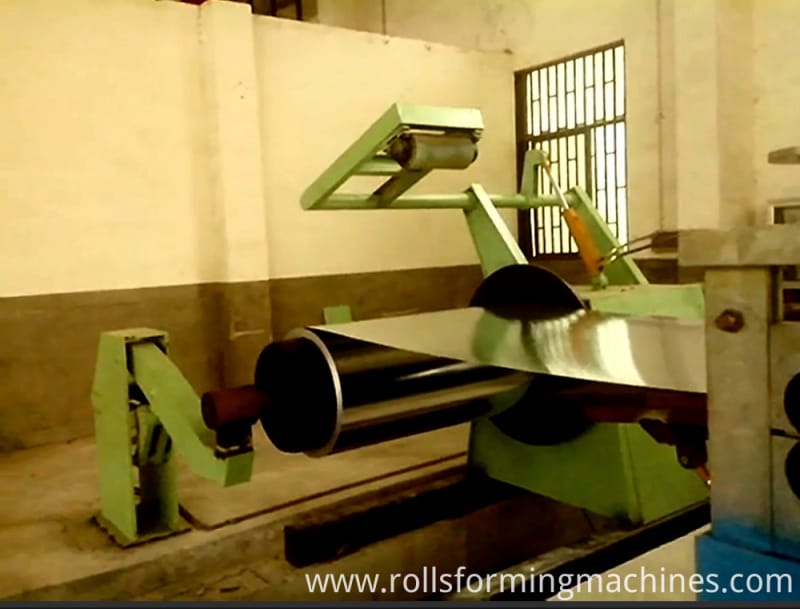

1. Structure

This machine is a single cantilever hydraulic expansion type uncoiler, the spindle part, transmission part, support the composition

(1) part of the spindle is the core part of the machine, four fan block, through the T shaped oblique piece and the sliding sleeve is connected, and at the same time set in the hollow spindle and core connected with a sliding sleeve, cylinder to control the core axis motion can achieve four fan block increase at the same time and contraction. When the fan block contraction to roll up, when the fan will open up block up tight finish rewinding coil.

(2) In the first part of the roller traction machine front. Pressing arm through under the control of the cylinder can drive the cantilever pressure and lifting, when feeding, pressure actuated pressure and the steel coil is pressed can prevent loose coil, which is convenient for feeding.

(3) transmission part in the crankcase, a variable frequency motor through a speed reducer, reel spindle rotation, and also achieve positive and negative uncoiling and winding through the sprocket chain driven, adjustable speed.


3. Precise straightening and leveling machine

The school flat machine with gear box universal joint drive and initiative, sheet sent enrolling flat and intermediate after the positive and negative direction of repeated deformation reaches the purpose of leveling, mainly is composed of a machine frame part, working roll part, lifting part and the transmission part. The frame adopts steel plate welded box type structure, the working roll part, the lifting part and the frame part are organically combined, the shape is novel, the structure is reasonable, and the installation and maintenance is convenient. Work roll for the front of the roller, the sub section of the universal joint drive. Upper and lower active, different material plate to achieve the appropriate school level. Movements of the role is to enhance the row of work roll, the spacing between the adjustment and the hand wheel worm gear rod generation movable wire rod to achieve the goal of lifting the upper row of rollers. Drive by the motor, reducer.

1.Main parameters

(1)Leveling material thickness: 0.30 -2.50 mm


(3)Leveling shaft:φ110mm 40Cr Medium frequency quenching 50 – 58 degree.

(4)Main motor: 11KW - Semen

(5)Reducer:155 type worm gear reducer Guomang , this brand ?

Intermediate bridge

The device is an auxiliary equipment of the production line, which is mainly composed of a transitional bridge, a left bracket and a base. Its role is the plate from the first entering the pit, the bridge rises plate into a parallel first machine; bridge lifting is controlled by a cylinder.

Steering device

1, structure

The device is an auxiliary equipment of the production line, which is mainly composed of three transition rollers, the left and right frame, the guide roller and the base. The device not only has a steel plate and pulled out of the pit will no longer cause bending deformation function, installation on the left and the right inner side of the machine frame of the two pairs of guide roll, can by hand wheel, a screw rod to move horizontally, control the running position of the plate.

2.Main parameters:

(1)Guiding width:1600mm

(2)Roller diameter:φ70mm

side guid roller

3. Roll servo sizing machine


Usage: This machine is mainly used for setting size. This part is mainly composed by the following elements: traction axis and fixed axis, frame, the base, the transmission part, the servo motor and special gear reducer.

Main parameters;

(1) Fixed roller diameter=120mm

(2) Traction machine=50mm: 55% 40Cr frequency quenching surface hard chromium plating and polyurethane rubber shaft.

(2)Fixed roller length:1700mm

(3)Servo motor: 7.5kw Shandong zibo
(4)Reducer:Servo reducer

second leveling system

Shearing system (high speed cutting machine)


Mainly by the left and right bracket, connecting rod, upper and lower turret, working table, drive motor and other parts of the composition. Can also be a user can also be based on user requirements.

Main parameters:

(1) The maximum shear thickness: 3mm

(2) Max width: 1600mm

(3) Motor power: 7.5KW Shangdong Zibo?

(4) Blade material: 9CrSi, servo coil feeding system.

1. Structure

The feeding platform adopts length 3000mm frame and uses belt with the integrated structure without injury of the steel plate.

2.Main parameter

The machine adopts frequency converter to adjust the synchronous operation.

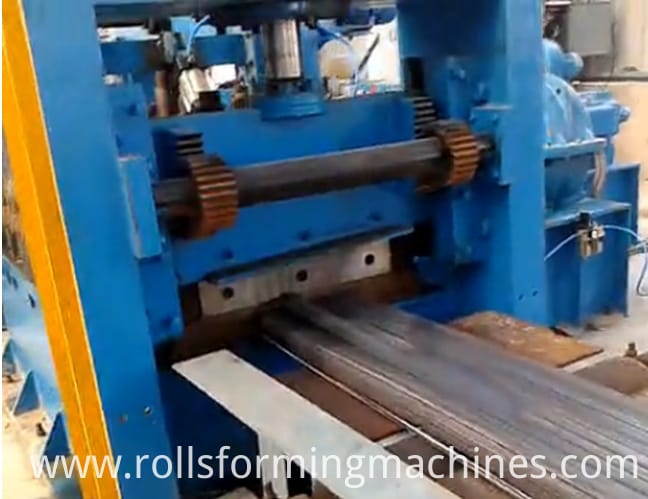

shearing system

Automatically stacking machine

1. Structure

For the blanking machine system, it is mainly for making the sheet neat and clean and made by transverse frame and, vertical baffle. For fitting different length of sheet, it adjusted range within 500-3000mm. The baffle plate also could be adjusted according to the coil width. Stacking machine adopts cylinder to adjust, palletizing machines are mainly composed of motor and roller cylinder palletizing walking. Its function lies in the blank sheet stacking neat, start motor will be stacking neat sheet sent blanking stage to the packing stage, the device with a material form.

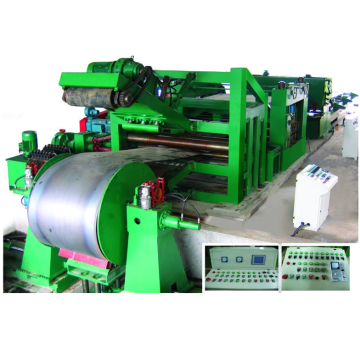

cut to length production line 1

Hydraulic system

The hydraulic system is composed by the following elements: hydraulic station, a fuel tank capacity 300L, a solenoid valve, oil pump motor.

Pneumatic system

This part is mainly used for automatically stacker (for the gas, the customer needs to buy locally.)

Electric control and automation

This production line adopts 380V, 50Hz power frequency power supply, which is controlled by the control cabinet.

Main control system is composed by servo motor, touch screen, and reducer. By the screen, you can input parameters and those parameters will be processed by PLC and then let the machine work accurately. The system has high accuracy, simple operation, strong visual performance and low failure rate.
