Cut to length production line as metal processing

    Unit Price: USD 100000 - 50000 / Set/Sets
    Payment Type: L/C,T/T,D/P,Western Union
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 60 Days
Additional Info

Packaging: nude packing

Productivity: 60m/min

Brand: Zhongtuo

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: CE, ISO, SGS

Product Description

0.3mm-3.0x1500mm cut to length production line

Brief introduction:

This cut to length production line mainly is used for thickness from 0.5 to 3.0mm. coil width from 500 to 1500. And the machine working speed could reach 60m/min. In the

PLC, you can specifiy the cutting length.

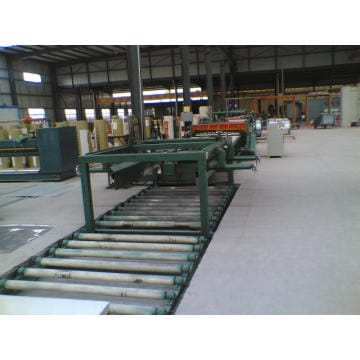

cut to length machine
Main parameters of the cut to length production line
Specification 0.3-3.0×1500mm
Supported width 500-1500mm
Supported material thickness 0.3-3.0mm (cold rolled material and hot rolled material)
Supported Max weight 12T
Coil inner diameter 508-610mm
Outside diameter ≤1500mm
Working speed 24-26m/min
Cutting frequency 12-13 pieces per minutes (standard 1000×2000mm)
Length range 500-4000mm
Length tolerance ±0.5/mm
Diagonal accuracy ±0.5/mm
Total power ≈40kw(normally speaking is 37kw)
Decoiler direction From the right to left facing the control PLC
Size ≈21m×5.7m
Power Supply 380v/50hz/3 Phrase

Main elements of this cut to length production line:
1. Hydraulic single arm decoiler with loading car
2. Leveling system of first time
3. Second time leveling for much accurately leveling
4. Rectifying device
5. Main cut to length machine for(4x2000mm)
6. Electrical controlling system
7. Conveyer belt
8. Hydraulic station
9. Hydraulic stocker full automatically type 3300mm
10. Runout table 3000mm


Hydraulic single arm decoiler with loading car
S/N Item Parameters
1 Main shaft This is the core part of the decoiler. It has four fan part, By adjusting the fan expansion or not, we can finish loading coil to big or small part.
2 Position roller at back This shaft or roll is used for positioning the coil and make it steady when it works. Meanwhile it also fixes coil in case of loosing.
3 Transmission Transmission part in external frame, the motor, reducer through the chain driven reel spindle rotation, and also achieve positive and negative uncoiling and coiling.
4 ID ¢508-610-mm
5 Max loading weight 12T

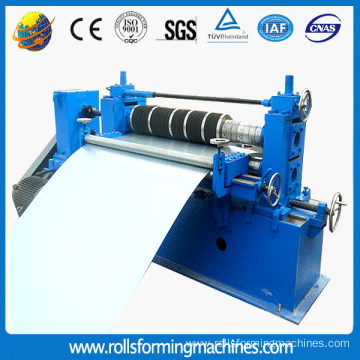

leveling and feeding system
Seven rollers leveling system
S/N Item Parameters
1 Leveling roller number 7
2 Leveling roller diameter 120mm
3 Roller material Hardness: 45Cr by HRC58-62 (straightening quenching, grinding.)
4 Main power 5.5kw
5 Bearing Takes rolling bearing mode:22209
6 Power system Motor drive, driven by the speed reducer and then give power to gear

15. roller leveling system for second time accurately leveling
S/N Item Parameters
1 Leveling roller number 15 stations
2 Roller diameter 120mm
3 Roller material Hardness: 45Cr by HRC58-62 (straightening quenching, grinding.)
4 Main power 15 kw
5 Double type. Fixed size roller pack.
6 Leveling roller Roller surface hardness of HRC58-62, surface finishing Ra1.6mm. On two rows of rollers, the upper work roller move vertical by lifting motor. The work roller of the bearing uses rolling bearing.
7 By adjusting the iron plate to adjust the input coil width

Main cut to length part
Mainly elements of this part: left and right bracket, connecting rod, upper and lower turret, working table, drive motor and others
S/N Item Parameters
1 Max cutting thickness 4mm
2 Cutting width 2000mm
3 Main material Luo Si
4 Main power 5.5KW
5 Conveyor belt Belt length 7500mm, width 1450mm, motor 2.2kw.
6 Hydraulic station Composed by electromagnetic valve and an oil pump motor

Fully automatic stocker
S/N Item Parameter
1 Height 2100mm
2 Length 3300mm
3 Width 2200mm
4 Loading weight 5000kg
automatic stocker

Electrical controlling system
This production line adopts 380V, 50HZ power frequency power supply, which is controlled by the control cabinet. Composed by inverter, PLC, and the system is finished by the frequency conversion motor.
S/N Item Parameter
1 PLC Mitsubishi
2 Frequency converter Huichuang
3 Text displayer China brand
4 Circuit breaker, contactor, button, , CHINT, Schneider
5 Free maintenance and replacement parts within the first year(except for or natural disasters). And we will provide the whole life tech support
6 Price FOB Tianjin 39300 USD


Looking for ideal Metal Processing Element Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cut Metal to Pieces are quality guaranteed. We are China Origin Factory of Cut Sheet to Specified Length. If you have any question, please feel free to contact us.
