Coil processing equipments cut to length lines

    Unit Price: USD 20000 - 50000 / Set/Sets
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
Additional Info

Packaging: nude packing

Productivity: 30 set

Brand: Zhongtuo

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: CE, ISO, SGS

Product Description

Coil processing equipments: new and used cut to length lines

Brief introduction of cut to length production line:

Coil processing equipments new and used cut to length lines production line mainly used to process thickness within 0.30 - 2.50 mm, width within 500-1600 mm various types material.

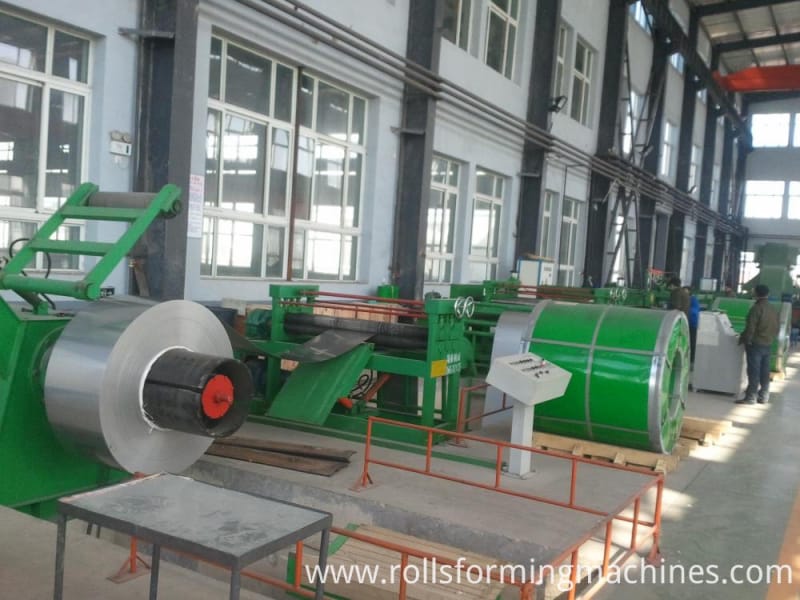

cut to length production line

A: Basic parameters of this machine:

Tolerance:±0.5mm within length 2000mm, diagonal ±0.5mm within 2000mm.

Shearing length: 400-4000mm

Production working height: 1150mm
Working speed with Storage pit: 60m/min

B: Basic elements of cut to length machine


Loading car




Precise straightening and leveling machine


Middle bridge


Deviation correcting device


Servo fixed size machine


High speed shearing system


Feeding coil system


Automatic stocker


Runout table and package system


Hydraulic system


Pneumatic device


PLC Control system

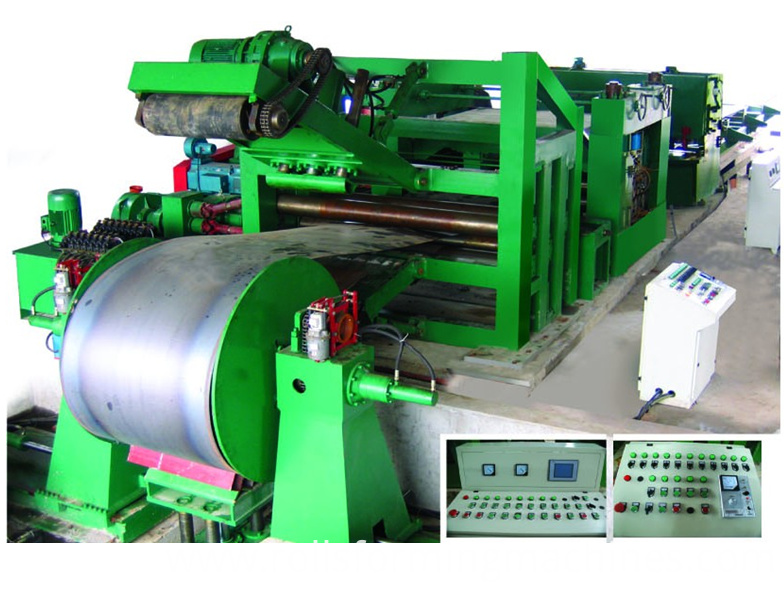

cut to length machine
3. Precise straightening and leveling machine

The school flat machine with gear box universal joint drive and initiative, sheet sent enrolling flat and intermediate after the positive and negative direction of repeated deformation reaches the purpose of leveling, mainly is composed of a machine frame part, working roll part, lifting part and the transmission part.

Intermediate bridge

The device is an auxiliary equipment of the production line, which is mainly composed of a transitional bridge, a left bracket and a base.

Steering device

1, structure

The device is an auxiliary equipment of the production line, which is mainly composed of three transition rollers, the left and right frame, the guide roller and the base. The device not only has a steel plate and pulled out of the pit will no longer cause bending deformation function, installation on the left and the right inner side of the machine frame of the two pairs of guide roll, can by hand wheel, a screw rod to move horizontally, control the running position of the plate.

2.Main parameters:

(1)Guiding width:1600mm

(2)Roller diameter:φ70mm

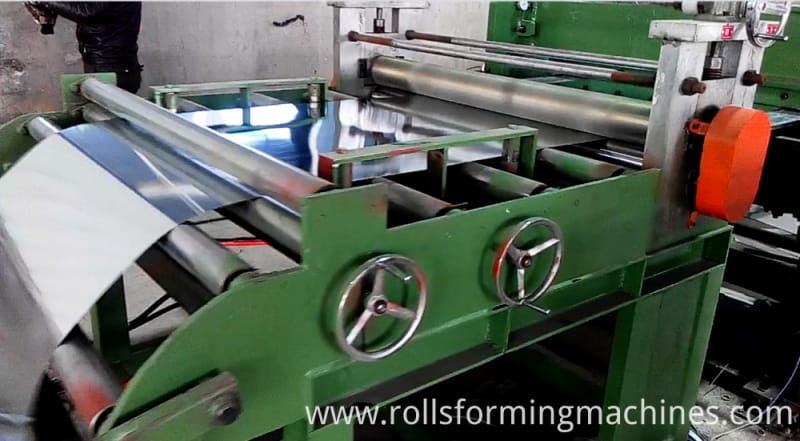

side guid roller

3. Roll servo sizing machine

Main parameters;

(1) Fixed roller diameter=120mm

(2) Traction machine=50mm: 55% 40Cr frequency quenching surface hard chromium plating and polyurethane rubber shaft.

(2)Fixed roller length:1700mm

(3)Servo motor: 7.5kw Shandong zibo
(4)Reducer:Servo reducer

second leveling system

Shearing system (high speed cutting machine)

(1) The maximum shear thickness: 3mm

(2) Max width: 1600mm

(3) Motor power: 7.5KW Shangdong Zibo?

(4) Blade material: 9CrSi, servo coil feeding system.

Looking for ideal Used Cut To Length Line Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the New Cut to Length are quality guaranteed. We are China Origin Factory of Cutting Processing Line. If you have any question, please feel free to contact us.
