Zhongtuo Roll Forming Machinery Co., ltd

Simulation brick pattern metal embossing production line
Simulation brick pattern metal embossing production line
Simulation brick pattern metal embossing production line
Simulation brick pattern metal embossing production line
Simulation brick pattern metal embossing production line

Simulation brick pattern metal embossing production line

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now Add to Basket

Basic Info

    Model No.: zt-010

    Length Of The Main Part: 9500-1650-1500mm

    Weight Of Main Part: 6.8 T

    Voltage: As Customer Required

    Roller Fixer: Middle Plate Welded

    Frame: Guide Pillar And The Thickness Is 50mm

    Frame Thickness: 25mm

    Drive Mode: Gear

    Material Of Rollers: 45# Steel,surface Hard Chromium Plating

    Material Of Shafts: 45# Steel

Additional Info

    Productivity: 8-22m/min

    Brand: ZhongTuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: ISO9001, CE

    Port: TIANJIN

Product Description


Simulation brick pattern metal embossing production line

Simulation brick pattern metal embossing production line can help you do the embossing on metal, aluminum and other material like brick made the wall. The embossed metal sheet could be used on the wall Furnishings or building decoration. Here are some similar pictures for your reference:

1

There are more patterns I can not list all of them here, if you need to know, please contact us at any time.

For the metal embossed machine to produce those embossed sheet, here are some main elements and parameters for your reference:

2


5T hydraulic Decoiler

Max. Load Capacity: 5T

Max. Coil width: 1000mm

Coil Internal Diameter: 500mm

400NM magnetic with 1:6 reducer tension control the release

wedge Segments To hydraulic Expansion

spindle expansion :475-515mm With coil location manual control device

Note: Here you also can choose the Manual Decoiler, price is be more lower but you have to load the coil yourself by forklift. And the machine working speed and efficiency will be quite lower too.

2

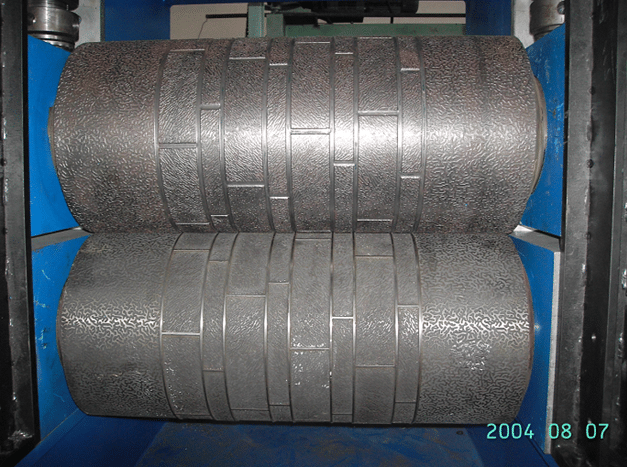

(2) Embossing Machine (1 sets )

Embossing roller: ø440*1150

Material of embossing roller:60CrMnMo

Pattern laser engraving as customer`s sample

Hardness of embossing roller surface: HRC 58~62

Depth of hardness surface:5-10mm

Bearing: Torrington spherical roller bearings ,TWB 3003136

Embossing thickness adjusted through the dial.

Bearing box: 400*400*160mm

Driving: 11kw AC motor,reducer:BWED53-17*11-11KW 4P

Speed : 1-10m/min

Pressure mode: hydraulic system, ø150 oil cylinder 2pcs

Closed shields, safety devices. Emergency stop switch

3



FAQ:

1.Does one Simulation brick pattern metal embossing production line can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

Looking for ideal Simulation brick pattern metal embossing production line manufacturer & supplier ? We have a wide selection at great prices to help you get the target product. If you have any question, please contact us.
