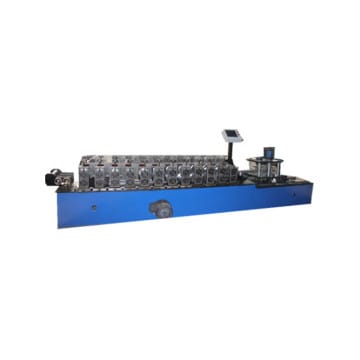

Struct channel of cable tray making machine
Struct channel of cable tray making machine
Struct channel of cable tray making machine
Struct channel of cable tray making machine
Struct channel of cable tray making machine

Struct channel of cable tray making machine

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: zt-010

    Length Of The Main Part: 9500-1650-1500mm

    Weight Of Main Part: 6.8 T

    Voltage: As Customer Required

    Roller Fixer: Middle Plate Welded

    Frame: Guide Pillar And The Thickness Is 50mm

    Frame Thickness: 25mm

    Drive Mode: Gear

    Material Of Rollers: 45# Steel,surface Hard Chromium Plating

    Material Of Shafts: 45# Steel

Additional Info

    Productivity: 8-22m/min

    Brand: ZhongTuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: ISO9001, CE

    Port: TIANJIN

Product Description

What is the Struct Channel?

It is used as cable tray bracket, it can be used for the installation of horizontal and vertical trays, and to support cable trays fixed on the wall, column and floor to stabilize the cable tray system.

Here is one picture showing how to use it.


In this article, we are specailly about the struct channel making machine, it has the following sizes popular in the market.


Act as pipe bracket, it refers to a bracket used to support a pipe, usually mounted on a building or installed in a pipe gallery.
Act as anti-seismic brackets, it is a anti-seismic measures installed on electromechanical piping equipment. The installation of anti-seismic bracket can avoid and reduce damage to the electromechanical equipment in the building caused by earthquakes, to reduce the harm of earthquakes and protect people's lives and property.

Based on the knowing of its function, we design the machine like the followings:


Struct channel of Cable Tray Making Machine parameters for your reference:


CR coil, GI coil


41*21mm; 41*41mm; 41*62mm; 41*82mm



Feeding width






Size tolerance


Cutting way

Non-stop cutting



Roller material


Cut blade material



25000*1600*1500mm (L*W*H)

Total weight

about 20tons

Struct channel of cable tray making machine is different as others as the following parts

1.It gives options of making many sizes by adjustment of the spacer. As to the cutting baldes you can also do not need to change, we can use the disk shearing.

2.As to the punching, we gave many options like the online punching by the hydraulic station or by the big punching machine.

3.As the main rolling machine part, you can choose the gearbox tranmission, chain or others.


Here are some pictures of showing how to use Struct Channel in our daily life.



1.Does one Struct channel of cable tray making machine can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

Looking for ideal Struct channel of cable tray making machine manufacturer & supplier ? We have a wide selection at great prices to help you get the target product. If you have any question, please contact us.


Looking for ideal Struct Channel Line Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cable Tray Making are quality guaranteed. We are China Origin Factory of Popular Stainless Products. If you have any question, please feel free to contact us.

Product Categories : Cable Tray Roll Forming Machine

Email to this supplier

Related Products List
