Cable Tray Roll Forming Machine with Best Price

    Payment Type: L/C,T/T
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
Basic Info

Model No.: ZT-002

Power(W): 22+5.5KW

Voltage: Customized

Dimension: 7.5m*1.4m*1.3m

Punching: Hydraulic Pre-punching Before Forming

Material Thickness: 0.8-1.5 Mm

Working Speed: 10-15 M/min

Additional Info

Productivity: 10-15 m/min

Brand: ZhongTuo

Transportation: Ocean

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: ISO9001, CE

Port: TIANJIN

Product Description

Heavy Duty cable tray manufacturing machine is a kind of equipment for making cable tray by various material. In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction.

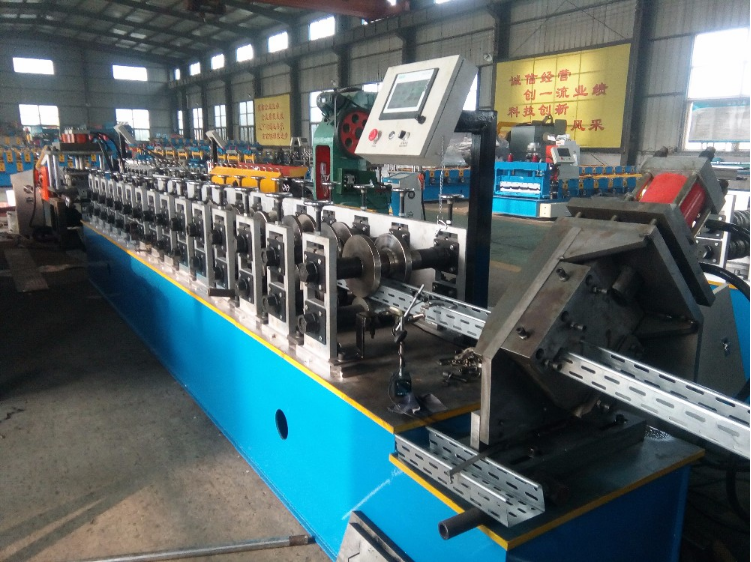

cable tray roll forming machine

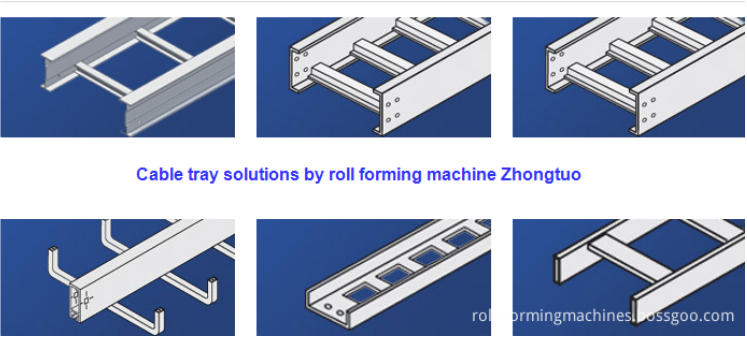

cable tray solutions

The followings are details of Cable Tray Roll Forming Machine:

decoiler

drive: manual

Inner Diameter: 450-550mm

Outer Diameter: max 1500mm

Max Coil width: 1250mm

Carrying capacity: 3 T


decoiler
punching part

punching part.

Hydraulic punching
Material of rollers: GCr12MoV
Tolerance: ±2mm

main forming machine

Material of shafts: 400# I-beam
Transmission method: gear
shaft material: No. 45 steel quenching and tempering treatment,
Wheel material: quenching process of GCr15 bearing steel HRC58-60
Roller: 20 stations.
main motor power: 22kw
Forming speed: 12M per minute.

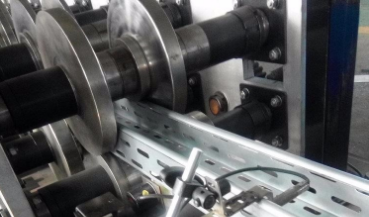

main part of cable tray machine
hydraulic shearing device

Hydraulic sheet shearing device

Hydraulic power:15 kw
The whole production line adopt industrial computer(PLC , touch screen, automatically adjusting)


control device


PLC Control : Speed regulation control cabinet
language: As required
Touch screen: Delta
Function: Automatic length and quantity measurement


PLC
hydraulic station

hydraulic station

Hydraulic oil: 46#
Hydraulic power: 5.5kw
Cutting length : As required
feasure: no distorting or wasting. High level safety factor




Looking for ideal Cable Tray Machine at Best Price Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cable Tray Roll Forming Machine are quality guaranteed. We are China Origin Factory of Steel Cable Tray Making Machine. If you have any question, please feel free to contact us.
