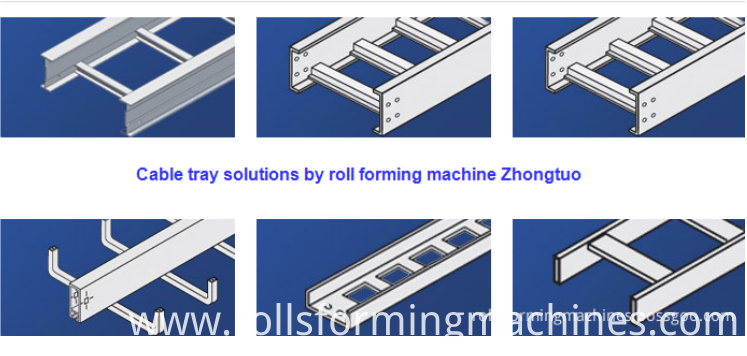

Automatic Galvanized Cable Tray Cold Roll Forming Machine has light duty and heavy duty type. And it is also has linear sizes and fixed sizes, with punching and without punching. It is all depends on your requirements. Today i will introduce heavy duty type for you. Heavy Duty cable tray roll former is a kind of equipment for making cable tray by various material. In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction.
The followings are details of cable tray cold roll forming machine:
Inner Diameter: 450-550mm
Outer Diameter: max 1500mm
Max Coil width: 1250mm
Carrying capacity: 3 T
Material of rollers: GCr12MoV

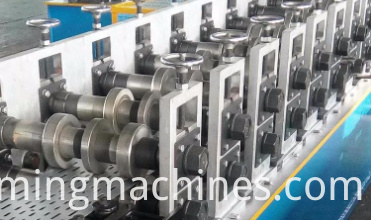

Main forming machine
Material of shafts: 400# I-beam
Transmission method: gear
shaft material: No. 45 steel quenching and tempering treatment,
Wheel material: quenching process of GCr15 bearing steel HRC58-60

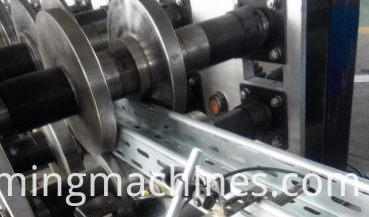

Roller: 20 stations.
main motor power: 22kw
Forming speed: 12M per minute.
Hydraulic sheet shearing device
Hydraulic power:15 kw

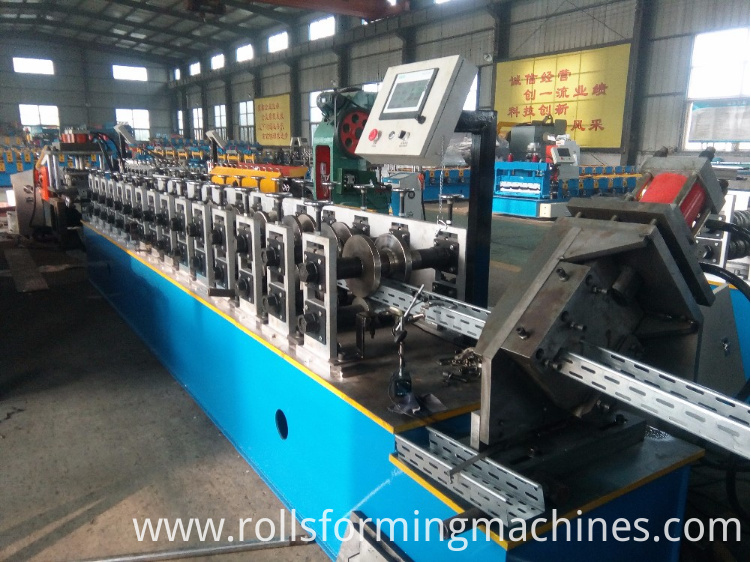

The whole production line adopt industrial computer(PLC , touch screen, automatically adjusting)
PLC Control : Speed regulation control cabinet
language: As required
Touch screen: Delta
Function: Automatic length and quantity measurement

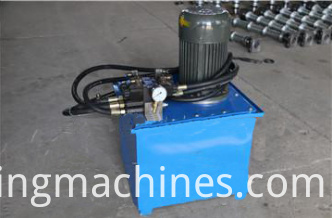

Hydraulic oil: 46#
Hydraulic power: 5.5kw
Cutting length : As required
feasure: no distorting or wasting. High level safety factor
Looking for ideal Automatic Cable Tray Roll Forming Machine
Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Galvanized Cable Tray Cold Forming Machine are quality guaranteed. We are China Origin Factory of Cable Tray Cold Roll Forming Machine. If you have any question, please feel free to contact us.
