Zhongtuo Roll Forming Machinery Co., ltd

Cable Tray Punching Machine
Cable Tray Punching Machine
Cable Tray Punching Machine
Cable Tray Punching Machine
Cable Tray Punching Machine

Cable Tray Punching Machine

Payment Type: L/C,T/T,D/P
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: ZT-002

    Voltage: Customized

    Punching: Hydraulic Pre-punching Before Forming

    Material Thickness: 0.8-1.5 Mm

    Working Speed: 10-15 M/min

    Power(W): 22+5.5 KW

    Dimension: 7.5 M*1.4 M*1.3 M

    Brand Name: Zhongtuo

Additional Info

    Productivity: 10-15 m/min

    Brand: ZhongTuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: ISO9001, CE

    Port: TIANJIN

Product Description

Cable tray punching machine has light duty and heavy duty type. And it is also has linear sizes and fixed sizes, with punching and without punching. It is all depends on your requirements. Today i will introduce heavy duty type for you. Heavy Duty cable tray roll former is a kind of equipment for making cable tray by various material. In the electrical wiring of buildings, a cable tray system is used to support insulated electric cables used for power distribution and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction.

cable tray roll forming machine

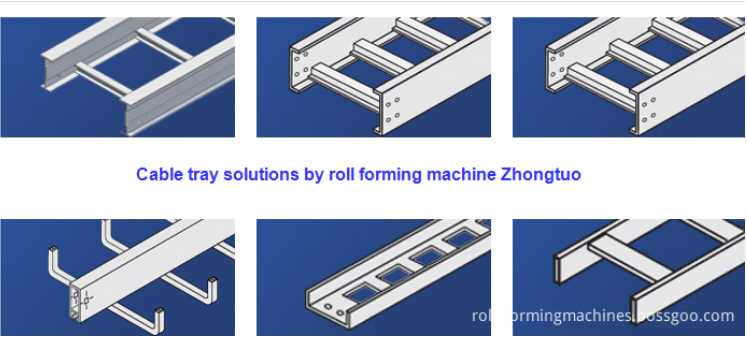

cable tray solutions

The followings are details of Cable Tray Making Machine:


drive: manual

Inner Diameter: 450-550mm

Outer Diameter: max 1500mm

Max Coil width: 1250mm

Carrying capacity: 3 T

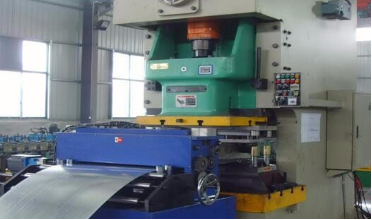

punching part

punching part.

Hydraulic punching
Material of rollers: GCr12MoV
Tolerance: ±2mm

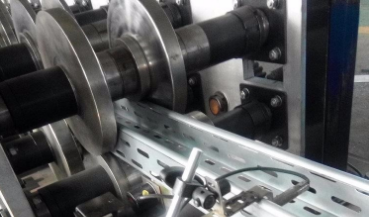

main forming machine

Material of shafts: 400# I-beam
Transmission method: gear
shaft material: No. 45 steel quenching and tempering treatment,
Wheel material: quenching process of GCr15 bearing steel HRC58-60

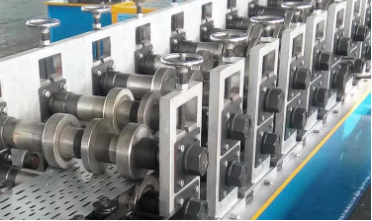

Roller: 20 stations.
main motor power: 22kw
Forming speed: 12M per minute.

main part of cable tray machine
hydraulic shearing device

Hydraulic sheet shearing device

Hydraulic power:15 kw
The whole production line adopt industrial computer(PLC , touch screen, automatically adjusting)

control device

PLC Control : Speed regulation control cabinet
language: As required
Touch screen: Delta
Function: Automatic length and quantity measurement

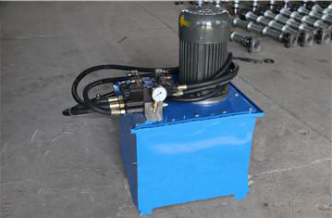

hydraulic station

hydraulic station

Hydraulic oil: 46#
Hydraulic power: 5.5kw
Cutting length : As required
feasure: no distorting or wasting. High level safety factor

We are 24 hours online, if you want the Steel Cable Tray Roll Forming Machine, send us message at any time.

Looking for ideal Cable Tray Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Cable Tray Punching Machine are quality guaranteed. We are China Origin Factory of Cable Punching Machine. If you have any question, please feel free to contact us.

Product Categories : Cable Tray Roll Forming Machine
