Light duty cable tray machine with cable extension

    Payment Type: L/C,T/T,D/P
    Incoterm: FOB,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
Basic Info

Model No.: zt-010

Length Of The Main Part: 9500-1650-1500mm

Weight Of Main Part: 6.8 T

Voltage: As Customer Required

Roller Fixer: Middle Plate Welded

Frame: Guide Pillar And The Thickness Is 50mm

Frame Thickness: 25mm

Drive Mode: Gear

Material Of Rollers: 45# Steel,surface Hard Chromium Plating

Material Of Shafts: 45# Steel

Additional Info

Productivity: 8-22m/min

Brand: ZhongTuo

Transportation: Ocean

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: ISO9001, CE

Port: TIANJIN

Product Description

Light duty cable tray machine with cable extension

Light duty cable tray machine with cable extension making also support the width of cable from 50 to 200 supports the material thickness from 0.8 to 1.5mm. This one cable tray could either make the cable tray machine and the cover machine. For the sizes changing, you need to know how to change the spacer and punching molds. But for the shearing system, you do not need to do any type adjustment.

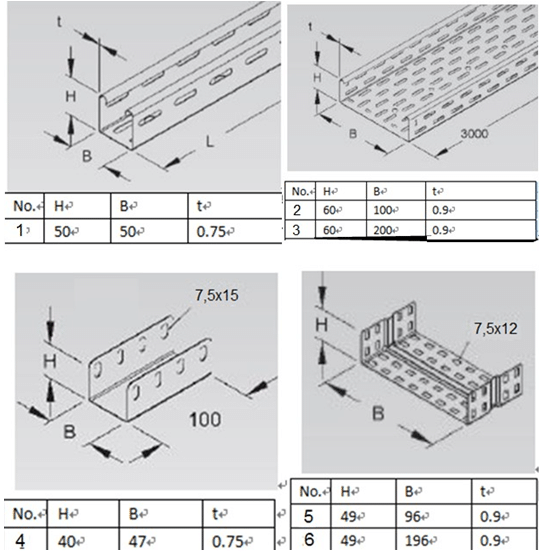

Here are some sizes and drawing of cable tray for your reference:

Cable tray: C50x50x3000; C60x100x3000; C60x200x3000mm;

Cable tray extension: U40x47x100; U49x96x100; U49x196x100 mm;

1


The following pictures are about the cable tray installation pictures for your reference:

2



The cable tray machine we design like the following pictures:

3



The cable tray machine working flow:

4



How to adjust sizes for cable tray and cable extension of different sizes?

As this cable tray machine supports more sizes, but how to change sizes. We call it as spacer. By the active spacer, you can change sizes easily.

The following is about the spacer pictures:

5



Main elements of the cable tray machine as your reference:

NO.

Elements nave

Quantity piece

weight (kg)

1.

Decoiler

1

350kg

2.

Coil leveling

1

500kg

3.

Punching machine

1

1250kg

4.

Coil feeder

1

120kg

5.

Roll Forming Machine (GCr12MoV)

1

6200kg

6.

Hydraulic cutting device

1

7.

Hydraulic station 1 unit

2

150kg

8.

PLC station - Siemens

1

9.

Out table 3m

1

10.

Hydraulic punching heads

6

240kg

11.

Cutting device

6

12.

Total – all:

8460kg





















FAQ:

1.Does one Light duty cable tray machine with cable extension can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

Looking for ideal Light duty cable tray machine with cable extension manufacturer & supplier ? We have a wide selection at great prices to help you get the target product.

If you have any question, please contact us.

xzz


Looking for ideal Cable Tray Production Line Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the High-extension Products Tile are quality guaranteed. We are China Origin Factory of Light Duty and Fashion. If you have any question, please feel free to contact us.
