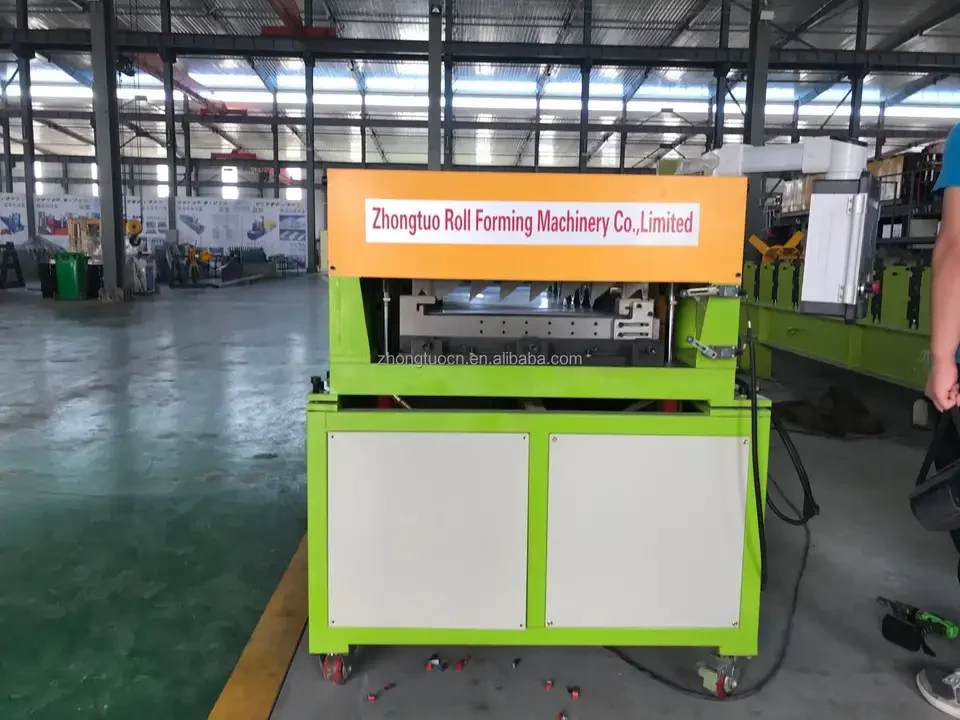

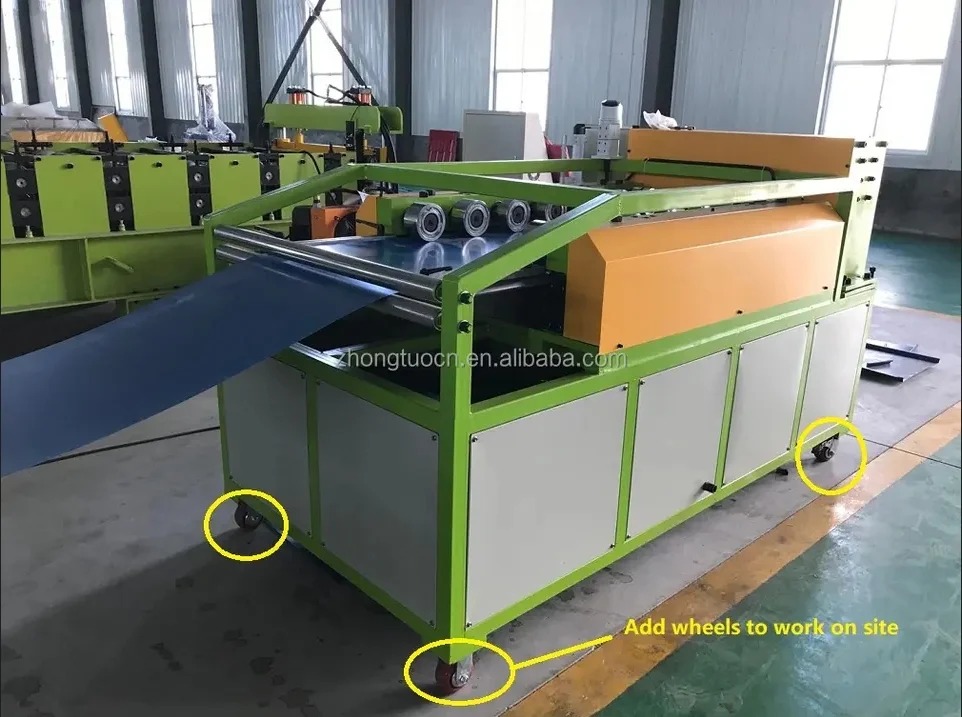

This machine is innovative and efficient, economic and portable, our in-plant and portable sheet metal roll forming machines are versatile products that focus on metal roofing, siding, trim and so on.
How the metal is fed through the rollers so that you have the desired end shape. With a simple touch of a handwheel you can smoothly regulate the width starting from 320 mm to 700 mm. The rotation of the hand wheel makes the shaping rollers move synchronically.

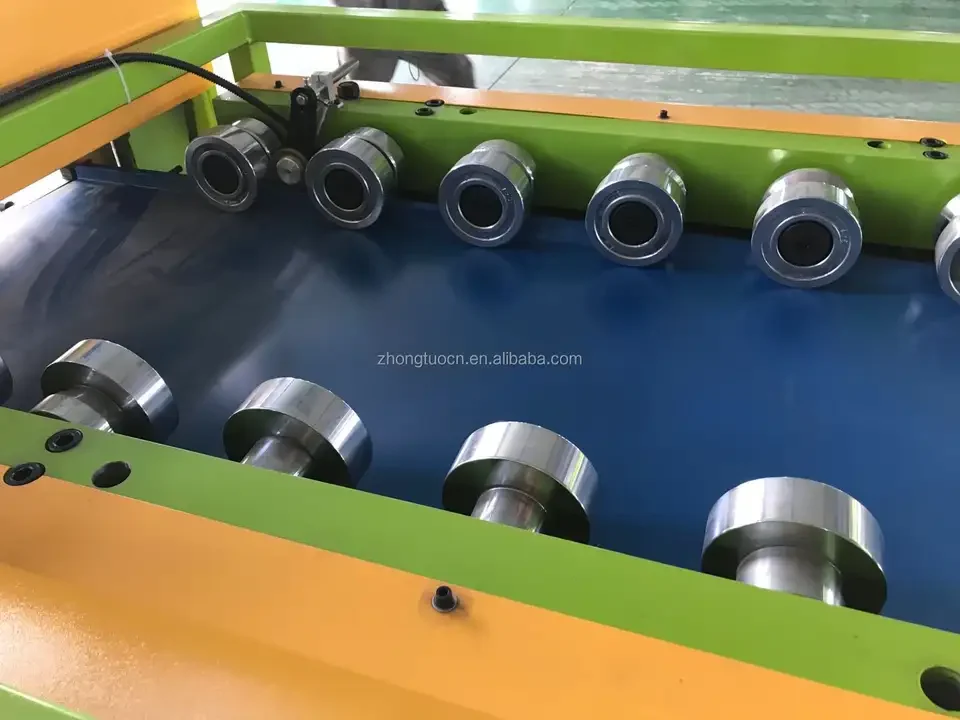

The rollers are the best part about this equipment. Not only there are gauging rollers which help to achieve the needed thicknesses or stiffness; but also, there is a possibility to install additional rollers for semi round or trapezoidal ribs. What is more, thanks to composite rollers there is a zero change of damaging polymer coating. At one of the final stages the panel goes through the last straightening station and then the formed product is cut with a shear or a guillotine at the individual length.
We can install protective cover to exclude any possibility of injury the machine.
| Portable standing seam machine metal roof roll former machine | ||||
| 1.Formed Material | PPGI,GI,AI | Thickness:0.3-0.8mm | ||
| 2.Decoiler | Hydraulic automatic decoiler | Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 7 rows(As your requirement) | ||
| Diameter of shaft | 80mm solid shaft | |||
| Material of rollers | 45# steel, hard chrome plated on the surface | |||
| Machine body frame | Square tube welded with steel panel | |||
| Drive | Gear transmission | |||
| Dimension(L*W*H) | 2300*1500*1600(customize) | |||
| Weight | 2.2T | |||

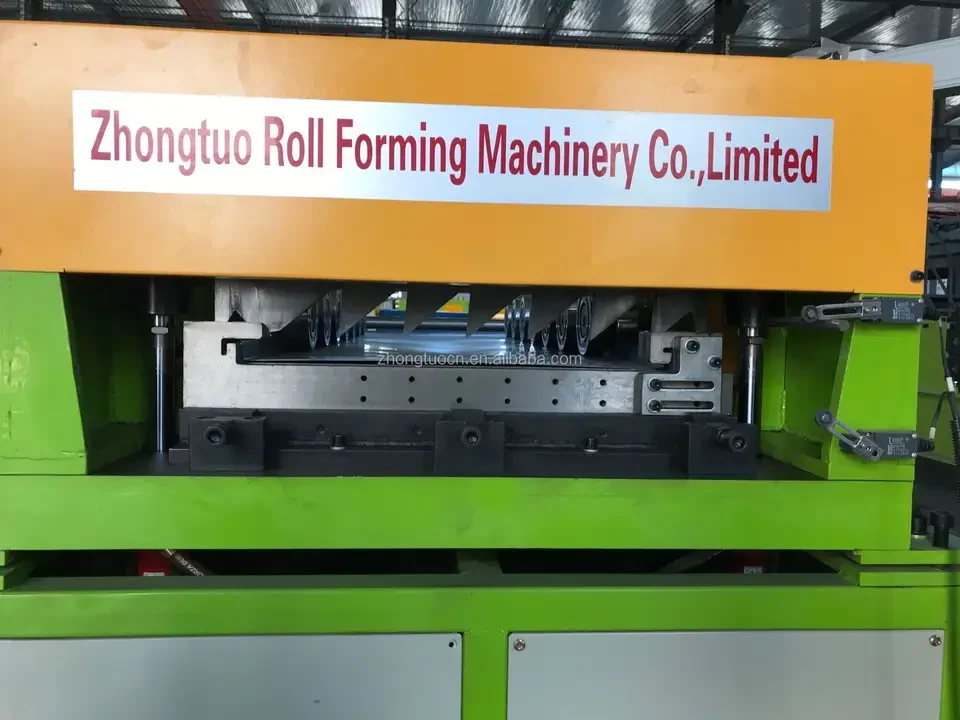

| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 3KW | ||
| Hydraulic system power | 3KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 8.Forming Speed | 10-15m/min | The speed is adjustable | ||
