Metro Roman Roof Tiles machine stone coated tile production line

Metro Roman Roof Tiles machine stone coated tile production line

Metro Roman Roof Tiles machine stone coated tile production line The stone coated roofing tile production line is to produce the stone coated roofing tile. thes

Metro Roman Roof Tiles machine stone coated tile production line

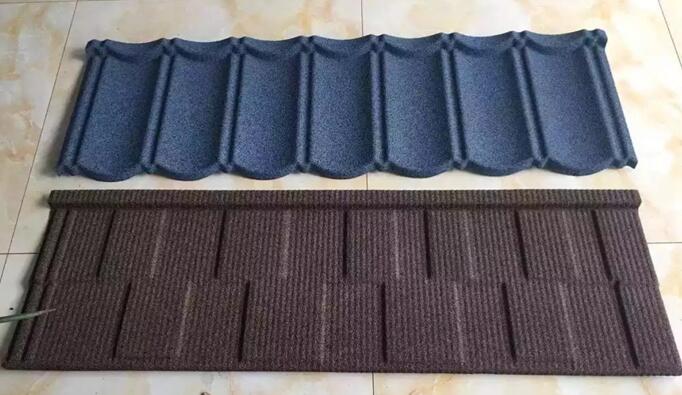

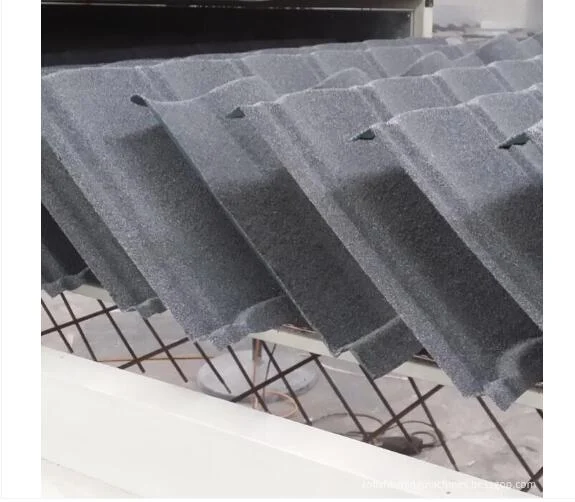

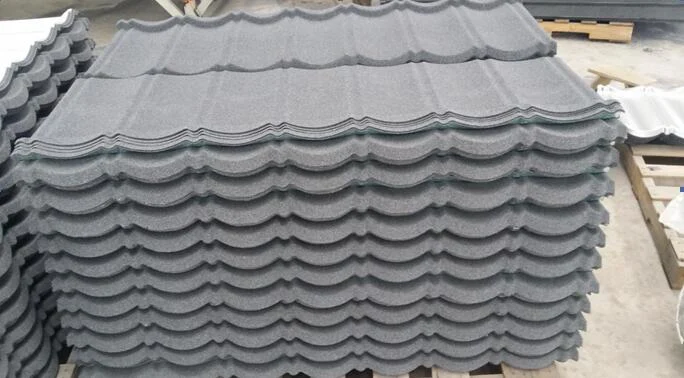

The stone coated roofing tile production line is to produce the stone coated roofing tile. these kind of tile is much mores   strong and beautiful then other type roofing sheet. Our factory is professional make the stone coated roofing tile production line China.The stone coated roofing tile production line China is included below parts:
1 One machine with Leveling ,device Hydraulic Cutting device ,Slitting device
2 Trimming machine
3 200 Ton press machine
4 mold
5 the stone coated machine line


(2) Description:
(1 ) Coated metal roof tile is a modern environmentally friendly roofing material with
the basic of 0.4mm Al-zin coated steel.
Covering color vermiculite surface which carried under the high temperature technology.
It is high-performance, stable, energy-efficient and easy operation.
(3) This stone-coated roof tile machine line is included below parts:
stone coated line
Plate slitting shearing machine
flower shearing machine
Hydraulic press machine
roof tile mold
bending machine
Punch-200 T--450T
(4) Profile sizes:
(1) Profile drawing and requirements: Aluzinc 1350 mm X 420 mm X 0,4 mm
(2) Machine picture for your reference
Metro Roman Roof Tiles machine stone coated tile production line



Metro Roman Roof Tiles machine stone coated tile production line



Metro Roman Roof Tiles machine stone coated tile production line




(5) Stone coated roofing sheet forming flow:
1. Material
1.1 Coil material:color Sheet,  galvanized sheet
1.2 Coil material thickness: 0.4mm- 0.7mm
1.3Feeding width:1250mm
2. Formed stone coated line
Metro Roman Roof Tiles machine stone coated tile production line



Metro Roman Roof Tiles machine stone coated tile production line

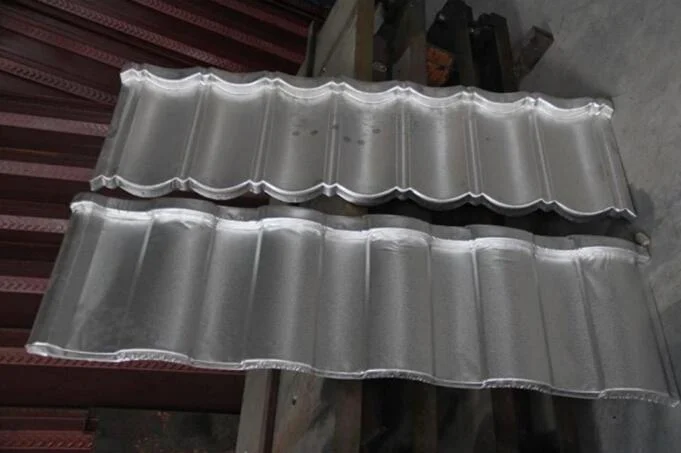

Step 1:  The base roofing tile profile forming
5 Ton manual decoiler -One machine with Leveling ,device Hydraulic Cutting device ,Slitting device -Trimming machine -Punching machine

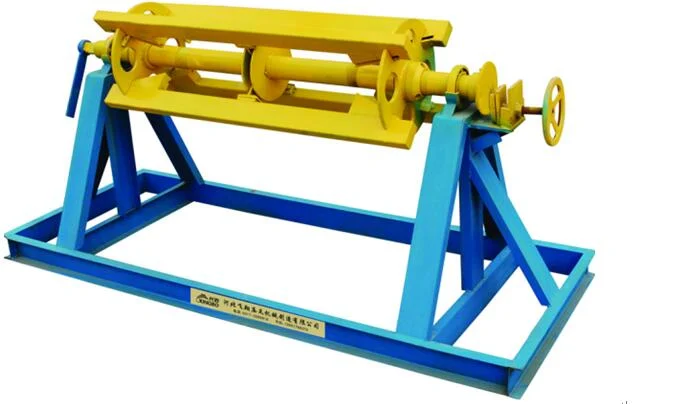

1 5 Ton decoiler      Price: USD 500
Hydraulic Uncoiler     Coil inner diameter   450-550 mm
Max coil out diameter      1300 -1600 mm
Max coil width    1250 mm
Carrying capacity       5 T
Metro Roman Roof Tiles machine stone coated tile production line

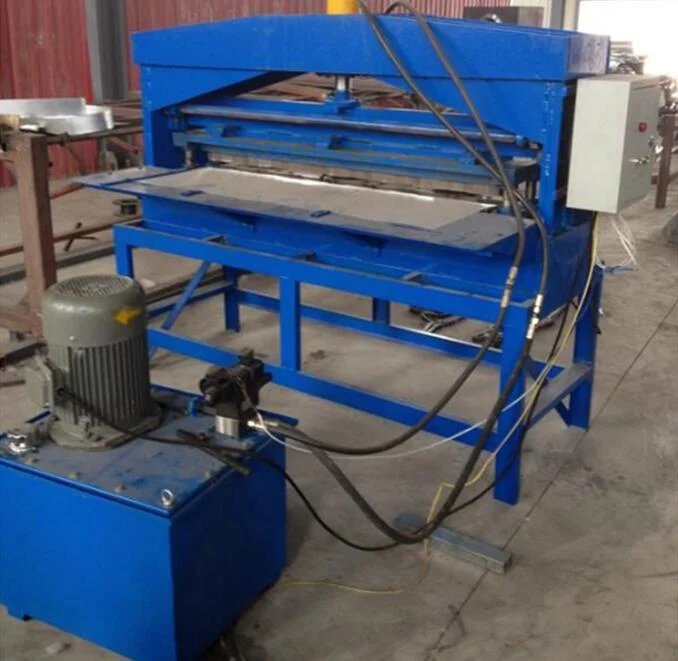

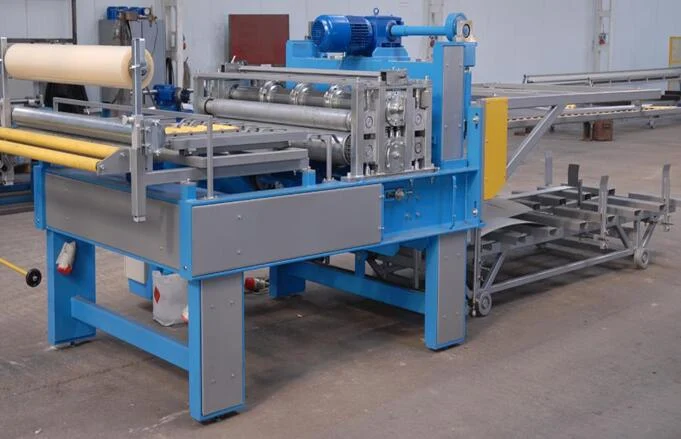

2 Beveling Cut and slitting machine  The price is: 9800USD
1.1 Shaft material: 45# steel, outer diameter 80mm
1.2 Number of shaft:1 step of feeding, up: 2 pieces, down:2 pieces
1.3Gear transport
1.4Forming speed:15m/min
1.5Main motor power:3kw


Metro Roman Roof Tiles machine stone coated tile production line





5. Trimming machine    The price is: 1600USD
Material mold: D2/GCr12MoVo
Power: 3 kw
Price of the machine and cut mold:
This mold is equal to two molds which can work with the two sides
Metro Roman Roof Tiles machine stone coated tile production line

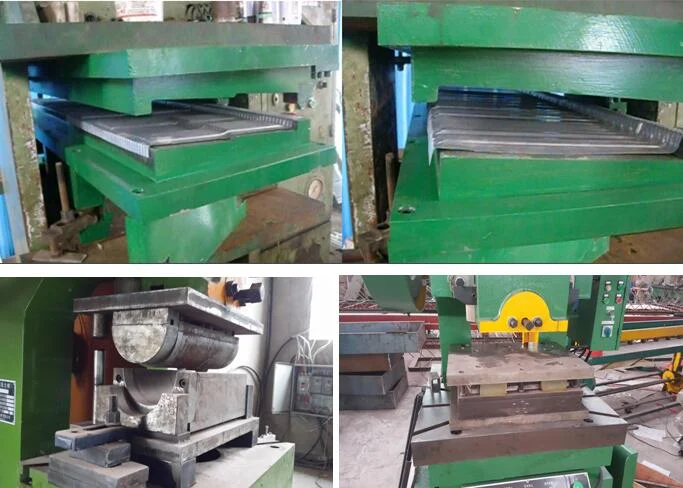

5. Punching machine

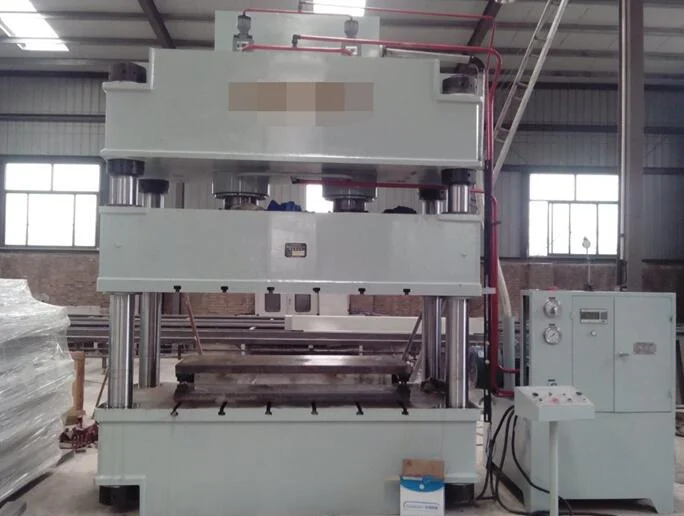

200 Ton press machine             315 Ton press machine
The price is : 19200USD            The price is : 24600USD


Metro Roman Roof Tiles machine stone coated tile production line



Metro Roman Roof Tiles machine stone coated tile production line


Metro Roman Roof Tiles machine stone coated tile production line

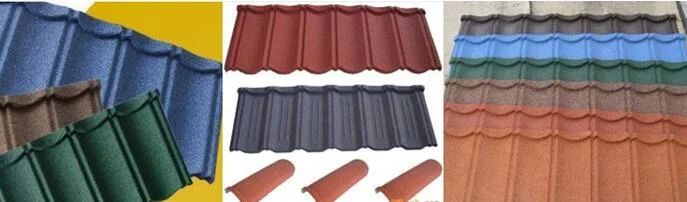

stone coated roofing tile production line
Stone Coated Metal Roofing Systems
Stone Coated Tile Production Line China manufacturer
Color Stone Chip Coated Metal Roof Tile Forming Machine
Step Tiles Aluminium Roofing Sheet
Classic Roof Tiles
Onduvilla Roofing Tiles
Tilcor Royal Roof Tile
Onduvilla Roofing Tiles
Metro Classic Roof Tile
Metro Roman Roof Tiles

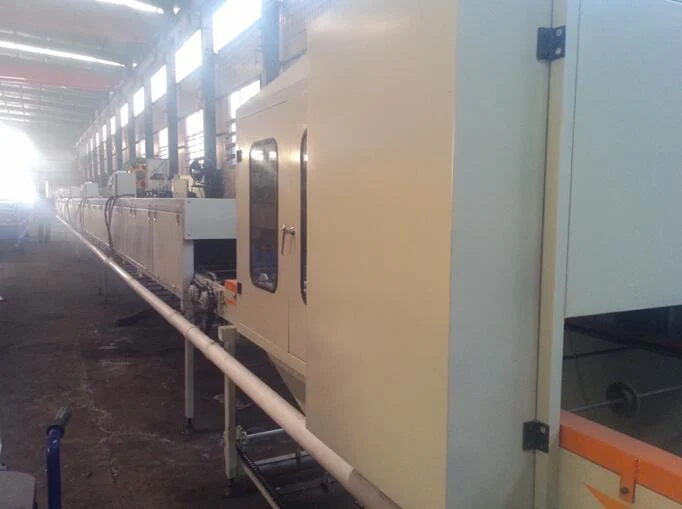

It is including five main parts:
1 Auto bottom glue spraying section

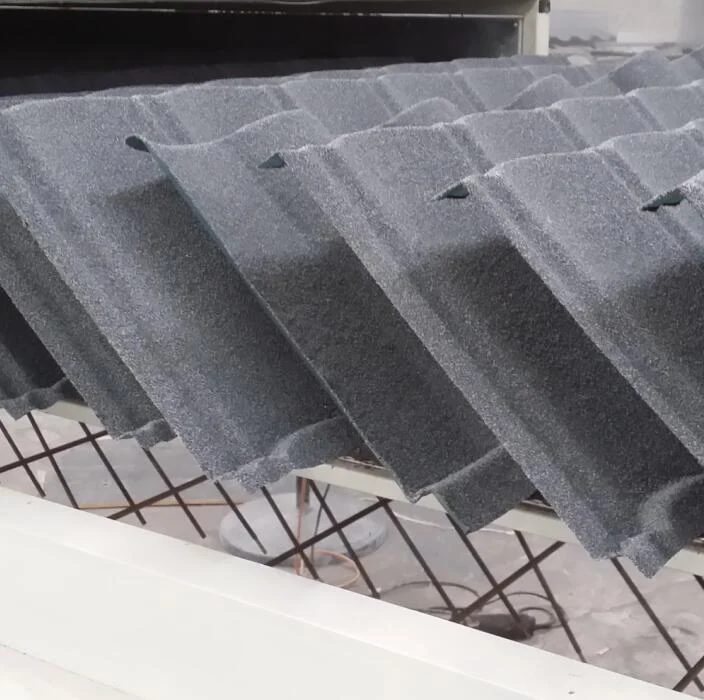

2 Auto stone coated section
3 The first time drying section
4 Auto face glue spraying section
5 The second time drying section

NO. 1 Auto bottom glue spraying section
Appearance size 4000*1000*2000mm
Driving section 3KW Excitation motor or frequency speed regulation  (AS per   customers` requirements )
Automatic pressure spray tank 1 set ; Capability: 200kg ; Range: 0.6~1Mpa
Automatic glue machine motor Servo motor ; Power: 750w ; PLC
Automatic spray gun 4 set (spare parts)
Dust collecting fan 1 set ; Power: 200w
Damp proof lamp 1 pc ; Power: 100w
Conveying device Chain reciprocating
Air compressor 1 set ; Power: 7.5kw
Dust control of axial flow fan 1 set ; Power: 200w
Agitator 1 set ; Power: 1.5kw

NO. 2 Auto stone coated section
Appearance size 3500*1000*1500mm
Framework Steel welding
Conveying device Chain reciprocating
Automatic sand hopper 1 set ; Capability: 200kg
Bucket lift 1 set
Manual sandblast gun 4 sets

NO. 3 The first time drying section
Appearance size 25000*1000*1200mm
Framework Steel welding
Frame type thermal insulation wall 1.2mm cold steel with Rock wool
Automatic temperature controller 4 sets ;  Range: 0°~160°
Infrared heating tube 30pcs ; Power: 30kw
Conveying device Chain reciprocating
Air cooling device 1 set ; Power: 200 w

NO. 4 Auto face glue spraying section
Appearance size 3000*1000*2000mm
Framework Steel welding
Damp proof lamp 1 pc ; Power:100w
Automatic pressure spray tank 1 set ; Capability: 200kg ; Range: 0.6~1Mpa
Conveying device Chain reciprocating
Automatic spray gun 4 sets (spare parts)
Manual patch glue gun 4 sets
Dust control of axial flow fan 1 set ; Power: 200w
Automatic glue machine motor Servo motor ;  Power: 750w


NO. 5 The second time drying section
Appearance size 30000*1000*1200mm
Framework Steel welding
Frame type thermal insulation wall 1.2mm cold steel with Rock wool
Automatic temperature controller 4 sets ; Range: 0°~160°
Infrared heating tube 30pcs ; Power: 30kw
Conveying device Chain reciprocating
Air cooling device 1 set ; Power: 200 w
