the Supermarket Metal Shelf Panel Roll Forming Machine is a transformative addition to modern manufacturing lines. With its adjustable-width capability and fully integrated processing, it redefines efficiency and flexibility for shelving production. This
Detailed Content

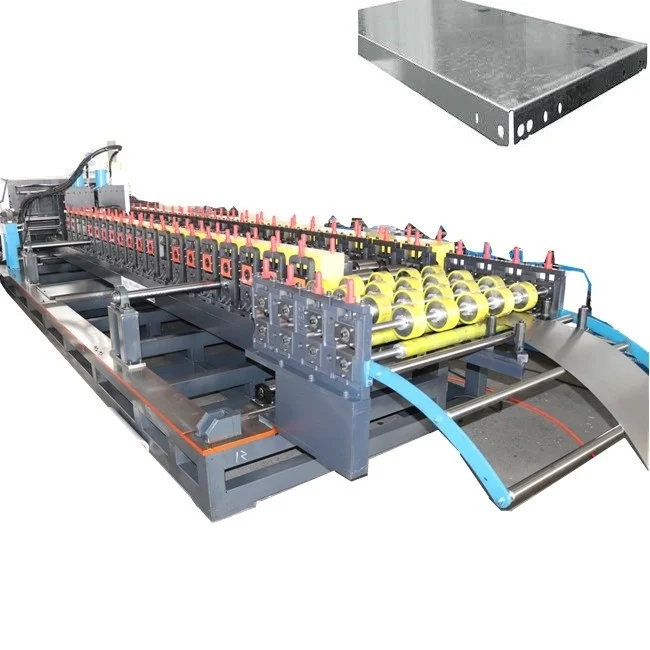

The Supermarket Metal Shelf Panel Roll Forming Machine is an advanced, fully automated solution tailored for mass production of supermarket shelf panels. Developed by Zhongtuo Machinery, this system is part of a comprehensive lineup that includes rack roll forming machines, box beam forming equipment, and more—all designed to meet the evolving needs of modern shelving manufacturers.Ideal for producing shelf racking plates with online bending, high precision, and width-adjustable features, this machine is widely recognized across the shelf racking industry for its automation and versatility.
High-Performance Shelf Panel Production with Flexibility
In today’s competitive retail environment, manufacturers are constantly seeking solutions that offer greater efficiency and customization. This roll forming machine provides exactly that—allowing for on-demand width adjustments and seamless integration of cutting and bending processes within a single production line.
Profile Drawing：
Supermarket Shelf Panel Sample:
Key Advantages Of Shelf Back Panel Machine

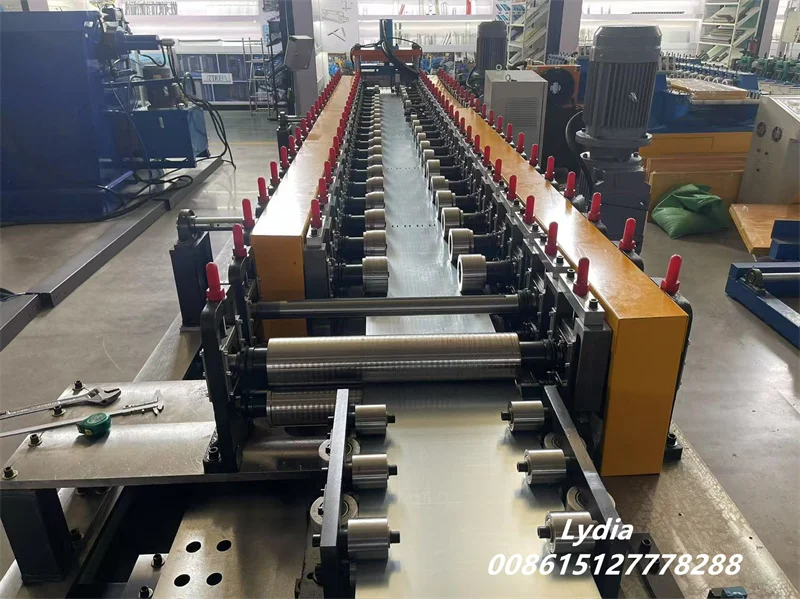

1. Adjustable Width to Meet Custom Requirements

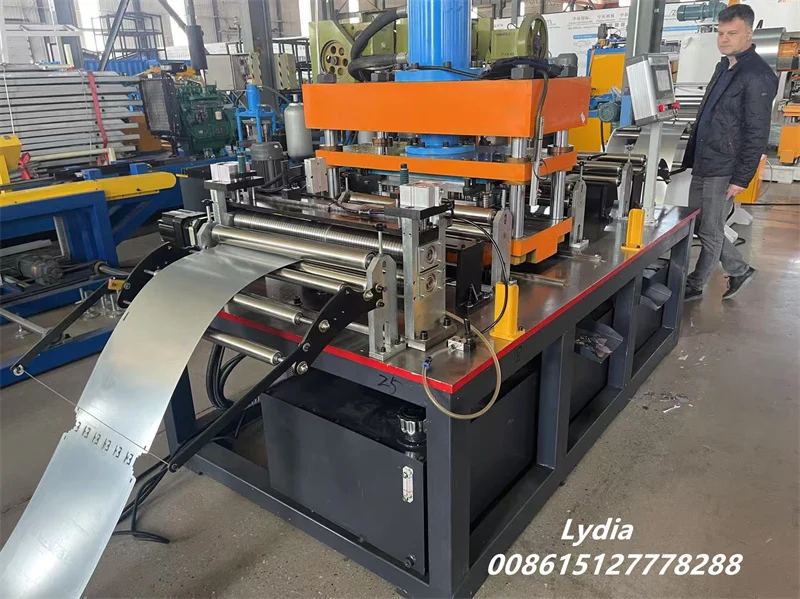

One of the standout features of this machine is its flexible width adjustment system, which applies across all key components: leveling, punching, shearing, and roll forming. This enables manufacturers to effortlessly adapt production to meet diverse design requirements for supermarket shelving. Refer to the design schematic for further details.
2. Tailored Shelf Panels with Versatile Output Options
This machine supports a wide range of shelf panel widths, making it suitable for various product display formats. The ability to fine-tune dimensions on-the-go allows businesses to maintain production agility while meeting the specific shelving needs of different retail spaces.

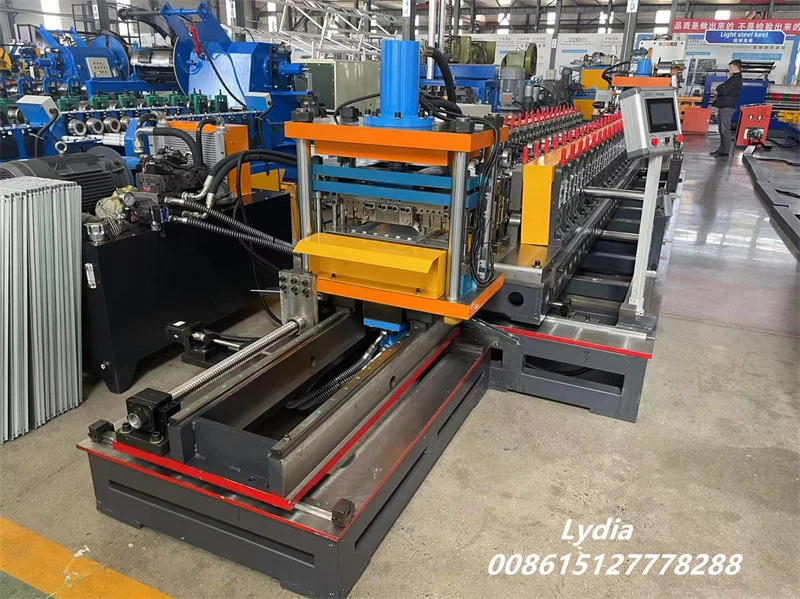

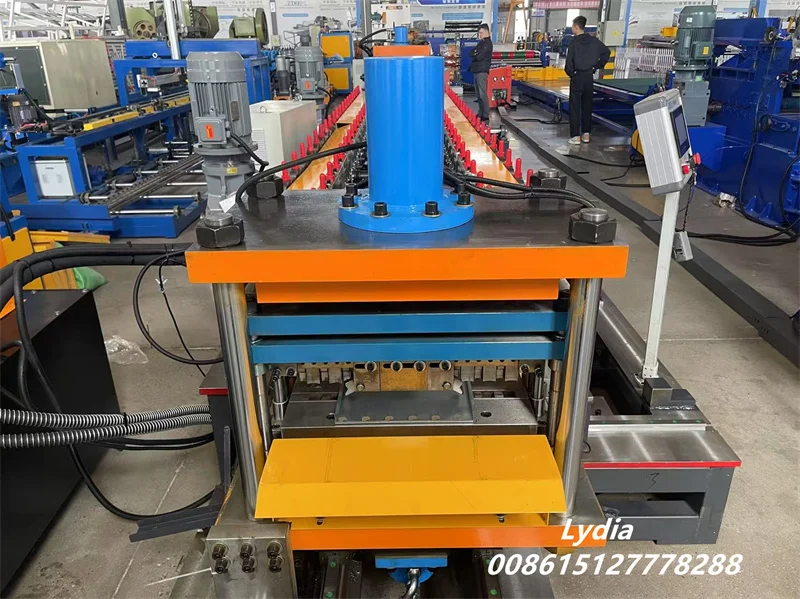

3. Integrated Cutting and Bending in One Compact Line
Instead of using multiple machines for separate tasks, this equipment combines cutting and bending into a streamlined operation. The result is a smoother workflow, enhanced precision, and reduced handling time—minimizing errors and labor requirements.
4. Boosted Productivity and Reduced Downtime
By synchronizing width adjustment with cutting and bending, this system drastically improves throughput efficiency. It shortens cycle time, lowers labor dependency, and increases overall production capacity, delivering a substantial return on investment.
5. Superior Finish and Product Consistency
Engineered for excellence, the machine delivers panels with clean edges and consistent angles, ensuring a professional finish on every product. This contributes to both the aesthetic appeal and durability of the final shelf units.
Suitable Shelf Back Panel Machine for Both Small and Large-Scale Production
Whether you operate a small workshop or a high-volume production facility, this roll forming solution offers cost-effectiveness and adaptability. Its smart design reduces operational costs while enabling rapid response to market demands.
| ZTFRM Shelf Back Panel Machine | ||
| Formed Material | Cold rolled coil | Thickness:0.4-0.7mm |
| Panel width | Width range | 410mm 510mm 610mm 710mm |
| Profile | Provide customized,OEM,ODM | |
| Decoiler | capacity:5 tons | Inner diameter:φ450～550mm,outer diameter of the coil material φ 1300mm |
| Roll Forming | Roller station | 20 rows(As your requirement) |
| Diameter of shaft | φ 50mm solid shaft | |
| Material of rollers | Cr12MoV, with vacuum heat treatment, twice tempering, hardness HRC55-58 | |
| Design | Two sets of tapered roller bearings 30209 are equipped on the transmission side, and one set of cylindrical roller shaft NJ209 is equipped on the operation side. |
|
| Cutter | Automatic | cr12mov material, no scratches, no deformation |
| Power | Main Power | ≤ 30 KW |
| Voltage | 380V 50Hz 3Phase | As your requirement |
| Control system | Transmission | Gear transmission |
| Language | English(Support multiple languages) | |
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |
| Forming Speed | 10 m/min | The speed provide customized |
