In the dynamic world of construction, efficiency and precision are the keys to success. Zhongtuo International, we are proud to introduce our state - of - the - art Stud and Track Machine, a game - changing solution that is set to transform the way you build.

Understanding the Stud and Track Machine

         The Stud and Track Machine is a specialized piece of equipment designed to simplify the production of metal studs and tracks, the fundamental components of house and apartment building frames. These studs and tracks, typically made from galvanized steel, form the backbone of walls, ceilings, and partitions in residential, commercial, and industrial structures.
         Our machine is engineered to fabricate these essential elements with unrivaled accuracy and speed. It takes raw steel coils as input and, through a series of precisely calibrated processes, molds them into perfectly formed studs and tracks. This process  no only highly reduce the time-waste and labor cost ,but realize a more accuracy and improve the capacity of production.




How It Works

          The operation of our Stud and Track Machine is a marvel of modern engineering. The steel coil is first fed into the machine's unwinding system, which carefully unrolls the coil at a controlled speed. The steel strip then passes through a leveling mechanism, ensuring that it is flat and free of any bends or kinks before entering the forming section.
          In the forming section, a series of custom - designed rollers work in harmony to shape the steel strip into the desired C - shaped profile for studs or U - shaped profile for tracks. These rollers are adjustable, allowing for quick and easy changes in the dimensions of the studs and tracks to meet the specific requirements of different construction .
          After the forming process, the studs and tracks are cut to the required length by a high - precision cutting system. This system uses advanced servo motor and servo track cutting system to ensure that each cut is accurate within millimeters, minimizing waste and maximizing material utilization.

Applications in the Construction Industry

          The applications of our Stud and Track Machine are vast and diverse. In residential construction, metal studs and tracks are widely used for interior wall framing. They provide a lightweight yet sturdy alternative to traditional wooden framing, offering advantages such as fire resistance, insect resistance, and dimensional stability. Our machine enables builders to produce these components in - house, reducing costs associated with purchasing pre - fabricated studs and tracks from external suppliers.
          In commercial construction, where large - scale projects demand high - volume production of building materials, our Stud and Track Machine truly shines. It can efficiently produce the massive quantities of studs and tracks required for office buildings, shopping malls, and hotels. The ability to customize the dimensions of the studs and tracks on - the - fly makes it an ideal choice for architects and contractors who need to meet the unique design requirements of each project.
          Industrial construction also benefits greatly from our machine. In factories, warehouses, and industrial facilities, metal studs and tracks are used to construct partition walls, mezzanines, and other structural elements. The durability and strength of the components produced by our machine make them well - suited for these demanding environments.

Advantages of Our Stud and Track Machine

• Unparalleled Precision: Our machine is equipped with the latest in sensor technology and plc contron system ensuring that every stud and track produced meets the high standards of quality. The tight tolerances achieved in the manufacturing process result in a perfect fit when assembling the building frame, reducing the need for costly adjustments and rework.



• High - Speed Production: With its advanced design and efficient operation, our Stud and Track Machine can produce a large number of studs and tracks in a short period. This significantly increases productivity and helps construction projects stay on schedule. The high - speed production capabilities also make it a cost - effective solution for large - scale construction companies.



• Versatility: The adjustable rollers and cutting system of our machine allow for the production of studs and tracks in a wide range of sizes and profiles. Whether you need standard - sized components for a typical construction project or custom - designed studs and tracks for a unique architectural design, our machine can meet your needs.



• Cost - Savings: By producing studs and tracks in - house using our machine, construction companies can eliminate the costs associated with purchasing these components from external suppliers. Additionally, the high - speed production and low waste rate of our machine result in significant savings in material and labor costs over the long term. compared with similar stud and track machine with cut-edge technique in America, the machine from our company may cost one fifth to them , but the preformence can reach the eigthty percentage of them .

Typical product listing

No.1

No loadbearing steel stud framing

Our machine can produces a complete rang of non-loadingbearing steel stud and tack products
.
Steel stud framing is fast, economical, and easy to install.

Steel studs are non-combustible and UL fire rated with excellent STC ratings.

All studs have knockouts to enable bridging channels for stiffness and access for services such as electrical.




All products are produced from galvanized steel and designed to meet or exceed all codes and standards.
The commonly used size of the non-loadbearing steel studs and tracks



Widths	1-5/8, 2-1/2, 3-5/8 and 6”
Flange	1-1/4”



Applicable standards
1·CAN/CSA S-136-16
 (North American specification for the design of cold-formed steel structural members)

2·ASTM A653/A653M
(Standard for steel sheet, zinc-coated (galvanized) or zinc-iron alloy-coated by the hot-dip process)

3·ASTM C645
(Standard specification for non-structural steel framing members)

No.2

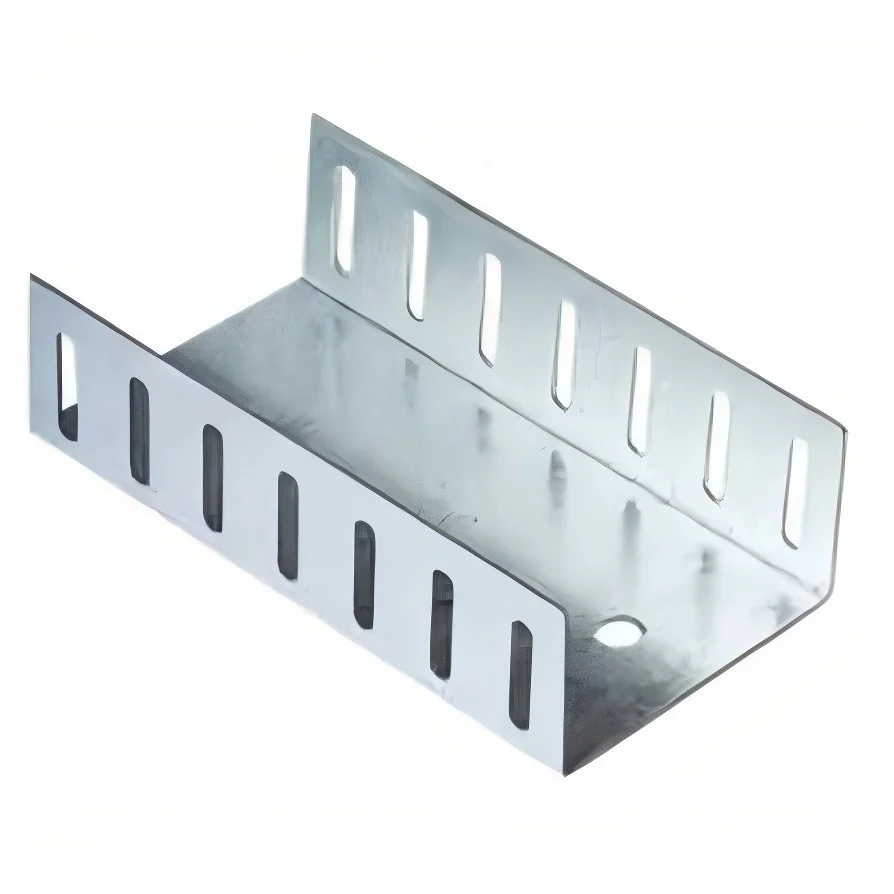

Slotted deflection track


Slotted Deflection Track provides a means for quick and simple steel stud installation.

The deflection track has 2-1/2” flanges with 1-1/2” slots to accommodate deflection and holes in the web for drainage and ease of fastening. Now this kind of size is very popular in North America.

The slots are placed 1” on center along the flange of the Slotted Track enabling installation of steel studs at any spacing.

Slotted Deflection Track is available in:


Widths	2-1/2”,3-5/8”,4”,6”, 8” and 10”
Thicknesses	25 ga (18mils), 20 ga (33mils), 18 ga (44 mils), 16 ga (54 mils) 14 ga (68 mils)




APPLICABLE STANDARDS

1·CAN/CSA S-136-16
 (North American specification for the design of cold-formed steel structural members)

2·ASTM A653/A653M
(Standard for steel sheet, zinc-coated (galvanized) or zinc-iron alloy-coated by the hot-dip process)

3·ASTM C645
 (Standard specification for non-structural steel framing members)
