Zhongtuo Roll Forming Machinery Co., ltd

Simple and Economical Cut to Lenght machine
Simple and Economical Cut to Lenght machine
Simple and Economical Cut to Lenght machine
Simple and Economical Cut to Lenght machine
Simple and Economical Cut to Lenght machine

Simple and Economical Cut to Lenght machine

Unit Price: USD 13000 - 30000 / Set/Sets
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now

Additional Info

    Packaging: nude packing

    Productivity: 30 set

    Brand: Zhongtuo

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: CE, ISO, SGS

Product Description

Simple and Economical Cut to Lenght machine

Brief introduction of cut to length production line:

For the cut to length production line, normally will be a little expensive in the market but most of the metal processing factroy will need this kind of production line. In order to cater to the market need, we

developed a new type cut to length production line. Here are some parameters for your reference:

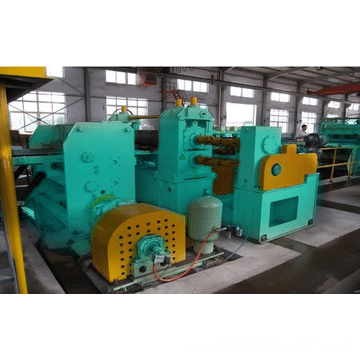

cut to length main machine

Machine design and main parameter:
1. Roller diameter: 130mm, material 45# quenching to 50 degree.
2. Roller station: 13 rollers, upper 6 rollers and down 7 rollers.
3. Frame thickness: 45mm
4. Main power:7.5kw Frequency conversion speed regulation
5. Motor brand: SIEMENS
6. Electrical parts brand: Schneider
7. Speed ratio of gear reducer: 1:23
8. Structure: Double guide column and double hydraulic jacks.
9. Hydraulic pump station power: 4kw. The motor brand is SIEMENS.
10. PLC Control system: Japanese Panasonic
11. Cutter blade thickness: 25x80mm
12. Automatic stocker: 3000x1600mm
It works and controlled by motor, the motor brand is SIEMENS.
Slitting main

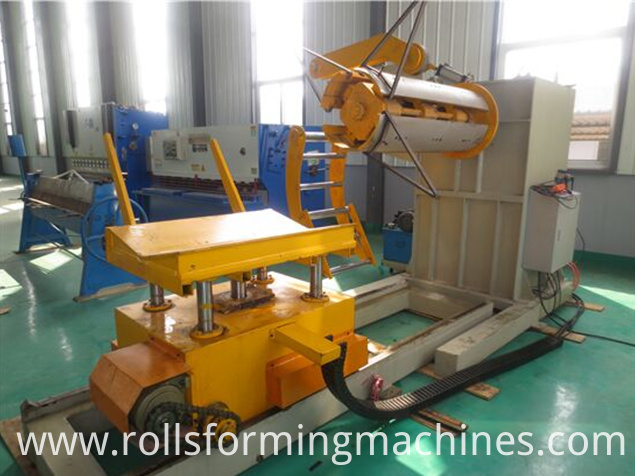

3. Hydraulic decoiler with or without loading car 10 Ton
Detail parameters of the decoiler:
1. ID Range: 450 to 550mm and 550 to 650mm.
For reaching to 650mm, you need to add some filling iron with bolt. Those tech and material will be provided by the factory.
2. Hydraulic decoiler without loading car

10 Ton decoiler

Automatically stacking machine

1. Structure

For the blanking machine system, it is mainly for making the sheet neat and clean and made by transverse frame and, vertical baffle. For fitting different length of sheet, it adjusted range within 500-3000mm. The baffle plate also could be adjusted according to the coil width. Stacking machine adopts cylinder to adjust, palletizing machines are mainly composed of motor and roller cylinder palletizing walking. Its function lies in the blank sheet stacking neat, start motor will be stacking neat sheet sent blanking stage to the packing stage, the device with a material form.

automatic stacker2

Looking for ideal Stong CTL Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Economical CTL Machine are quality guaranteed. We are China Origin Factory of Metal Processing Equipment. If you have any question, please feel free to contact us.

Product Categories : Slitting Line/Cut To Length Line
