Zhongtuo Roll Forming Machinery Co., ltd

Heavy Duty Storage Racks Roll Forming Machine
Heavy Duty Storage Racks Roll Forming Machine
Heavy Duty Storage Racks Roll Forming Machine
Heavy Duty Storage Racks Roll Forming Machine
Heavy Duty Storage Racks Roll Forming Machine

Heavy Duty Storage Racks Roll Forming Machine

Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-002

    Type: Cold Bending Equal Channel

    Shape: C Channel

    Perforated: Perforated

    Length: 6-19m

    Drive Mode: Gear Box

    Speed: 15m/min

    Matching Material: G.I Or M.S

    Material Thickness Range: 1.2-1.8mm

    Main Motor Power: 15kw

    Hydraulic Station Power: 7kw

    Quantity Of Stands: About 16

    Controlling System: PLC

    Total Weight: 8 Tons

    Voltage: Customized

Additional Info

    Packaging: As the Customer's Requirement

    Productivity: 5 set

    Brand: ZHONGTUO

    Transportation: Ocean,Land,Air,as customer requirem

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: CE\ISO9001

    Port: TIANJIN

Product Description

Heavy Duty Storage Racks Roll Forming Machine could be used to make storage racks in batch fully automatic. The thickness could be from 2.0 to 3.5 mm. Different with the medium-sized shelf, for filling the heavy work, there are some the basic elements of the design of heavy goods racks to obey.

1.The weight of the cargo and the pallet

Heavy shelves of goods in general to be put on the shelf through the tray, so when designing pillar, we have to take total weight of the goods into consideration.

2.How many layer want to bear

For heavy duty, normally two layers. This is an important basis for us to calculate the length of each layer of the load and the length of each pillar.

3.The net height of the workshop and forklift lifting height

For the heavy duty, also use the forklift lifting, so if height is higher than space will be a troublesome thing.
And there are also many other elements, but when design machine and checking customer design, we will take those elements into consideration. Here are some popular shapes for your referenece:


Here is a Storage Rack Roll Forming Machine picture for your reference:

pillar rack machine

To make you better know the Racking Roll Forming Machine, we show you some parameters in the followings.

Machine working process:


Working speed: 11-15 meter per minute
Main elements of the roll forming machine
NO. Item Name Quantity
1 Un-coiler (5 tons ) MANUAL 1 set
2 Level device with servo feeding system 1 set
3 40Tons punching machine 1 set
4 Roll former 1 set
5 Hydraulic cutter 1 set
6 PLC control cabinet 1 set
7 Output table with rollers(6 meters) 1 set
8 Gear box with universal joint transmission 1 set

Features of the Heavy duty Racking Frame Roll Forming Machine:

1.Gearbox as the transmission method, to make sure it can give enough power to handle thickness material meanwhile make sure the machine working steady.
2.Higher speed, normally speaking the machine working speed could reach 15meter per minute.
3.Pillar stand frame to make sure machine structure is strong and beautiful.
4.Best brand elements like PLC, hydraulic system and others.
5.PLC control system, so you can control length, working speed and accuracy easily.

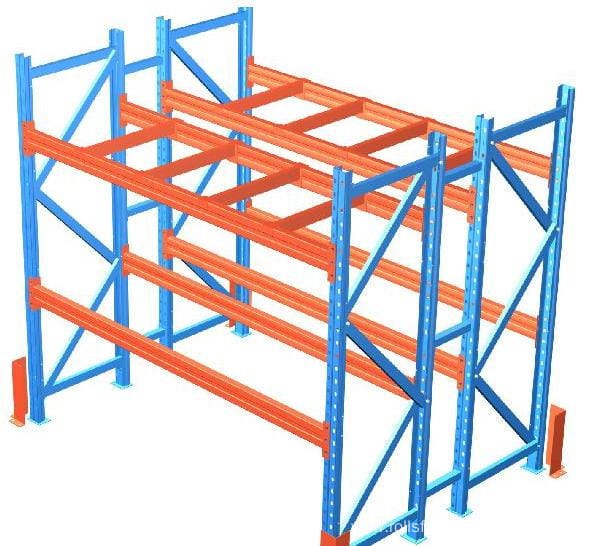

How the shelf pillars are used in our daily life?


If you want to know more about the Pallet Rack Roll Forming Machine, contact with us at any time. We will give you the professional solution.

Looking for ideal Storage Racks Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Storage Racks Roll Forming Machine are quality guaranteed. We are China Origin Factory of Heavy Duty Storage Racks Machine. If you have any question, please feel free to contact us.
