Basic Info

    Model No.: CNZT002

    Type: Cold Bending Equal Channel

    Shape: C Channel

    Perforated: Perforated

    Length: 6-19m

    Drive Mode: Gear Box

    Speed: 15m/min

    Matching Material: G.I Or M.S

    Material Thickness Range: 1.2-1.8mm

    Main Motor Power: 15kw

    Hydraulic Station Power: 7kw

    Quantity Of Stands: About 16

    Controlling System: PLC

    Total Weight: 8 Tons

    Voltage: Customize

Additional Info

    Packaging: As the Customer's Requirement

    Productivity: 5 set

    Brand: ZHONGTUO

    Transportation: Ocean,Land,Air,as customer requirem

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: CE\ISO9001

Product Description

Metal storage machine

Pallet Metal storage machine is the machine for making the pallet rack for upright pillar system. Manufactured from customer special drawing profile, this upright pillar simply clip to your existing or new racking without the need for further fixings. This range of rack upright protectors is suitable for us in temperatures as low as -40 degrees and is fully recyclable and non toxic. With various types punching holes, it is beautiful in appearance and light in weight. Meanwhile it can help you do easy fixing. Here are some pictures for your reference:

90 upright pillar machine

upright pillar making machine5

For the Pallet making racks Roll Forming Machine design plan, we use the following elements and parameters.
MACHINE COMPONENTS:
1. Hydraulic decoiler 3 ton 1 set
2. Punching system 64 ton 1 set
3. Coil feeder 1 set
4. Leveling Machine 1 set
5. Roll Forming 1 set
6. Hydraulic Cutting 1 set
7. PLC Control System 1 set
8. Hydraulic Station 1 set
9 .Run-out Table-(Un-powered) set

For some key elemetns, here are some introductions:


1. Hydraulic decoiler:
3 Ton passive de-coiler with brake device
Outside diameter of coil: 550mm

Inside diameter of the coil: 450mm

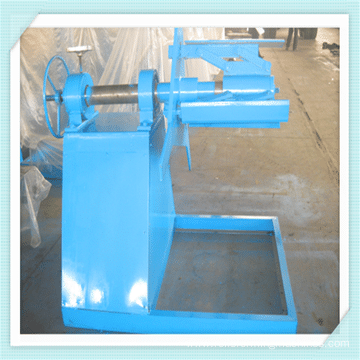

hydraulic decoiler


2. Leveling system and coil feeder:

After punching holes, the coil feeder can help feed the coil to the machine smoothly and feed coil at same working speed.

upright pillar making machine1


3. Main forming machine :
1) Forming steps: 18 steps
2) Outer diameter: 70mm
3) Machine frame (type): memorial arch frame, Thickness of memorial arch frame: 30mm
4) Roller information:
A. Raw material: GCr12MoV
B. Quenched degree: 56-58°C
5) Shaft material: 45# steel with heat treat and hard chrome plated on the surface
6) Main motor power: 18.5kw, Reducer ratio: 1:14,
Reducer Type: Hardened reducer

upright pillar making machine7

For the runout table:

upright pillar making machine9


Our Metal storage machines has been sold to more than 40 coutries. Before delivery, we will do the very strictly testing. By this way, we can make sure the the machine working ability 100% no problem. Meanwhile the tested finished prodcut could be delivered at the same time, there is no waste.

upright loading pictures

Customer from all over the world

Looking for ideal Metal Storage Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Storage Machine are quality guaranteed. We are China Origin Factory of Machine. If you have any question, please feel free to contact us.

Product Categories : Racking Roll Forming Machine
