Metal storage rack making shelf Roll Forming Machine

Metal Storage Rack Machine for making the pallet rack for upright metal storage rack. Manufactured from customer special drawing profile, this upright pillar simply clip to your existing or new racking without the need for further fixings. This range of rack upright protectors is suitable for us in temperatures as low as -40 degrees and is fully recyclable and non toxic. With various types punching holes, it is beautiful in appearance and light in weight. Meanwhile it can help you do easy fixing. Here are some pictures for your reference:

drawing profile of metal storage rack

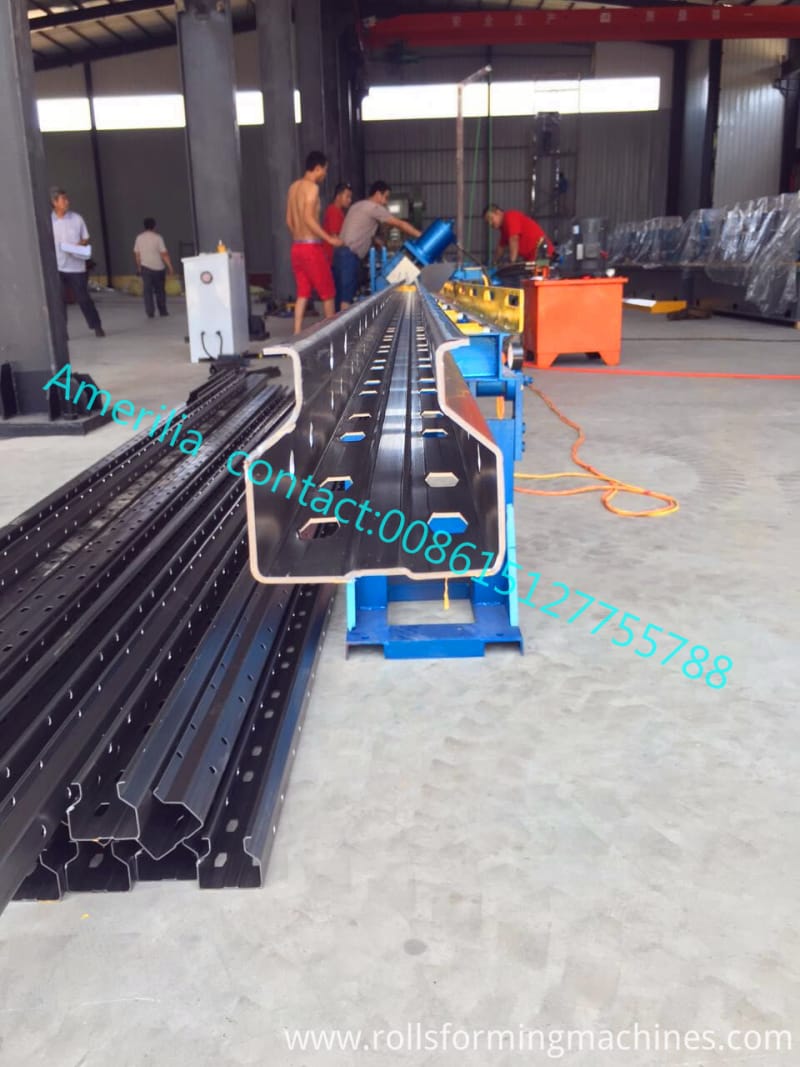

Let us check the picture of rack shelf making machine

Metal Storage Rack Machine

For the rack shelf making machine design plan, we use the following elements and parameters.
1. Hydraulic decoiler 3 ton 1 set
2. Punching system 64 ton 1 set
3. Coil feeder 1 set
4. Leveling Machine 1 set
5. Roll Forming 1 set
6. Hydraulic Cutting 1 set
7. PLC Control System 1 set
8. Hydraulic Station 1 set
9 .Run-out Table-(Un-powered) set

For some key elements, here are some introductions:


1. Hydraulic decoiler:
3 Ton passive de-coiler with brake device
Outside diameter of coil: 550mm

Inside diameter of the coil: 450mm

hydraulic decoiler


2. Leveling system and coil feeder:

After punching holes, the coil feeder can help feed the coil to the machine smoothly and feed coil at same working speed.

upright pillar making machine1


3. Main forming machine of metal storage rack machine:
1) Forming steps: 18 steps
2) Outer diameter: 70mm
3) Machine frame (type): memorial arch frame, Thickness of memorial arch frame: 30mm
4) Roller information:
A. Raw material: GCr12MoV
B. Quenched degree: 56-58°C
5) Shaft material: 45# steel with heat treat and hard chrome plated on the surface
6) Main motor power: 18.5kw, Reducer ratio: 1:14,
Reducer Type: Hardened reducer

Rack Shelf Making Machine

For the runout table:

upright pillar making machine9

Our Metal storage rack machines has been sold to more than 40 countries. Before delivery, we will do the very strictly testing. By this way, we can make sure the the machine working ability 100% no problem. Meanwhile the tested finished product could be delivered at the same time, there is no waste.

upright loading pictures

Customer from all over the world

Looking for ideal Metal Storage Rack Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Rack Shelf Making Machine are quality guaranteed. We are China Origin Factory of Metal Storage Rack. If you have any question, please feel free to contact us.
