Shelf Rack Roll Forming Machine
Shelf Rack Roll Forming Machine
Shelf Rack Roll Forming Machine
Shelf Rack Roll Forming Machine
Shelf Rack Roll Forming Machine

Shelf Rack Roll Forming Machine

Payment Type: L/C,T/T,D/P,D/A
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 25 Days

Contact Now

Basic Info

    Model No.: ZT-005-213

    Shaft Material: 45#steel

    Name: Steel Racking Roll Forming Machine

    Roller Material: Gcr15

    Type: Cold Forming Sectional Steel

    Trademark: Carbon Structural Steel

    Connection Form: Bolt Connection

    Member: Steel Column

    Carbon Structural Steel: Q235

    Power: 7.5kw

    Drive: Gear Or Chain

Additional Info

    Packaging: as you need

    Productivity: 5-8m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: CE, ISO9001

Product Description

Shelf Rack Roll Forming Machine

Shelf Rack Roll Forming Machine adopts servo controlled material feeding technology for complex punching to guarantee precision. This storage rack roll forming machinery also adopts track cutting technology to ensure the machine capacity and gear box transmission and ensure the machine`s rigidity and working strength. Racking Roll Forming Machine is also known as shelf roll forming machine, shelving rack roll forming machine, shelving roll forming machine or shelves rack roll forming machine. This storage rack roll forming machinery is composed of automatic decoiler, guiding device, leveling and feeding device, punching unit, molding parts, fly shearing system, run-out table, electronic control system and hydraulic system.

Racking Roll Forming Machine


Racking Roll Forming Machine workflow :

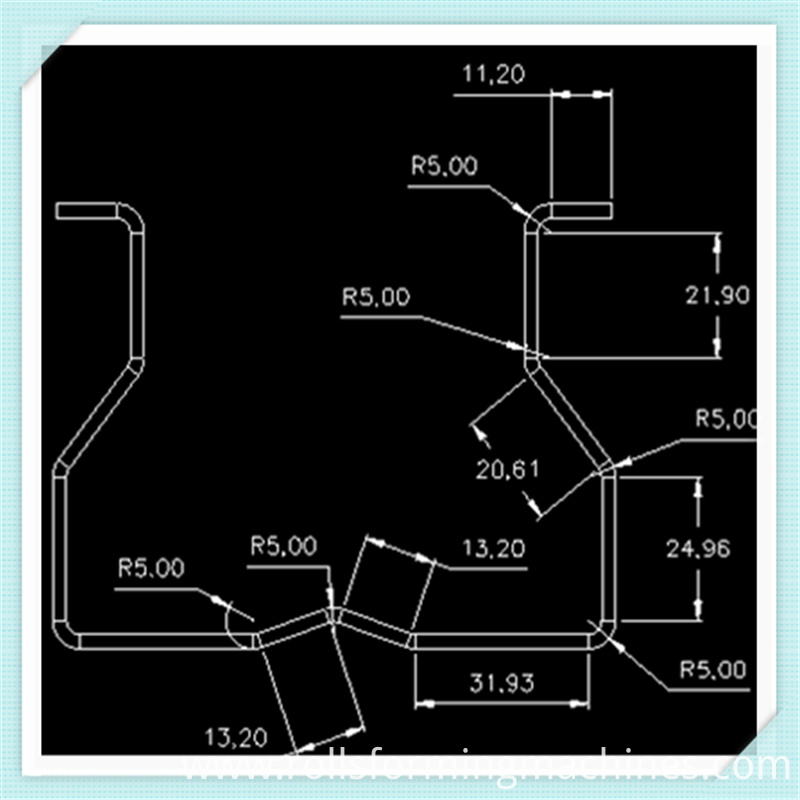

De-coiling→Leveling→Material feeding →Punching→Roll forming→ Straightening→Cutting off→Finished product running out Profile drawing


The component of Steel Racking Machine:

This machine buildup by de-coiling (mainly consists of un-coiler and its base), gearing rigging, roll stand and main machine, pressuring system, cutting equipment, hydraulic system, control system, and product supporter.

Quickly parameter:

Description

Introduction

Working efficiency

5-8m/min(not include cutting time)

Thickness of Material

2-3mm

Control system

Panasonic PLC

Uncoiler system

5Ton Manual Operation

Side- wheel

7 Sets

Servo feeding

1 set

Servo feeding power:

3.0kw

Punching

80T[70 times/min]

Forming by rolling

Roll 18 times

Roller material

GCR15 Aluminium processing after quenchin HRC58-62degree,

Chrome plated

Shaft and the

diameter of axle

45#Aluminium-processing ,diameter of axle=80mm

Main part power

18.5kw

Hydraulic motor power

5.5kw

Hydraulic pressure

12Mpa

Scissor material

Cr12Mov, herd steel HRC 58-62 degree

length tolerance

3m±1.5mm

voltage

380V, 50HZ,3 phase

(adjustable by customer needs)

Frame form

arch type

Driving Method

Gear driving

Color

Yellow and blue(adjustable)

Size

length*Width*Height - 20*1.3*1.2m

Package

Nude package in 2*40GP container

Delivery date

60 working days

Payment Method

30% T/T in advance and balance 70% after inspection

confirmation before shipment.


More pictures of Racking Roll Forming Machine for you reference:

Steel Racking Machine

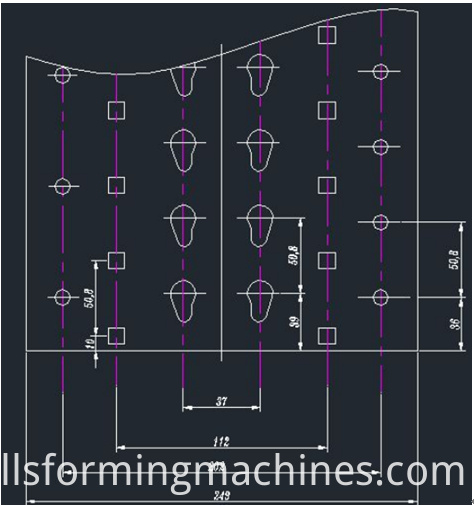

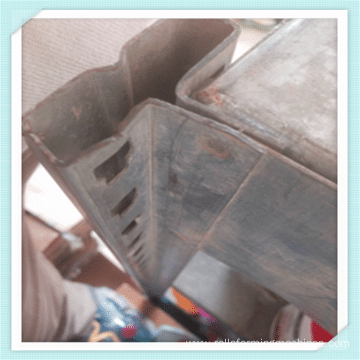

punching holes drawing profile

pillar machine

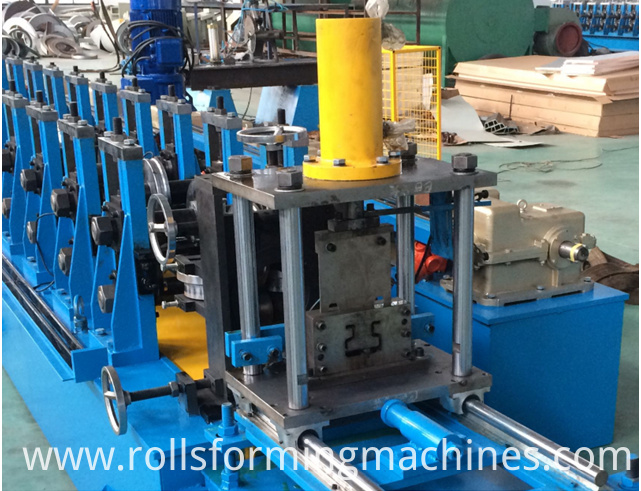

Racking Roll Forming Machine


Racking Roll Forming Machine


Steel Racking Machine

Steel Rack Machine


Other informations of Steel Racking Machine


1. Payment terms :30% T/T in advance and balance 70% after inspection confirmation before shipment.

2. Packing Nude packing with 1*20GP container

3. Warranty One year, and we will provide the technical support for the whole life.

4. Installation

1).Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.

2). Need one technician

3). Training time: one week (contains the time of installation and adjustment)


Looking for ideal Steel Racking Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Rack Machine are quality guaranteed. We are China Origin Factory of Racking Roll Forming Machine. If you have any question, please feel free to contact us.
