Market shelf pillar roll forming machine

    Payment Type: L/C,T/T,D/P,Western Union
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: cnzt002

Type: Cold Bending Equal Channel

Shape: C Channel

Perforated: Perforated

Length: 6-19m

Drive Mode: Gear Box

Matching Material: G.I Or M.S

Material Thickness Range: 1.2-1.8mm

Quantity Of Stands: About 16

Controlling System: PLC

Total Weight: 8 Tons

Voltage: Customize

Speed: 20 M/min

Main Motor Power: 18.5 Kw

Hydraulic Station Power: 5.5 Kw

Additional Info

Packaging: As the Customer's Requirement

Productivity: 20 m/min

Brand: ZHONGTUO

Transportation: Ocean,Land,Air,as customer requirem

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: CE\ISO9001

Product Description

Market shelf pillar Roll Forming Machine

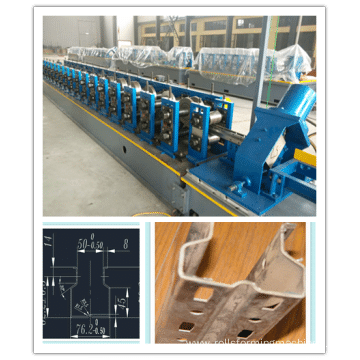

Manufactured from customer special drawing profile, this upright pillar simply clip to your existing or new racking without the need for further fixings. This range of rack upright protectors is suitable for us in temperatures as low as -40 degrees and is fully recyclable and non toxic. With various types punching holes, it is beautiful in appearance and light in weight. Meanwhile it can help you do easy fixing.Market shelf pillar rolling machine can help you do the shelf pillar production in batch. Here is a drawing profile of market shelf pillar for your reference:

drawing profile of market shelf pillar

For the shelf pillar machine design plan, we use the following elements and parameters.
Components of this shelf pillar production line:
1. Hydraulic decoiler 3 ton 1 set
2. Punching system 64 ton 1 set
3. Coil feeder 1 set
4. Leveling Machine 1 set
5. Roll Forming 1 set
6. Hydraulic Cutting 1 set
7. PLC Control System 1 set
8. Hydraulic Station 1 set
9 .Run-out Table-(Un-powered) set

For some key elemetns, here are some introductions:

Each parts of the production line

1. Hydraulic decoiler:
3 Ton passive de-coiler with brake device
Outside diameter of coil: 550 mm

Inside diameter of the coil: 450 mm

hydraulic decoiler


2. Leveling system and coil feeder of market shelf pillar rolling machine:

After punching holes, the coil feeder can help feed the coil to the machine smoothly and feed coil at same working speed.

leveling system


3. Main forming machine Market shelf pillar roll forming machine :
1) Forming steps: 18 steps
2) Outer diameter: 70mm
3) Machine frame (type): memorial arch frame, Thickness of memorial arch frame: 30mm
4) Roller information:
A. Raw material: GCr12MoV
B. Quenched degree: 56-58°C
5) Shaft material: 45# steel with heat treat and hard chrome plated on the surface
6) Main motor power: 18.5kw, Reducer ratio: 1:14,
Reducer Type: Hardened reducer

shlef pillar machine

For the runout table of Market shelf pillar roll forming machine:

rounout table


For this Market shelf pillar roll forming machine, the followings is a video to show more details.


name card



Looking for ideal Market Shelf Pillar Rolling Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Shelf Pillar Machine are quality guaranteed. We are China Origin Factory of Roll Forming Machine. If you have any question, please feel free to contact us.
