Zhongtuo Roll Forming Machinery Co., ltd

Steel Racking Roll Forming Machine
Steel Racking Roll Forming Machine
Steel Racking Roll Forming Machine
Steel Racking Roll Forming Machine
Steel Racking Roll Forming Machine

Steel Racking Roll Forming Machine

Payment Type: L/C,T/T,D/P,D/A
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 25 Days

Contact Now

Basic Info

    Model No.: ZT-005-20

    Name: Steel Racking Roll Forming Machine

    Roller Material: Gcr15

    Shaft Material: 45#steel

    Power: 7.5kw

    Drive: Gear Or Chain

Additional Info

    Packaging: as you need

    Productivity: 6m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: CE, ISO9001

Product Description

Steel Racking Roll Forming Machine

Steel Racking Roll FormingMachine adopts servo controlled material feeding technology for complex punching to guarantee precision. This storage rack roll forming machinery also adopts track cutting technology to ensure the machine capacity and gear box transmission and ensure the machine`s rigidity and working strength. Racking Roll Forming Machine is also known as shelf roll forming machine, shelving rack roll forming machine, shelving roll forming machine or shelves rack roll forming machine. This storage rack roll forming machinery is composed of automatic decoiler, guiding device, leveling and feeding device, punching unit, molding parts, fly shearing system, run-out table, electronic control system and hydraulic system.

Racking Roll Forming Machine

Racking Roll Forming Machine workflow :

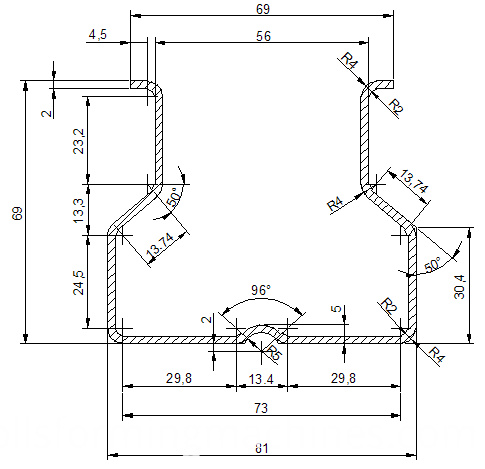

De-coiling→Leveling→Material feeding →Punching→Roll forming→ Straightening→Cutting off→Finished product running out Profile drawing

The component of Steel Racking Machine:

This machine buildup by de-coiling (mainly consists of un-coiler and its base), gearing rigging, roll stand and main machine, pressuring system, cutting equipment, hydraulic system, control system, and product supporter.

Quickly parameter:

Raw material :Q 235,galvanized steel plate

Steel plate thickness:0.8-2.0 mm

Steel plate width about: 235 mm (according to final profile)

Steel coil ID: Ф508±10 mm

Steel coil OD: ≤Ф1300 mm

Coil weight :≤3000 kg

Set length 2000~6000 mm

Machine operation speed :6 m/min

Electric power :380 V±10%;50 HZ(as you need)

More pictures of Racking Roll Forming Machine for you reference:

Steel Racking Machine

Racking Roll Forming Machine

Racking Roll Forming Machine

Steel Racking Machine

Steel Rack Machine

Other informations of Steel Racking Machine

1. Payment terms :30% T/T in advance and balance 70% after inspection confirmation before shipment.

2. Packing Nude packing with 1*20GP container

3. Warranty One year, and we will provide the technical support for the whole life.

4. Installation

1).Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.

2). Need one technician

3). Training time: one week (contains the time of installation and adjustment)

Looking for ideal Steel Racking Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Rack Machine are quality guaranteed. We are China Origin Factory of Racking Roll Forming Machine. If you have any question, please feel free to contact us.

Product Categories : Racking Roll Forming Machine
