Highway Guardrail Steel Sheet Roll Forming Machine


Highway Guardrail Steel Sheet Roll Forming Machine is the equipment to press, through rolling and cold bending, the colored steel sheet with thickness of 0.3-1.0mm into two waves pattern sheet. The machine is suitable for the use of highway guardrail and has the following characteristic: light weight, high strength, rich colors and being earthquake-proof and fireproof, etc. Now the machine is widely used. It has advantage of pretty appearance, durable using ,longlife ,low energy consumption and so on.

Final products and profile:

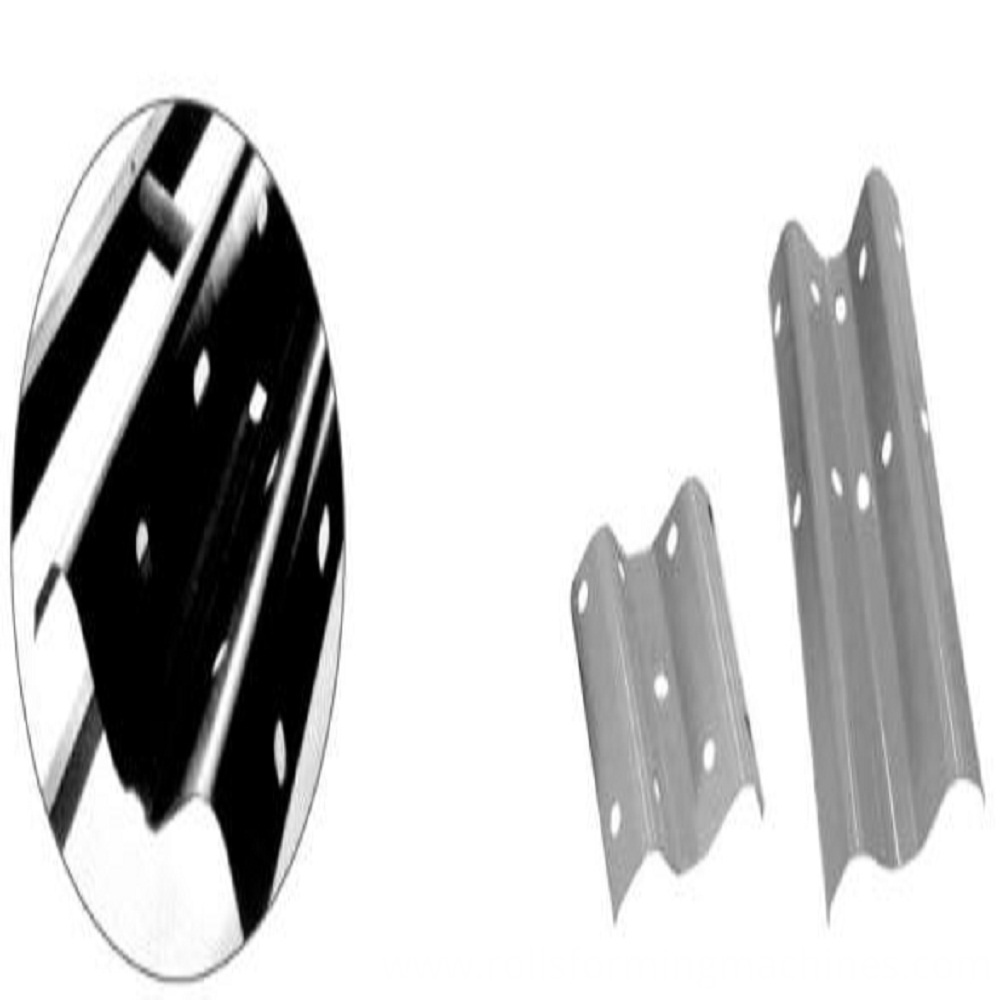

Final productsprofile of guardrail sheet

Highway Guard Rail Machine Process Flow:

Uncoiling→Feeding material into machine→Punching → Roll forming→Measuring length→ Auto cutting→Products receiving

work process

Components of Guardrail Steel Sheet Roll Forming Machine

Suitable Material Type:GI/PPGI/AL

coil width:488mm

Length Tolerance:±2mm/6m

Working Speed:25 m/min Standard machine

Total Power: 30KW

Total Weight: About 15T Up to final design

Un-coiler System

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system


Coil feeding part of Highway Guardrail Roll Forming Machine

Usage: Put the raw material leveling by 9 rollers four up and five down. GCR15 45#steel raw materials with quenched treated ,diameters is 95mm.(steel plate) through the beach to manufacture and process,it can guarantee that the prod

ucts are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of lo

cate angle iron.


Punching device

Hydralic punching .Raw materail cr12 treated with quenched .


Feeding rack


Forming device

Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain

transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when

it is working

roll forming

Length of the main part:18500*1200*1500mm

Weight of main part:About 15 t

Voltage:380V/50HZ3Phase (as customer`s request)

Roller fixer:Guide column

Frame:Middle plate welded ,Memorial arch frame type

Frame thickness:25mm

Drive mode:case of different speed

Material of rollers:45# steel with tempering

Material of shafts:45# steel with tempering

Diameter of shafts:φ95mm

Number of rollers:16rollers

Main power:30kw (Cycloidal planetary gear speed reduce

Drive mode : case of different speed

different speed box transimission

Cutting device

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety



Spare parts ( for free)

1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;

2. Rubber mat 1 pcs;

3. Bolt spanner 1 pc

packing list:

Looking for ideal GuardRail Sheet Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Guardrail Steel Sheet Roll Forming Machine are quality guaranteed. We are China Origin Factory of Highway Guard Rail Machine. If you have any question, please feel free to contact us.
