Zhongtuo Roll Forming Machinery Co., ltd

Steel Roof Trapezoid Panel Roll Forming Machine
Steel Roof Trapezoid Panel Roll Forming Machine
Steel Roof Trapezoid Panel Roll Forming Machine
Steel Roof Trapezoid Panel Roll Forming Machine
Steel Roof Trapezoid Panel Roll Forming Machine

Steel Roof Trapezoid Panel Roll Forming Machine

Unit Price: USD 25000 - 6500 / Bag/Bags
Payment Type: L/C,T/T,D/P,Western Union
Min. Order: 1 Bag/Bags
Delivery Time: 45 Days

Contact Now

Basic Info

    Model No.: zt-003-149

Additional Info

    Packaging: nude packing

    Productivity: 30 Sets per month

    Brand: zhongtuo

    Transportation: Ocean

    Place of Origin: china

    Supply Ability: 30 sets per month

    Certificate: CE ISO9001

Product Description

Steel Roof Trapezoid Panel

Roll Forming Machine

roof panel roll forming machine (37)

Product name

Steel Roof Trapezoid Panel Roll Forming Machine



















Any length

Length Tolerance



Working Speed

25 m/min (10 piece per min as 8 feet per piece)

Standard machine


Control System

Mitsubishi/Siemens PLC& transducer



Total Power



Total Weight

About 3.8T

Up to final design

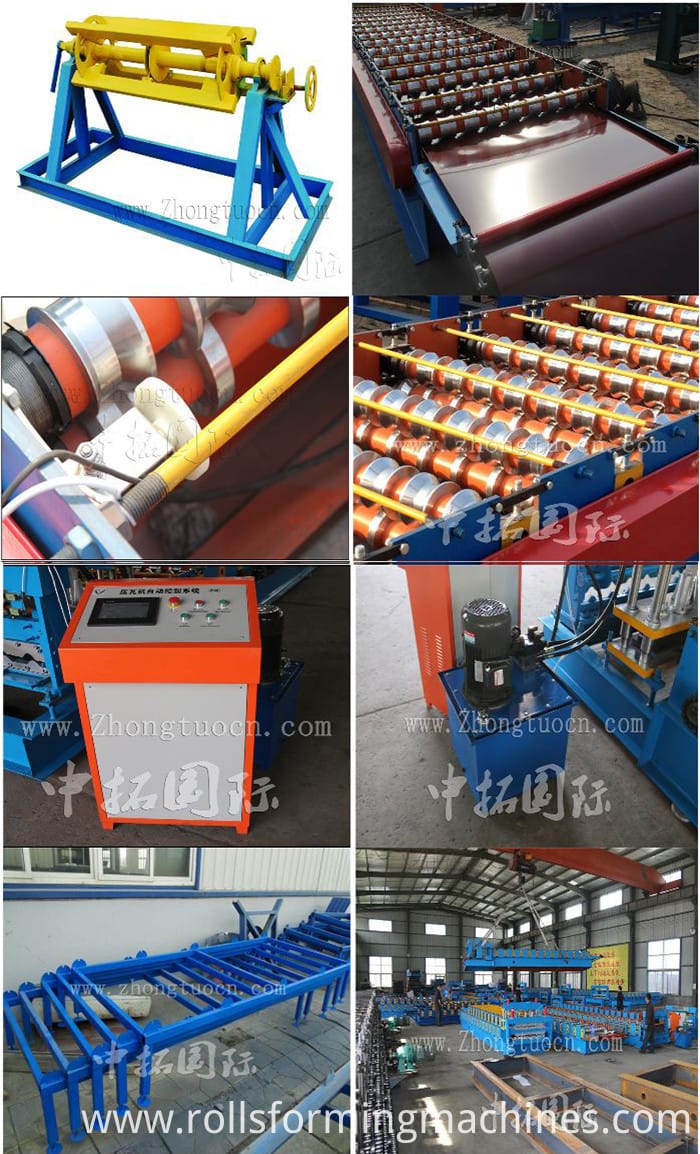

Production process of Trapezoid Panel Machine:

Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Step formed→ Auto cutting→Products receiving

Length of the main part:About8500х1650х1500mm

Weight of main part:About 5.5 t

Voltage:380V/50HZ3Phase (as customer`s request)

Roller fixer:Middle plate welded

Frame:350 H steel welded

Frame thickness:16mm

Drive mode:Chain

Material of rollers:45# steel, surface hard chromium plating.

Material of shafts:45# steel

Diameter of shafts:Φ80mm

Number of rollers:15 rollers

Main power:5.5kw

Packing and shipping:

Packaging Details: 1. one 20ft container for loading one set machine with Manual Decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed by steel wire with Container.
Delivery Detail: 45 days after receipt of buyer's deposit



a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine,and also train your workers/technician face to face.

b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

2.After Sevice

3.a.One year guarantee for whole machine.

b.24 hours technical support by email or calling

c.If there is any problem found of the machine, we will repair it for free in one year.

Company information

factories and associated nterprises, concerning with the design, development and production of cold roll forming machines,material of building.

It is located in northwest of CangZhou, as a long history of cold roll forming machine production base. All products comply with international quality standards

and are greatly appreciated in variety of different markets throughout the world, such

as Asia, Africa, Europe,South America, and Australia and so on.

company information

Looking for ideal Trapezoid Panel Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Roll Forming Machines are quality guaranteed. We are China Origin Factory of Roof Metal Sheet Machine. If you have any question, please feel free to contact us.

Product Categories : Roofing Sheet Roll Forming Machine > Glazed Tile and Ridge Cap Roll Forming
