Zhongtuo Roll Forming Machinery Co., ltd

CU 50-150 profile making machine with punching
CU 50-150 profile making machine with punching
CU 50-150 profile making machine with punching
CU 50-150 profile making machine with punching
CU 50-150 profile making machine with punching

CU 50-150 profile making machine with punching

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now Add to Basket

Basic Info

    Model No.: zt-010

    Length Of The Main Part: 9500-1650-1500mm

    Weight Of Main Part: 6.8 T

    Voltage: As Customer Required

    Roller Fixer: Middle Plate Welded

    Frame: Guide Pillar And The Thickness Is 50mm

    Frame Thickness: 25mm

    Drive Mode: Gear

    Material Of Rollers: 45# Steel,surface Hard Chromium Plating

    Material Of Shafts: 45# Steel

Additional Info

    Productivity: 8-22m/min

    Brand: ZhongTuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: ISO9001, CE

    Port: TIANJIN

Product Description

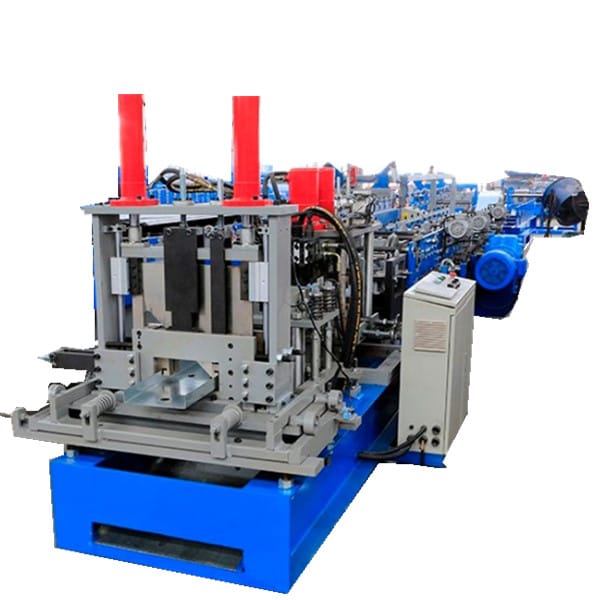

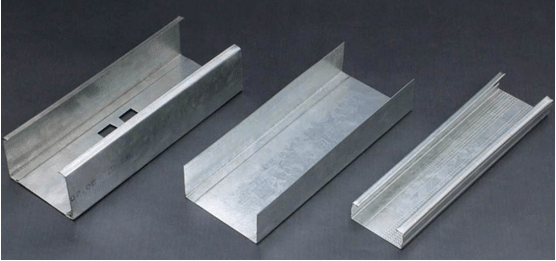

Stud and track machine CU 50-150 profile making machine with punching

For the combined Galvanized Steel Metal Stud and Track Roll Forming Machine, it is designed for House Building, we have two types: one is made by adjusting spacer and the other we make two separated machines by different shaft and rollers. When you want to save machine cost, please choose the first option. When you need to do huge production, please choose the second options Stud and track machine CU 50-150 profile making machine.

In the following part, I will introduce the second types:

1

The machine of Stud and track machine CU 50-150 profile making machine allows you to make the sizes from 50 to 150 width range adjustment by the PLC. The punching is also adjustable by PLC. The machine working speed can reach 45 meter per minutes.

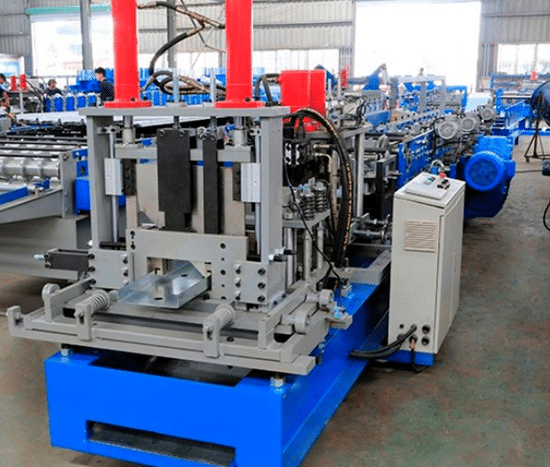

Here is the Stud and track machine CU 50-150 profile making machine for your reference:

2


The advantages of Stud and Track Roll Forming Machine with size-quick- change type are as follows:

1. Produce different purlin size without changing rollers or spacers.

2. No need changing cutter for different size.

3. Easy operation, low maintenance cost

4. Infinite sizing (any size within machine range),help to save material

5. Optional Punch hole at any position of purlin web side and flange side

3

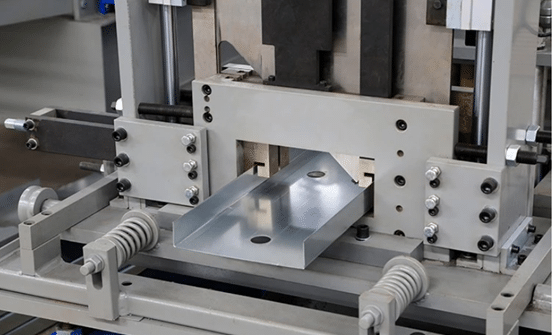

CU stud and track machine post cutter

No need to change cutter for different size, made by high quality mold steel Cr12 with heat treatment

Cutter frame made from high quality 30mm steel plate by welding

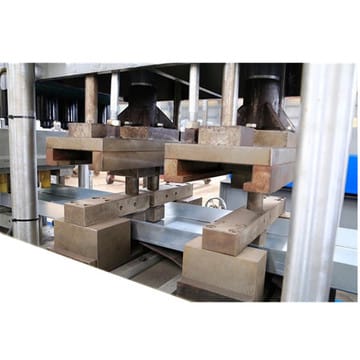

Pre-punching & Pre-cutting, stop to punch, stop to cut hydraulic motor:4KW, Hydraulic pressure range: 0-16Mpa

4


Other details of Stud and Track Roll Forming Machine for CU50-150 profile

Suitable for material with thickness 0.8-2.0mm

Shafts manufactured from 45#,

Main shaft diameter=φ70mm, precision machined

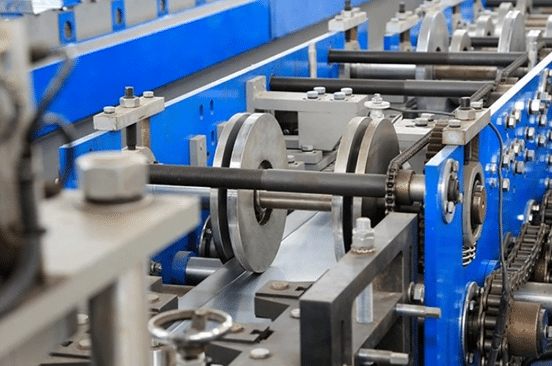

Motor driving, Gear chain transmission, about 18 rollers to form.

Main motor=7.5KW, Frequency speed control. Forming speed approx.18m/min

PLC Control System (Touch screen

Just adjust required WEB, HEIGHT and LIP by hand wheel with the help of

Position clock (with digit display for easy operation) on it,

And then input the required production data on the touch screen.


FAQ:

1.Does one Stud and track machine CU 50-150 profile making machine with punching can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

Looking for ideal Stud and track machine CU 50-150 profile making machine with punching manufacturer & supplier ? We have a wide selection at great prices to help you get the target product. If you have any question, please contact us.
