Zhongtuo Roll Forming Machinery Co., ltd

Square downpipe rain pipe rolling forming machine
Square downpipe rain pipe rolling forming machine
Square downpipe rain pipe rolling forming machine
Square downpipe rain pipe rolling forming machine
Square downpipe rain pipe rolling forming machine

Square downpipe rain pipe rolling forming machine

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now Add to Basket

Basic Info

    Model No.: zt-010

    Length Of The Main Part: 9500-1650-1500mm

    Weight Of Main Part: 6.8 T

    Voltage: As Customer Required

    Roller Fixer: Middle Plate Welded

    Frame: Guide Pillar And The Thickness Is 50mm

    Frame Thickness: 25mm

    Drive Mode: Gear

    Material Of Rollers: 45# Steel,surface Hard Chromium Plating

    Material Of Shafts: 45# Steel

Additional Info

    Productivity: 8-22m/min

    Brand: ZhongTuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: ISO9001, CE

    Port: TIANJIN

Product Description

Square downpipe rain pipe rolling forming machine

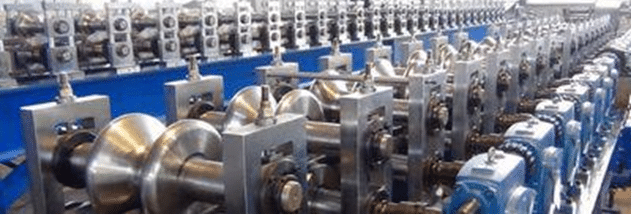

Zhongtuo downspout pipe making machine could be used to make downspout pipes in a higher speed and good quality by 16 years in this area. For this machine, we take guide column frame style to make machine for making sure machine working speed and steady. And for the transmission, we will use gearbox with chain. The machine will be totally same as the following pictures shows.


1

2


Working process of the downspout Roll Forming Machine:

Decoiler ----feeding ----roll forming----press of the mould ----shearing ----formed products


3



Main elements of the downspout roll forming machine:

Decoiler

Usage:passive feeding,manual tension bridle. It will be used for supporting the coil.

Capacity:3T


4



Leveling system:

Usage: when coil input, leveling system will level it to make it clean and straight as from coil, it will be a little curve. Curving will affect the pipe making accuracy.


Main roll forming system of downspout roll forming machine:

The machine was composed by the following elements: passive decoiler, one set of main forming machine, one set of hydraulic shearing station, one box of computer control station, one hydraulic oil box, two set of receiving area, one set of bending station.

7
5


Downspout Pipe Bending Machine

Brief introduction:

For the straight downspout pipe and elbow pipe cannot be made by one machine. When you need to make the elbow, you need to use this pipe bending machine.

The following are some information for your reference:

1.Control style:the high voltage control

2.Supported material: Colored steel panel with thickness of 0.8mm

6


FAQ:

1.Does one Square downpipe rain pipe rolling forming machine can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?

Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.




Looking for ideal Square downpipe rain pipe rolling forming machine manufacturer & supplier ? We have a wide selection at great prices to help you get the target product. If you have any question, please contact us.
