Sleet Bolt Roll Fomring Machine

    Payment Type: L/C,T/T,D/P,Western Union,D/A
    Incoterm: FOB,CFR,CIF,CIP
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: ZT-005-206

Application: Structure Pipe

Technique: Cold Rolled

Material: Carbon Steel

Size: 4500х1800х1400m

Weight: 5 Tons

Diameter Of Shafts: Φ70mm

Number Of Rollers: 11 Rollers (5 Level, 6 Vertical)

Main Power: 15kw

Additional Info

Packaging: as customer requirem

Productivity: 25m/min

Brand: ZHONGTUO

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: CE, ISO9001

Product Description

Sleet Bolt Roll Fomring Machine

Advantage of our Sleet Bolt Roll Fomring Machine :

1. Sleet Bolt Roll Fomring Machine is controlled by PLC control system ,during normal work,it will more security.

2. The basic of Steel Anchors Pipe Making Machine is guide column.

3.Transmission structure for the gear box. Each rack has a gear box molding can ensure that equipment over time, high-intensity running, and long service life.

Steel Anchors Pipe Making Machine

Basic information of Sleet Bolt Roll Fomring Machine :

Process: decoiler--feeder--roll former--cutting and punch the line--run out table---necking

Decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Passive uncoil pulled by roll forming system

Loading capacity: 3T

Uncoiling width: 300mm

Inner diameter: 450-550mm

decoiler

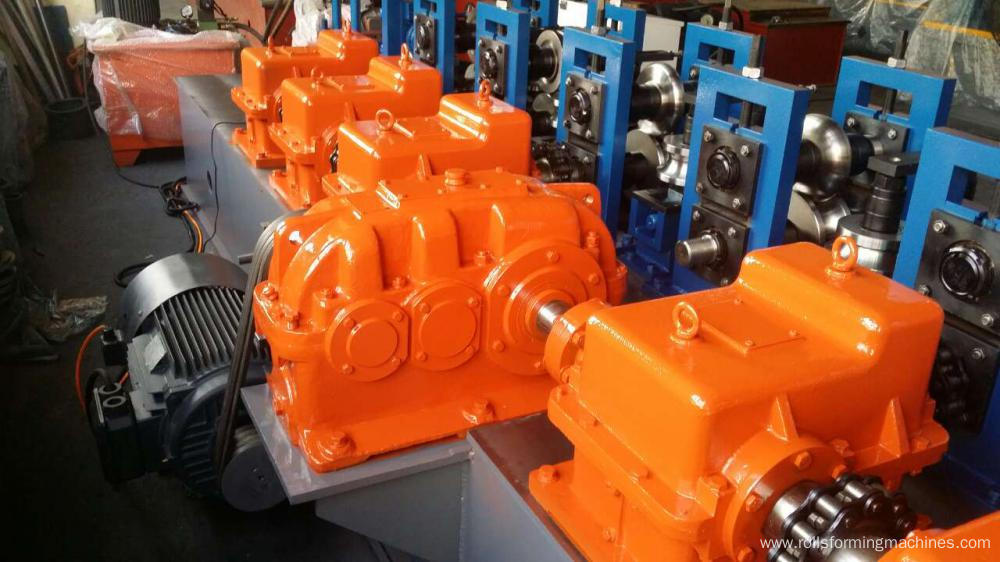

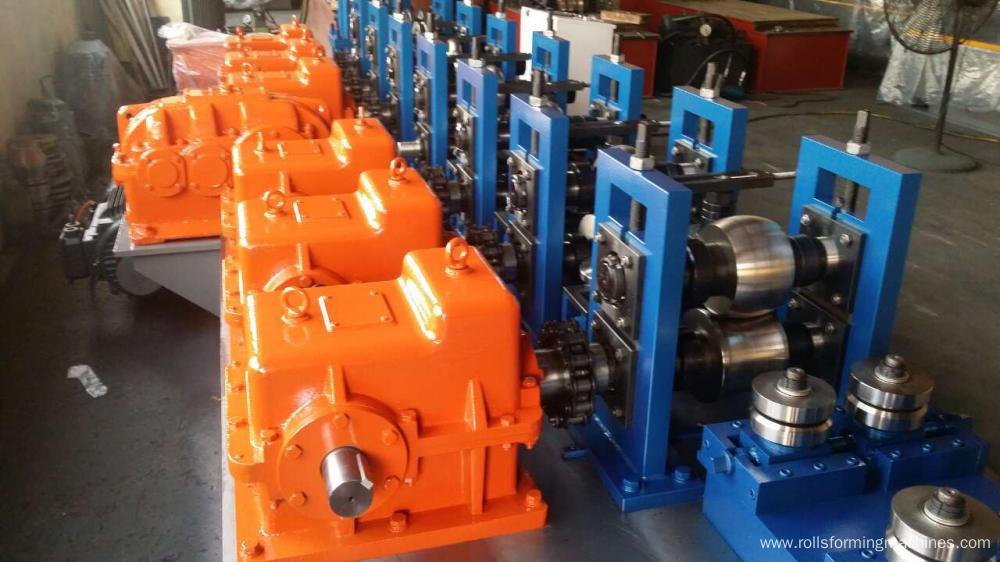

Roll Forming Machine


Size: 4500х1800х1400mm

Weight : 5 tons

Voltage:380V/50HZ3Phase(as customer`s request)

Roller fixer : Vertical arch

Frame : middle plate welded

Memorial arch frame type

Frame thickness:25mm

Drive mode: Differential box

Material of rollers: GCr12MoV

Material of shafts: 45# steel with tempering

Diameter of shafts: φ70mm

Number of rollers : 11 rollers (5 Level, 6 Vertical)

Main power: 15kw

Cycloidal planetary gear speed reducer)

Speed: 25m/min

Steel Anchors Pipe Making Machine

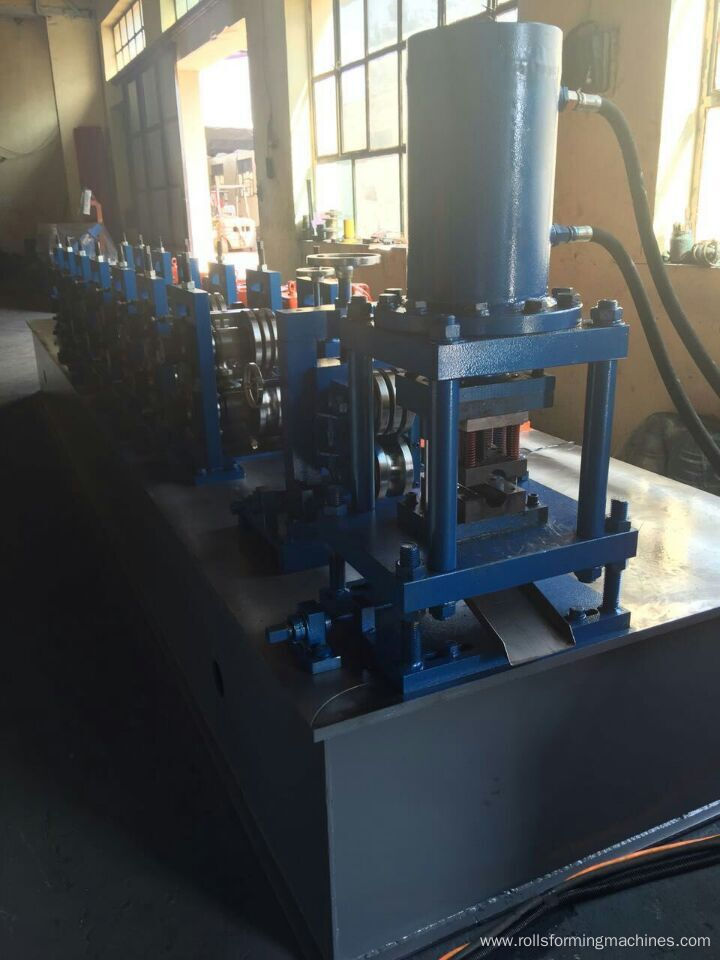

cutting and punch the line

Material of blades: Gcr12MoV quenched

Power supply : hydraulic power

Frame : Pillar style with rack & pinion system

Stroke switch : non-contact photoelectric switch

Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.

Shearing system	Material of blades: Gcr12MoV quenched Power supply : hydraulic power Frame : Pillar style with rack & pinion system Stroke switch : non-contact photoelectric switch Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.



Hydraulic station

Hydraulic motor Power: 3kw

Hydraulic oil: 46#

Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.

Hydraulic station

PLC station Feature:

1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2.Other electric element are Delta

3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

PLC for Anchors Pipe Making Machine

Necking machine

Mould Material : Gcr12MoV quenched

punching Power:5.5kw

Punching:42T

Necking machine

Punching the plate:

Mould material : Gcr12MoV quenched

punching power:4kw

Punching:25T

Punching machine for 3.8mm plate

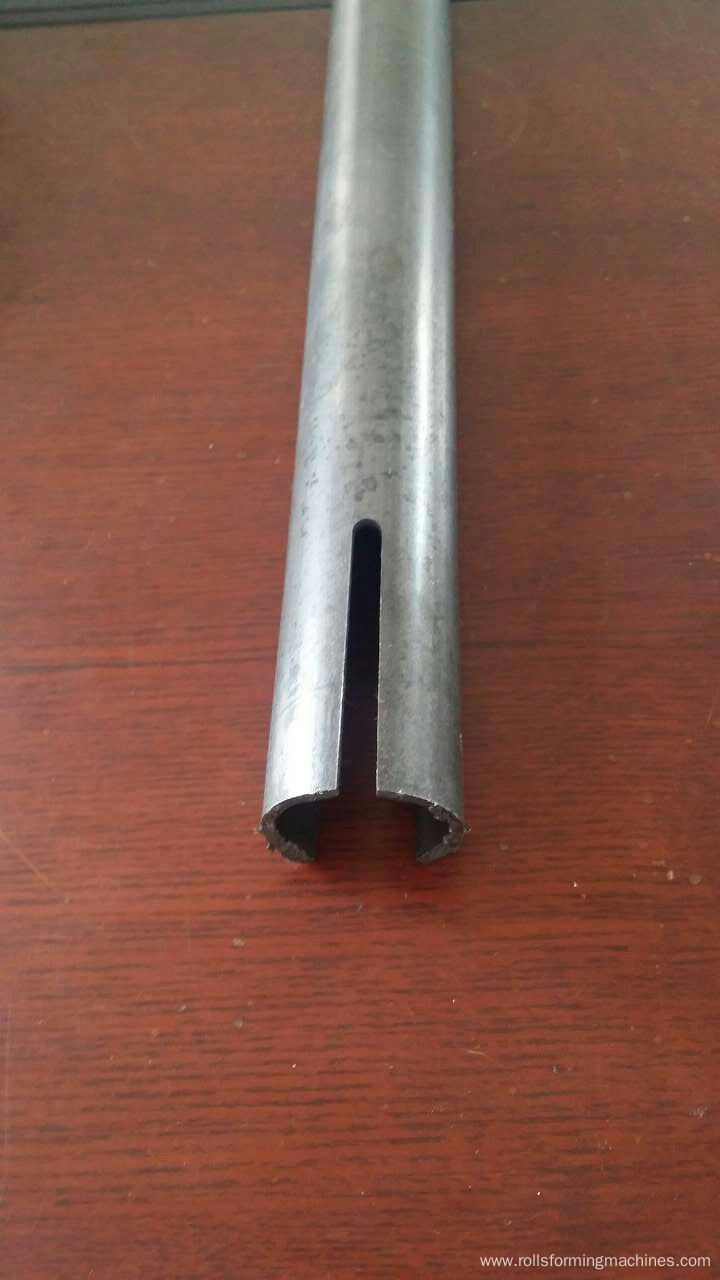

Final product for you reference:

Steel Anchors Pipe Making Steel Anchors Pipe Making

Steel Anchors Pipe

1,Delivery date :45 working days

2,Payment terms: Payment: 30% T/T in advance and balance 70% after, Inspection confirmation before shipment.

Delivery: within 45 working days after receipt of deposit

Looking for ideal Bolt Roll Fomring Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Anchors Pipe Making Machine are quality guaranteed. We are China Origin Factory of Sleet Bolt Machine. If you have any question, please feel free to contact us.
