Zhongtuo Roll Forming Machinery Co., ltd

Metal Embossing Machine
Metal Embossing Machine
Metal Embossing Machine
Metal Embossing Machine
Metal Embossing Machine

Metal Embossing Machine

Unit Price: USD 20000 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB,CFR,CIF
Min. Order: 1 Set/Sets
Delivery Time: 35 Days

Contact Now Add to Basket

Basic Info

    Model No.: ZT-004

    Product Name: Metal Sheet Embossing Machine

    Voltage: 380V 50Hz 3Phase/Customized

    Weight: 3.5t

Additional Info

    Productivity: 30sets/month

    Brand: zhongtuo

    Transportation: Ocean,Land

    Place of Origin: China

    Supply Ability: 30 sets per month

    Certificate: CE\ISO9001

Product Description

Metal Embossing Machine


Metal Embossing Machines are mainly for producing embossed aluminum and steel roll. metal embossing machine is suitable for metal sheet, particle board, decorated materials, and so on. The pattern is clear and has strong third-dimension. It can be assorted with the embossing production line

The main parts of this Metal Embossing Machine:

Uncoiler, embossed host, recoiler, electrical control station

Here is our pic for your reference:

metal sheet embossing machine

Standard parameters of this line

model

ZT-S1000

ZT-S1400

ZT-S1600

ZT-S1900

Overall size(mm)

2900*1200*1500

3300*1200*1500

3500*1200*1500

3800*1200*1500

Roller size

φ350*1000mm

φ380*1400mm

φ400*1600mm

φ450*1900mm

Material of roller

42CrMo

42CrMo

42CrMo

42CrMo

Roller hardness

HRC55-58

HRC55-58

HRC55-58

HRC55-58

Way of embossing

Both up and down rollers embossing at same

Both up and down rollers embossing at same

Both up and down rollers embossing at same

Both up and down rollers embossing at same

Embossing regulation

By screw

By screw

By screw

By screw

Motor power(KW)

7.5

11

15

15

Line speed

0-18m/min

0-30m/min

0-40m/min

0-45m/min

Detailed parameters of this metal embossing machine line

1. Roller specifications: DIA450~500mm, width: 1000~1800mm.

2. Take the roll surface hard chromium plating

3. Suitable for pressing plate: 2-6 mm

4. Frame steel plate welded structure, polished, tempering, machining, solid wall plate Q235 90 mm thick

5. Pattern processed by laser engraving.

6. The pattern making: according to the buyer to provide the sample pattern

7. Pressure mode: hydraulic 50~100T.

8. Working speed: 1~20m/min, speed changed by frequency converter .

9. Voltage 380V/50Hz/3PH

10. Safety shield shell

11. Generous beauty of appearance

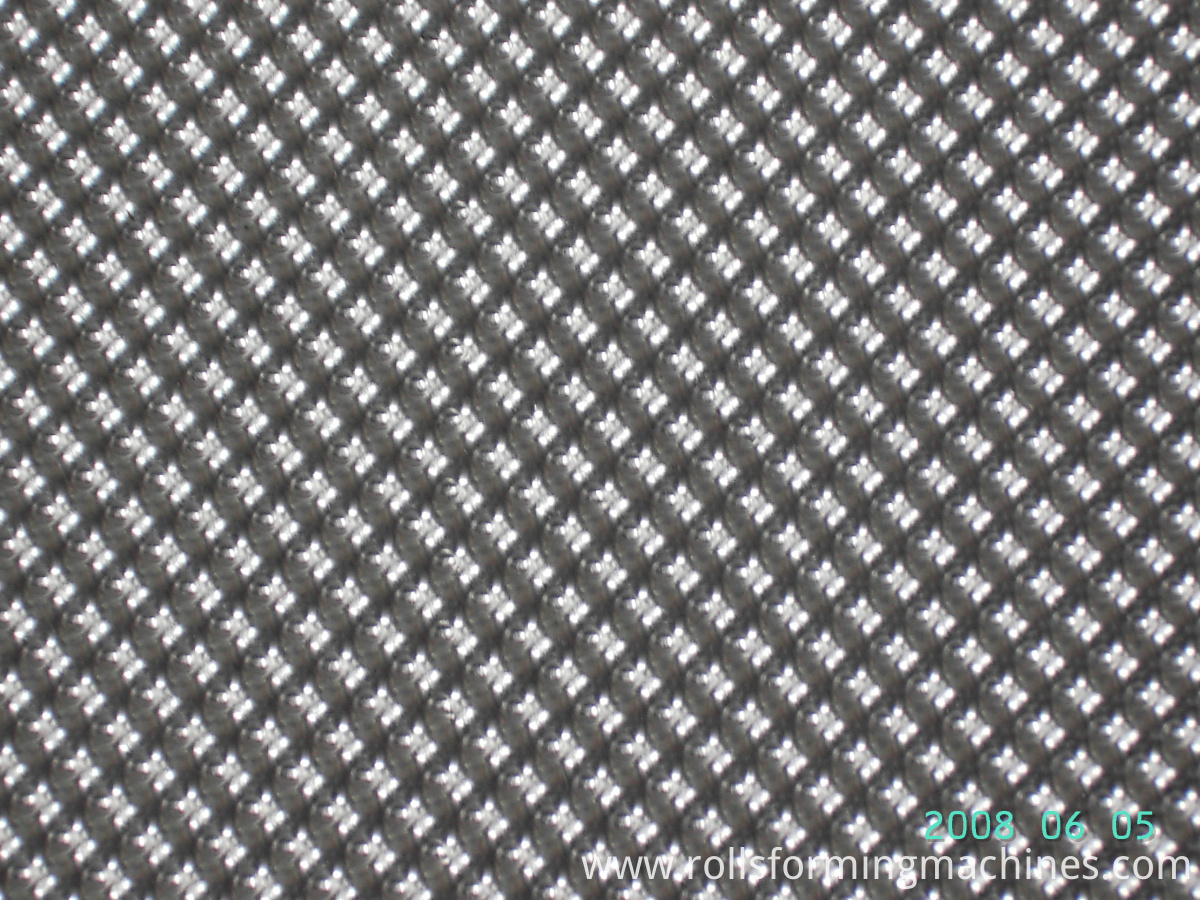

Here are some pics of embossing pattern for your reference:

metal sheet embossing machine


IMG_1560

metal sheet embossing machine
