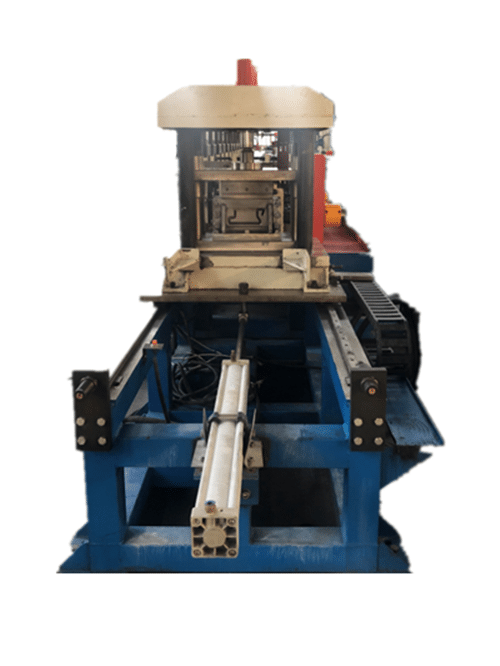

Shipping living  Container house frame making machine
Shipping living  Container house frame making machine
Shipping living  Container house frame making machine
Shipping living  Container house frame making machine
Shipping living  Container house frame making machine

Shipping living Container house frame making machine

Payment Type: L/C,T/T,D/P
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 45 Days

Contact Now Add to Basket

Basic Info

    Model No.: zt-010

    Length Of The Main Part: 9500-1650-1500mm

    Weight Of Main Part: 6.8 T

    Voltage: As Customer Required

    Roller Fixer: Middle Plate Welded

    Frame: Guide Pillar And The Thickness Is 50mm

    Frame Thickness: 25mm

    Drive Mode: Gear

    Material Of Rollers: 45# Steel,surface Hard Chromium Plating

    Material Of Shafts: 45# Steel

Additional Info

    Productivity: 8-22m/min

    Brand: ZhongTuo

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 30 sets/month

    Certificate: ISO9001, CE

    Port: TIANJIN

Product Description

Australian specification standards shipping living Container house frame making machine

Australian specification standards shipping living container house frame making machine is designed to make the container house frame in batch and fully automatic.

What is the living container house?

The container house is a building system that once again hits the fashion trend, and can be moved to various places anytime and anywhere, bringing people a more convenient and comfortable life. The solar photovoltaic panel can be used for indoor electricity, the solar water heater can be heated and supplied with water, and the indoor shower and domestic water are discharged by the sewage treatment system for reuse. Depending on the number of people, container houses of different sizes can be made.

1


In this article, I will take one part, the container house pillar frame for example to show you how the machine makes it.

2


Container house frame making machine we design like following:

3


Features of Australian specification standards shipping living container house frame making machine:

1.It uses the gearbox as transmisson to make sure the power could be given evenly.

As the material thickness could reach 4.0mm, the machine should be strong enough to make it work.

2.It uses the hydraulic molding cutting to make sure the shape will be not changed.

3.The molds will be processed accurately to make sure the shape accurately and beautiful.

4.The container house frame pillar machine working speed can reach 25 meter per minute.

All the brand of the motor and PLC, we use the world famous and then it can make sure the working good effect.

Here is some container house frame making machine parameters for your reference:

Product raw material: galvanized sheet

Thickness: 3.0~4.0mm

Strength: Q235

Composition:

a. 5T*600mm horizontal simple material rack (one load 5T, no power);

b. Feeding positioning device sleeve; (including double roller tray)

c. Five-roll leveling device sleeve;

d. Forming the host platform; (compressible and non-compressible)

e. The main unit consists of 26 rolls;

Shaft diameter: 95 mm quenching and tempering finishing

Roller material is GCr15 heat treatment finishing, the roller is completely blackened, and the forming speed is 15m/min;

f. Wu roll shaping device;

g. Hydraulic control center ; sleeve; (power: 55KW, with air conditioning cooling device)

h. Hydraulic back punching device;

Including: punching combined mold sleeve;

i. Hydraulic forming shearing device;

Blanking shear, shearing tool material: Cr12MoV, heat treatment;

j. System components: PLC, touch screen (Delta), encoder (OMRON), etc.;

Shear length tolerance ± 2.0mm.

k. Finished workbench sets. (No power, 3 meters long)

4


5

Here are some container house finished products for your reference:

6


7

FAQ:

1.Does one Australian specification standards shipping living Container house frame making machine can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.
