Zhongtuo Roll Forming Machinery Co., ltd

EPS sandwich panel roll forming machine PU coated roofing tile sandwich forming machine
EPS sandwich panel roll forming machine PU coated roofing tile sandwich forming machine
EPS sandwich panel roll forming machine PU coated roofing tile sandwich forming machine
EPS sandwich panel roll forming machine PU coated roofing tile sandwich forming machine
EPS sandwich panel roll forming machine PU coated roofing tile sandwich forming machine

EPS sandwich panel roll forming machine PU coated roofing tile sandwich forming machine

Unit Price: USD 38000 - 480000 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union,D/A
Incoterm: FOB
Min. Order: 1 Set/Sets
Delivery Time: 40 Days

Contact Now

Basic Info

    Model No.: ZT-009-20

    Material: Color Steel Plate

    Type: Plain Roof Tiles

    Shape: Plain

    Size: 1000*1000mm

    Color: Blue

    Customized: Customized

    The Sandwich Panel Roll Forming Machine: EPS Panel Forming Machine

    Techinian Can Be Out Help Install: 1-2 Techinian Can Help You Install The Machines

    PLC Control System: Mitsubishi PLC,Inovance Inverter As Customer Need

    Cutting Part: Cutting Motor Power:7.5Kw Lateral Movement Motor P

    Roll Forming Machine Lifting Speed: 200m

    Tank With Stirrer: Effective Volume:150L Unit Motor Power:10KW

    Dispensing Systems: Effective Volume:150L Unit Motor Power:10KW

Additional Info

    Packaging: Usually the machine is packed by the plastic film and then loaded in the Container

    Productivity: 2-8m/min

    Brand: ZHONGTUO

    Transportation: Ocean,Land,as customer requirem

    Place of Origin: China

    Supply Ability: 10set/month

    Certificate: CE, ISO9001

Product Description

EPS Sandwich Panel Roll Forming Machine PU coated roofing tile sandwich forming machine

EPS sandwich panel roll forming machine


The usage of the EPS Sandwich Panel : EPS sandwich roof panel sheet : The products are widely used in: / purification workshop condole supports, wall and purification products; / build villas, industrial plants, warehouses, with cold storage, air conditioning send wind system; / add layer of the original building housing; (large span roof panel ideal wood.


EPS sandwich panel roll forming machine


7 Our EPS sandwich roof panel Roll Forming Machine can make different profiles sandwich roof sheet, wall sheet, the machine is aotomatic and consist the machine parts such as: unwinding, before cutting, film, beading / molding, rock wool and spray delivery, Edge foam, continuous curing, cutting and other functions, high degree of automation, stable performance.Edge polyurethane foam systems, automatic feeding system, to ensure that the raw material requirements in full accordance with the ratio of mixing, spray evenly; using a reliable foam technology to ensure uniform sheet foam, dense, sheet closely connected.The production line is equipped with automatic control system, user-friendly interface for easy operation, monitoring, advanced computer control, easy to adjust the entire line of argument, effectively ensure the production line stable and efficient operation.

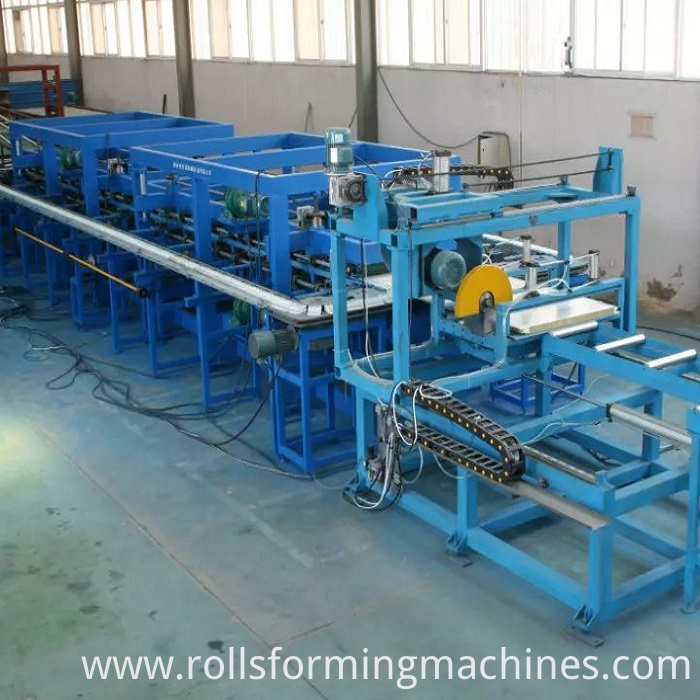

EPS sandwich panel roll forming machine

EPS sandwich panel roll forming machine


EPS sandwich panel roll forming machine




EPS sandwich panel roll forming machine


EPS sandwich panel roll forming machine


22



The details of EPS sandwich panel roll forming machine

Detailed i information:
Equipment covers :minimum of 80m (L) x 10m (W)
Production speed: up to 8m / min
Normal production speed :3-5m / min
The length of a roll laminator: 10m
Operating height: 1200mm
Factory internal height :7m (lifting height)
Air compressor :1.0m3x 2set, using a pressure of about 0.6 ~ 1MPa
Factory internal temperature :15 ℃ ~ 25 ℃
Polyurethane liquid storage tank storage temperature :20 ℃ ~ 23 ℃
Relative humidity :60 to 70%
Installed capacity : about 90KW
Voltage: 380v / 50Hz
Voltage deviation: ± 5%
Frequency :50Hz
Frequency deviation : ± 1%
Sensor voltage required : 24v DC
Lighting voltage : 220V AC control box

EPS sandwich panel roll forming machine pictures

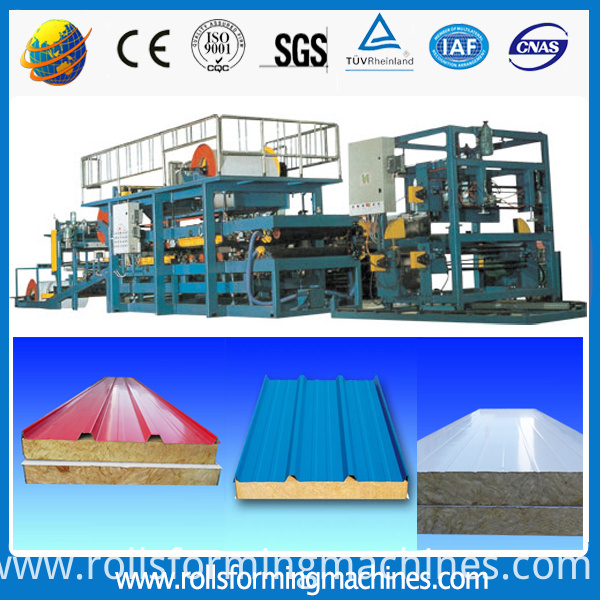

EPS sandwich panel roll forming machine


EPS sandwich panel roll forming machine


3

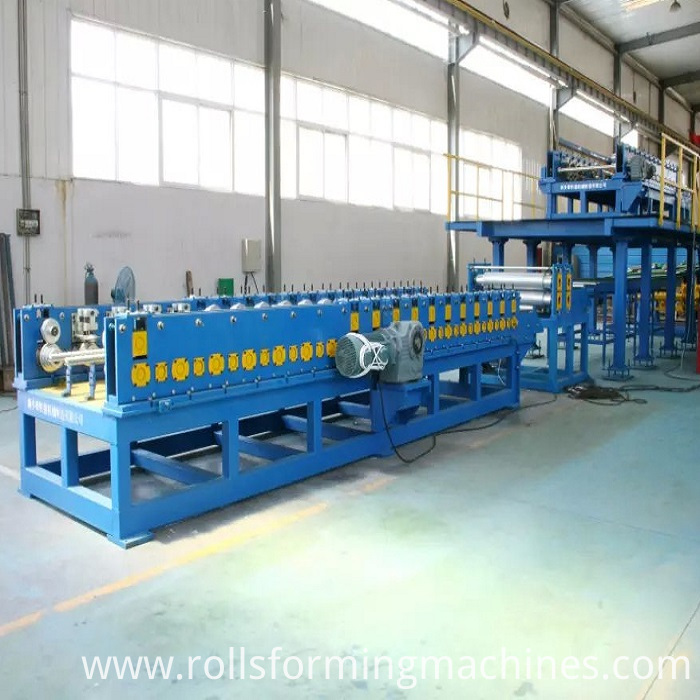

EPS sandwich panel roll forming machine


EPS sandwich panel roll forming machine


1 Whats the price of this EPS sandwich panel roll forming machine line?

The EPS sandwich panel roll forming machine price range is from USD 60000-USD 100000

Different machines and specifications with different price range. Our factory is sure to offer you good price with high quality machine.

2 Can you offer me some Vedios of the EPS panel roll forming machine ?

Of course, i can offer you. You can add me whatsapp up: +86 187 1376 2880, i can record some vedio for you. Also i can send you our vedio link to you.

3 How to install the EPS sndwich roll forming machine?

We can offer you the operating manual in English telling how to operate the EPS sandwich roll forming machine.

and we can record you a vedio how to operate the roll forming machine.

If you need our technians to install the machines to your factory, we can send them to help you!

4 How to delivery the EPS sandwich roll forming machine?

If you country near a sea port, we can delivery by ship, if our country is a land country, no sea near by, for example, we will help you delivery the machines by truck.

About the freight, we can help you ask for a lower freight for your reference.

5 Whats the working life of the EPS roll formig machine, whats problems the machine used to happen?

The working life of the EPS sandwich roll forming machine is at least 10 years. The hydraulic systems and the electric system parts are easily broken, but, we can delivery the spare parts of the easily broken parts.

The sparts list is as below: Buttons,counters, Nylon wheel , protective tube, limit swith, pump pipe and so on!

If you want to know more about the EPS sandwich panel roll forming machine, please refer to: More about the EPS sandwich Roll Forming Machine
