New Desirable Fully Automatic CZ Purlin Machine
New Desirable Fully Automatic CZ Purlin Machine
New Desirable Fully Automatic CZ Purlin Machine

New Desirable Fully Automatic CZ Purlin Machine

Unit Price: USD 52000 - 9800 / Set/Sets
Payment Type: L/C,T/T,D/P,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 40 Days

Contact Now

Basic Info

    Model No.: ZT-005-200

    Type: Cold Bending Equal Channel

    Standard: GB, ASTM, JIS, AISI, DIN, BS

    Shape: C Channel

    Perforated: Not Perforated

    Length: 5-12m

    Condition: New

    Customize: Yes

Additional Info

    Packaging: nude packing

    Productivity: 5-15m/min

    Brand: zhongtuo

    Transportation: Ocean,Land,Air,as customer requirem

    Place of Origin: cangzhou

    Supply Ability: 45 working days

    Certificate: CE\ISO9001

    HS Code: 84552210

    Port: TIANJIN,SHANGHAI,QINGDAO

Product Description

Blue Pre-Engineered Z Beams C Purline Machine

Hot Aale Pre-Engineered H Beams Z Beams C Purline Machine is a machine can produce many sizes,Generally,there are three types of machine, c purlin machine, z Purlin Roll Forming Machine, C Z Section Steel Purlin Machine. The Web width can be 60-300mm Flange height can be 30-80, it is adjustable from min to max. The size of holes can be design by customers.

This C Z Purlin Cold Roll Forming Machine consists of uncoiler,feeding and straightening,punching and cutting part, main roll forming part,cutting device and runout table.

Hot Aale Pre-Engineered H Beams Z Beams C Purline Machine

The size we can do:

Hot Aale Pre-Engineered H Beams Z Beams C Purline Machine Hot Aale Pre-Engineered H Beams Z Beams C Purline Machine

Some pictures for you reference:

Metal Building Steel Frame Roll Forming Machine

The Parameters of Hot Aale Pre-Engineered H Beams Z Beams C Purline Machine:

Manual un-coiler System

Loading capacity: 5T;

Uncoiling width: 500mm ;

Inner diameter: 450-550mm

C Z Adjustable Purlin Roll Forming Machine--decoiler

Entry Beach

Specification:Usage: Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

C Z Section Steel Purlin Machine

Shearing Mechanism and punching (include cutting tools, hydraulic tank, cutter machine)

1)Feature : Ensure stability, precision and cutting speed; Function : Automatic cutting controlled by PLC; Material of blades: Gcr12MoV quenched;

2)Power supply : hydraulic power;

3)Frame : Pillar style with rack & pinion system;4)Stroke switch : non-contact photoelectric switch

Hot Aale Pre-Engineered H Beams Z Beams C Purline Machine

Hot Aale Pre-Engineered H Beams Z Beams C Purline Machine

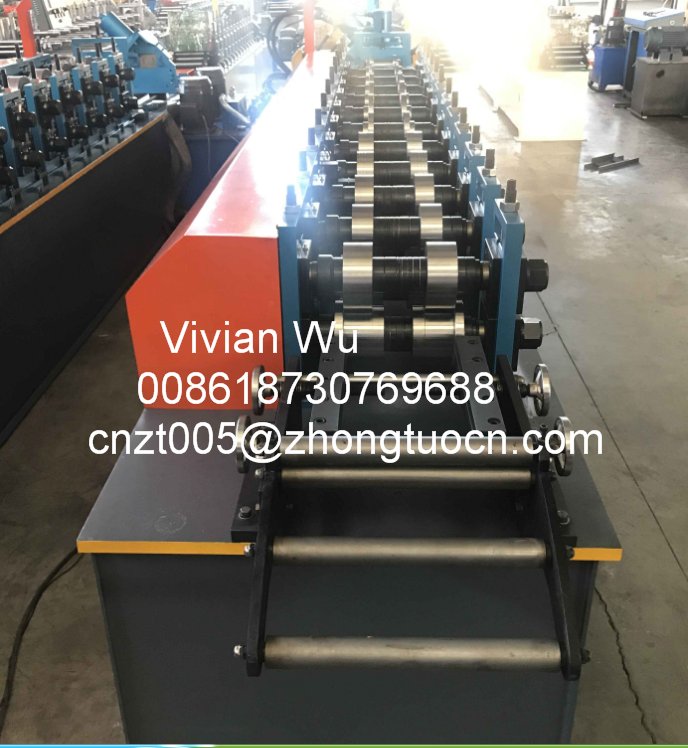

Main Roll Forming System for Hot Aale Pre-Engineered H Beams Z Beams C Purline Machine

1)Number of forming steps:12stations;

2)Shaft material:45# steel Outer diameter:80mm ;

3) Roller Material:Cr12MoV ;

4)Transport: chain ;

5)Forming speed:5-12m/min ;

6)Motor:15kw ;

7)Voltage:380v,50Hz,3 phase ;

8)Frame : middle plate welded ;

9)Dimensions:12000mm*1800mm*1600mm ;

10)Weight of machine: about 9ton

Hot Aale Pre-Engineered H Beams Z Beams C Purline Machine

Hydraulic Station

1)Hydraulic motor Power: 5.5kw ;

2)Hydraulic oil: 46# (include a set of hydraulic tank , a set of hydraulic oil pump,two hydraulic pipes and two sets of electromagnetism valves )

C Z Section Steel Purlin Machine

Electric Control System

1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2.Other electric element are Delta; 3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

C Z Section Steel Purlin Machine

Payment method:

Method 1:

Payment of the contract with following schedule:

- 30%: The payment shall pay by T/T the down payment to the Seller within 15 days after the signature of the Contract. The Contract then comes into effect.

- 70%: The buyer shall pay to seller the remaining 70% of total contract amount before the seller`s ship the machine to XINGANG, CHINA.

Method 2

L/C is also acceptable.

Installation, Commissioning, Test and Training

1. The engineers from the Seller shall supervise the installation on site and fulfill the commissioning. They should start off within 10 days after they get the information from the Buyer.

2. The Buyer signs in the Certificate of Acceptance.

3. The Seller trains the operators of the Buyer during the commissioning

4. Commissioning: about 1 engineers in 7 days.

5. The Buyer shall pay for the international air tickets and the local, such as board and lodging, daily transportation, communication,Insurance, etc. The Buyer shall pay USD 80 /day /person to the Seller for the commissioning.

6. The Buyer shall prepare an interpreter for better communication between the two sides.

Looking for ideal New CZ Purlin Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Desirable Purlin Machine are quality guaranteed. We are China Origin Factory of Automatic CZ Machine. If you have any question, please feel free to contact us.
