C Z Section Steel Purlin Machine

C Z Section Steel Purlin Machine is a machine can produce many sizes,Generally,there are three types of machine, c purlin machine, z Purlin Roll Forming Machine, C Z Section Steel Purlin Machine. The Web width can be 60-300mm Flange height can be 30-80, it is adjustable from min to max. The size of holes can be design by customers.

This C Z Section Steel Purlin Machine consists of uncoiler,feeding and straightening,punching and cutting part, main roll forming part,cutting device and runout table.

C Z Section Steel Purlin Machine


The size we can do:

C Z Section Steel Purlin Machine

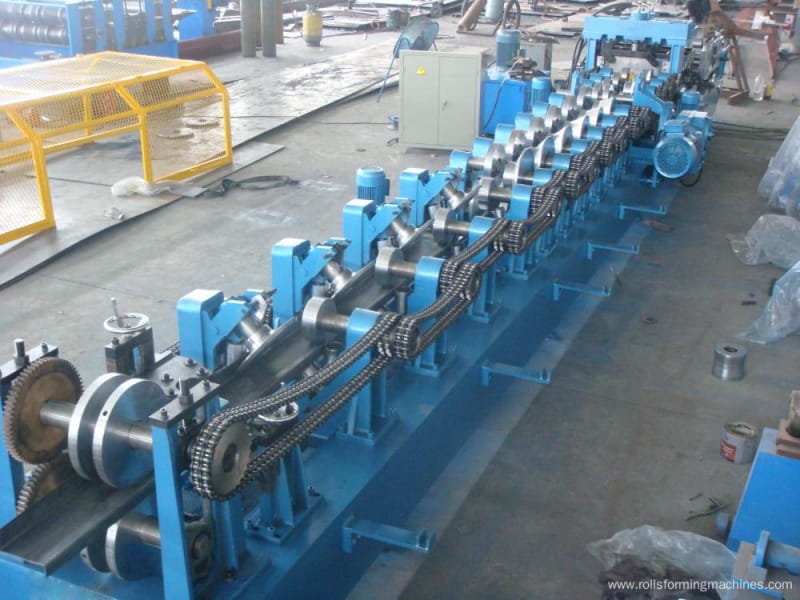

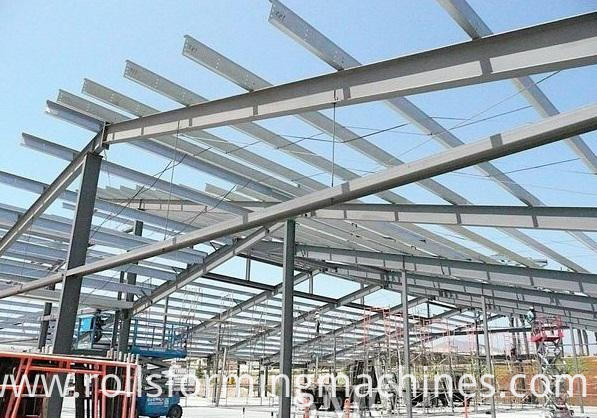

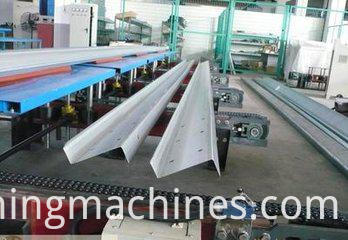

Some pictures for you reference:

C Z Section Steel Purlin Machine

C Z Section Steel Purlin Machine


The Parameters of C Z Section Steel Purlin Machine:

Manual un-coiler System

Loading capacity: 5T;

Uncoiling width: 500mm ;

Inner diameter: 450-550mm

C Z Section Steel Purlin Machine--decoiler

Entry Beach

Specification:Usage: Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

C Z Section Steel Purlin Machine

Shearing Mechanism and punching (include cutting tools, hydraulic tank, cutter machine)

1)Feature : Ensure stability, precision and cutting speed; Function : Automatic cutting controlled by PLC; Material of blades: Gcr12MoV quenched;

2)2)Power supply : hydraulic power;

3)3)Frame : Pillar style with rack & pinion system;4)Stroke switch : non-contact photoelectric switch

C Z Section Steel Purlin Machine

C Z Section Steel Purlin Machine

Main Roll Forming System for C Z Section Steel Purlin Machine

1)Number of forming steps:12stations;

2)Shaft material:45# steel Outer diameter:80mm ;

3). Roller Material:Cr12MoV ;

4).Transport: chain ;

5).Forming speed:5-12m/min ;

6).Motor:15kw ;

7).Voltage:380v,50Hz,3 phase ;

8)Frame : middle plate welded ;

9)Dimensions:12000mm*1800mm*1600mm ;

10)Weight of machine: about 9ton

C Z Section Steel Purlin Machine

Hydraulic Station

1)Hydraulic motor Power: 5.5kw ;

2)Hydraulic oil: 46# (include a set of hydraulic tank , a set of hydraulic oil pump,two hydraulic pipes and two sets of electromagnetism valves )

C Z Section Steel Purlin Machine

Electric Control System

1.Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.

2.Other electric element are Delta; 3.Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.

C Z Section Steel Purlin Machine

Payment method:

Method 1:

Payment of the contract with following schedule:

- 30%: The payment shall pay by T/T the down payment to the Seller within 15 days after the signature of the Contract. The Contract then comes into effect.

- 70%: The buyer shall pay to seller the remaining 70% of total contract amount before the seller`s ship the machine to XINGANG, CHINA.

Method 2

L/C is also acceptable.


Installation, Commissioning, Test and Training

1. The engineers from the Seller shall supervise the installation on site and fulfill the commissioning. They should start off within 10 days after they get the information from the Buyer.

2. The Buyer signs in the Certificate of Acceptance.

3. The Seller trains the operators of the Buyer during the commissioning

4. Commissioning: about 1 engineers in 7 days.

5. The Buyer shall pay for the international air tickets and the local, such as board and lodging, daily transportation, communication,Insurance, etc. The Buyer shall pay USD 80 /day /person to the Seller for the commissioning.

6. The Buyer shall prepare an interpreter for better communication between the two sides.

Looking for ideal C Section Steel Purlin Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Z Section Steel Purlin Machine are quality guaranteed. We are China Origin Factory of C Z Purlin Machine. If you have any question, please feel free to contact us.
