Zhongtuo Roll Forming Machinery Co., ltd

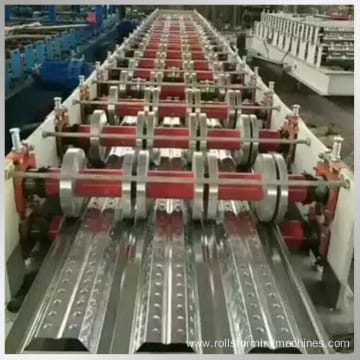

metal steel floor deck roll former
metal steel floor deck roll former
metal steel floor deck roll former

metal steel floor deck roll former

Unit Price: USD 9800 / Set/Sets
Payment Type: L/C,T/T,Paypal
Incoterm: FOB,CIF
Min. Order: 1 Set/Sets
Delivery Time: 30 Days

Contact Now

Basic Info

    Model No.: ZT-005

    Material Of Shafts: 45# Steel

    Frame: 350 H Steel Welded

    Drive Mode: Chain

    Number Of Rollers: 13 Rollers

    Diameter Of Shafts: Φ80mm

    Main Power: 5.5kw

    Material Of Blades: Cr12 Quenched

    Roller Fixer: Middle Plate

    Delivery Time: 30 Working Days

    Material Of Rollers: 45# Steel

Additional Info

    Packaging: As customer's need

    Productivity: 8-12 m/minute

    Brand: Zhongtuo

    Transportation: Ocean,Land

    Place of Origin: China(mainland)

    Supply Ability: 30 sets/month

    Certificate: CE/ISO/SGS/IAF/CNAS.

Product Description

metal steel floor deck roll former

We are specialized in designing and building various steel floor plate decking roll forming machines,such as close-type steel Floor Deck Roll Forming Machine,3-waves steel deck floor Roll Forming Machine,2-waves with ribs steel floor deck roll forming machine etc. In modern time,people prefers to use steel instead of stone or cement for construction projects,such as the steel floor decks, because it is more convenient to fill the concrete into the steel floor deckings than to use the stone floor.

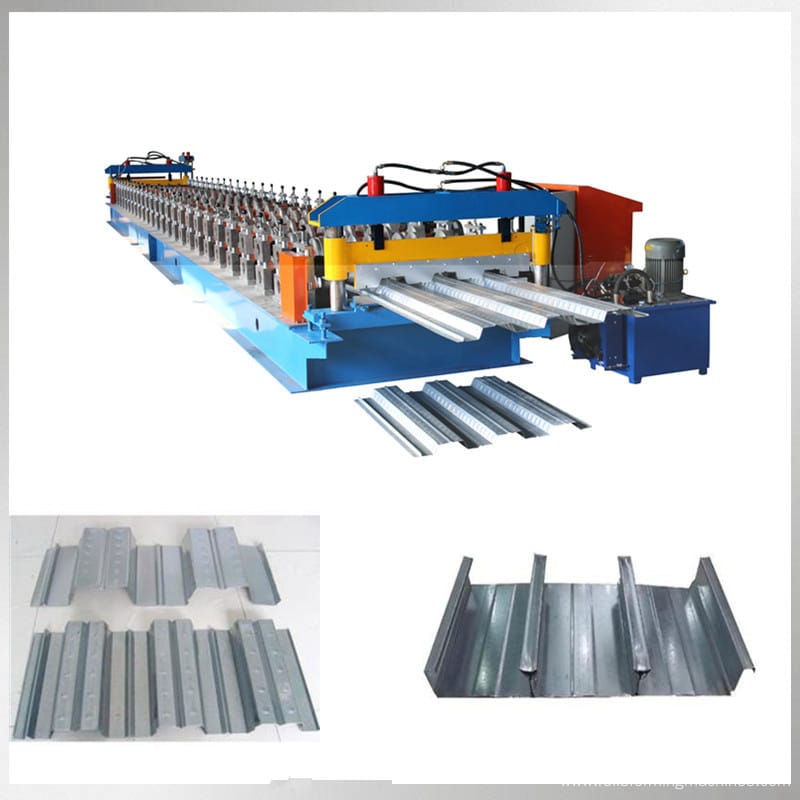

floor deck roll former

Technical Data for Main Parts on decking floor steel sheets roll forming machine:

Uncoiler: Manual Uncoiler

Thickness of Material: 0.7mm-1.2mm

Effective Width:600-900mm

Coil Weight: 5 Tons

Coil OD:1500mm

Coil ID:508--610mm

Feeding Guide OF STEEL FLOOR DECKING ROLL FORMING MACHINE:

2 Rollers to guide the material into the machine

Both ends of the flat roll adopt bearing structure.

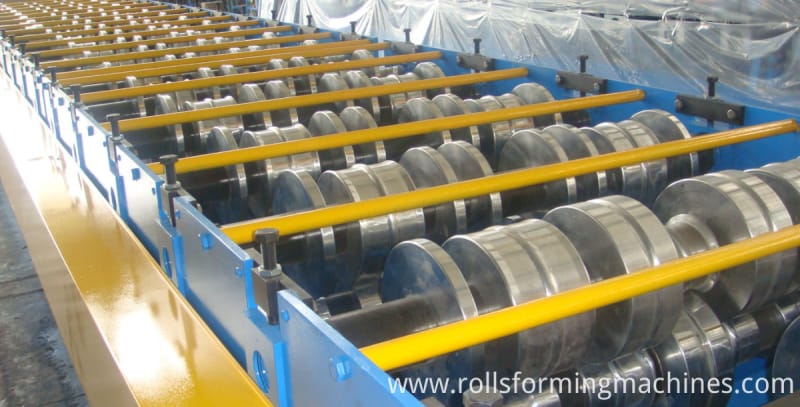

Roll Forming Machine (STEEL DECK FLOOR ROLL FORMING MACHINE)

Roller Stations: 28-36 stations

Diameter of Shaft: 70mm

Material of Shaft: 45# steel.

Material of roller: 45#steel with electroplating treatment after quenching treatment.

Forming speed: 8-12m/min

Siding Plate: 36 [H" Steel (Thickness 18mm).

Transmission: 1.0" Chains-bracket.

Bearing Model: 6210

Main Power: 2x11KW;

Overall Dimensions: 11500mmx1500mmx1300mm

Weight of the machine: Appro.14 Tons

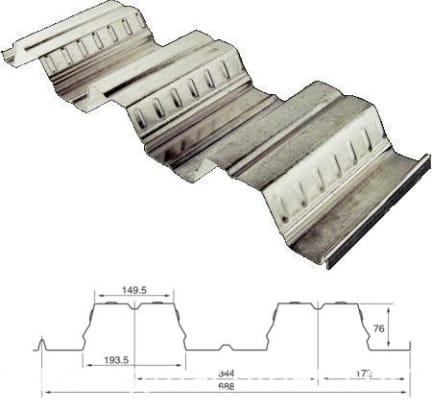

Floor Deck Roll Former

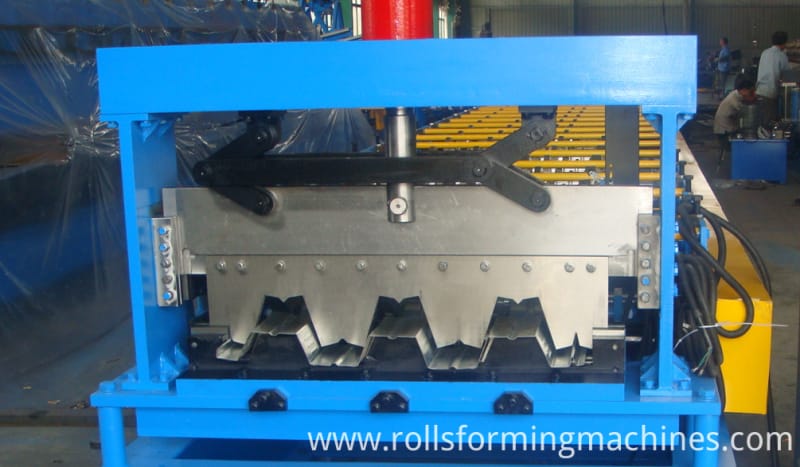

Cutting and Electrical Parts FOR STEEL FLOOR DECKING ROLL FORMING MACHINE:

Hydraulic Cutting: Automatically cutting according to the length and quantities the clients set on the touch screen

Hydraulic Power: 4KW

Material of Cutting Blades: Cr12 Steel

PLC Control Box: 700mmx1000mmx300mm

Computer Control System: Panasonic PLC.

Pressure of Hydraulic Station: 16Mpa

floor deck roll former


Looking for ideal Floor Deck Roll Former Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Deck Floor Roll Former are quality guaranteed. We are China Origin Factory of Steel Floor Deck Roll Former. If you have any question, please feel free to contact us.

Product Categories : Floor Deck Roll Forming Machine
