Floor Decking Plate Sheet Roll Forming Machines

    Unit Price: USD 18000 - 25000 / Set/Sets
    Payment Type: L/C,T/T,D/P,Western Union,D/A
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: ZT-004-016

Additional Info

Packaging: nude

Productivity: 16m/min

Brand: zhongtuo

Transportation: Ocean,Land

Place of Origin: cangzhou

Supply Ability: 30sets/month

Certificate: ce/iso9001

Product Description

Floor Decking Plate Sheet Roll Forming Machines


Product description

The Floor Decking Plate Sheet Roll Forming Machines adopts wallboard structure.It increases the strength of the machine.The finished product of this metal deck is widely used in floor flat.After making embossing on the steel,it increase the strength between the steel and concrete, thereby increasing the fastness of the floor.

Steel floor sheets of the Decking Plate Sheet Forming Machine are new building materials with various thicknesses. They are used as the floors of buildings because of low cost, light weight but high strength, short building period, and re-cycle use.

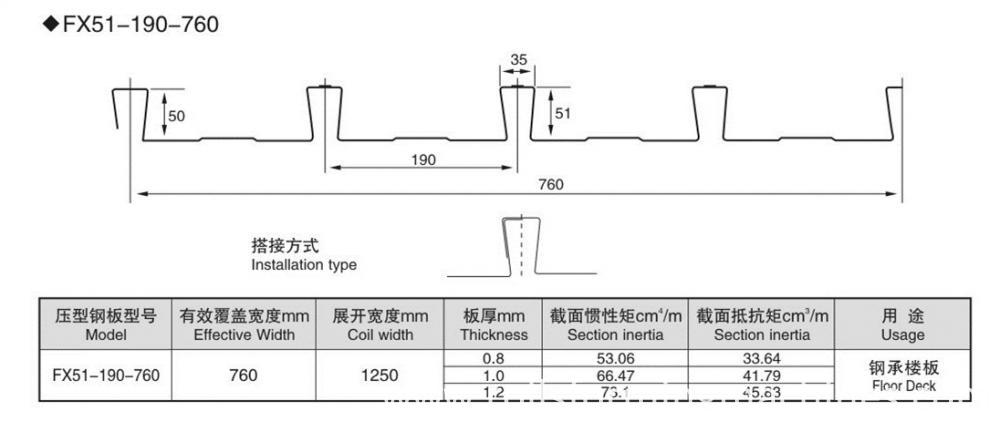

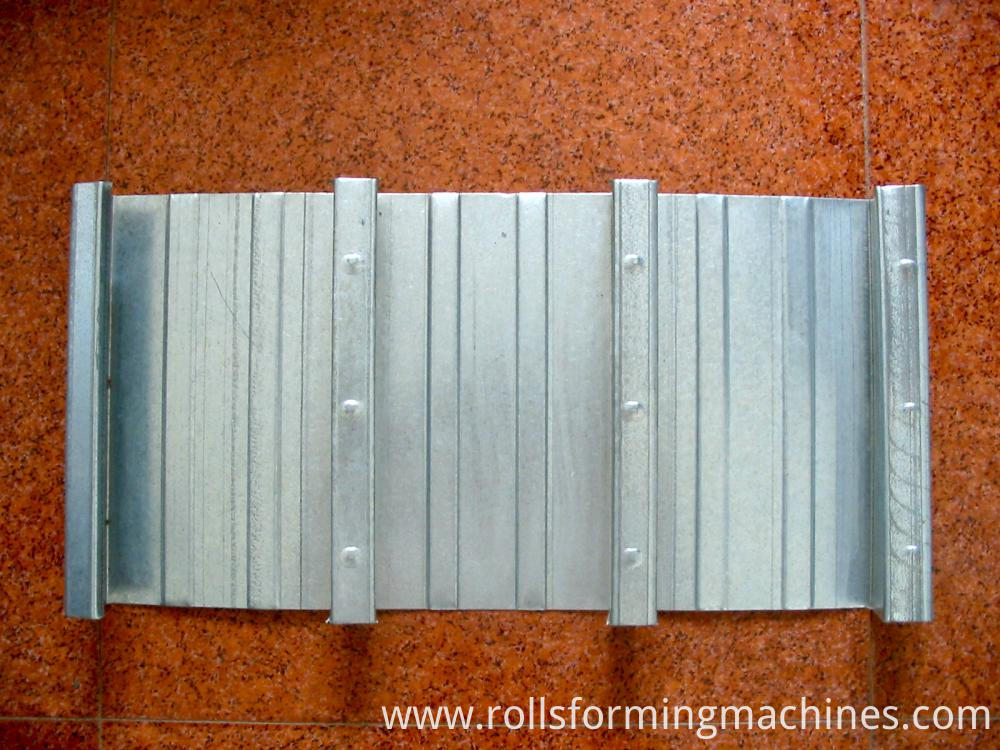

Drawings profile or finished product pictures

Floor Decking Plate Sheet Forming Machines 01

Floor Decking Plate Sheet Forming Machines 02Floor Decking Plate Sheet Forming Machines 03

Specification of Floor Decking Plate Sheet Forming Machines

Material Type:GI/PPGI/AL

Material Width:1000/1200/1220/1250mm(customized)

Material Thickness:0.80-1.20mm

Sheet length:Any length

Length Tolerance:±2mm/6m

Working Speed:12-15 m/min (10 piece per min as 8 feet per piece,standard machine)

Control System:Mitsubishi/Siemens PLC& transducer(customized)

Total Power:About 15KW

Total Weight:About 14T(up to the final design)

Production process of Floor Decking Plate Sheet Forming Machines

Uncoiling→Feeding material into machine→Roll forming→Measuring length→Step formed→ Auto cutting→Products receiving

Un-coiler System of Decking Plate Sheet Forming Machine

Floor Decking Plate Sheet Forming Machines 04


Usage: It is used to support the steel coil and uncoil it in a turntable way..Passive uncoil pulled by roll forming system

Loading-capacity:5T

Uncoiling-width:1000/1200/1250mm

Inner-diameter: 450-550mm

Entry Beach of Steel Floor Decking Forming Machine

Floor Decking Plate Sheet Forming Machines 05

Usage:Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate panel.

Main Roll Forming Machine of Steel Floor Decking Forming Machine

Steel Floor Decking Forming Machine 01

Usage :In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Frame : 350 H steel

Drive mode: chain

Material of rollers:45# steel, surface hard chromium plating.

Length of the main part:14200*1300*1400mm

Voltage:380V/50HZ3Phase

Roller fixer : middle plate

Material of shafts: 45#steel

Diameter of shafts: φ80mm

Number of rollers : 30 rollers

Shearing Mechanism of Steel Floor Decking Forming Machine

Steel Floor Decking Forming Machine 02

Usage :It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.


Feature : Ensure stability, precision and cutting speed

Function: Automatic cutting controlled by PLC.

Material of blades: Cr12 quenched

Power supply : hydraulic power

Products receiving tables of Floor Decking Plate Sheet Forming Machines

Steel Floor Decking Forming Machine 03




Looking for ideal Floor Decking Plate Sheet Forming Machines Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Decking Plate Sheet Forming Machine are quality guaranteed. We are China Origin Factory of Steel Floor Decking Forming Machine. If you have any question, please feel free to contact us.
