high speed metal deck Roll Forming Machine

Product description

New building bearing plate roll forming machine by this machine is used for building surface panels, it has many

advantages, such as high wave, high strength, high automation and low cost. Steel structural floor panel is the type of

steel construction material with character of low light, hard, easy to install, which extensively apply in constructing

skyscraper, residential building and bridge. HBYX series steel structural floor panel with the feature of reliable,

convenient operation, automatic can be used in various steel structural floor panels forming. This machine is composed

of uncoiler, feed leading table, main forming machine, punching system, cutting device, hydraulic station and computer

control system.

This is the new type we engineer for Floor Deck Roll Forming Machine, if it can meet your need, please contact us.

The characteristics of floor deck plate roll forming machine products

1, quick to adapt to the steel structure construction requirements, can provide solid work platform in a short period of

time, and can use multiple floor deck laid pressed steel plate, plate layer hierarchical pouring of concrete slab


2, in the use of phase floor deck steel plate as a concrete floor, also can increase the stiffness of the floor, to save the

consumption of steel and concrete.

3, contour plate surface embossing make floor deck maximum binding force between plate and concrete, to form the

whole, with stiffener, make floor deck plate system has a high bearing capacity.

4, under the condition of the cantilever, floor deck plate only as a permanent template. The length of the cantilever can

be set according to the properties of cross section floor deck board. In order to prevent the cantilever plate cracking,

needs in the bearing place in accordance with the structural engineers design with negative reinforcement.

Drawings profile or finished product pictures

floor deck roll forming machine

floor deck machine

metal decking machine

building bearing plate roll forming machine Specification of Metal Floor Deck Sheet Panel Roll Forming Machine

Main parameters of ZT 915 floor deck forming machine


Suitable material

galvanizes sheet/ colored coil


Width of the feeding material

1300 mm


Effective width of the plate

915 mm


Thickness of feeding material






Two Main motor power

11kw +11kw


Rollers' material

45# steel Rolling chromium


Diameter of shaft



Wall thickness of the main forming machine

22mm steel plate


Backboard Thickness



Cutting hydraulic system`s motor power



control system,



Dimensions of major structure








Production process of Metal Floor Deck Sheet Panel Roll Forming Machine

Uncoiling→Feeding material into machine→Roll forming→Measuring length→Step formed→ Auto cutting→Products receiving

building bearing plate roll forming machine Un-coiler System of Metal Floor Deck Sheet Panel Roll Forming Machine

floor deck decoiler

Usage: It is used to support the steel coil and uncoil it in a turntable way..Passive uncoil pulled by roll forming system



Inner-diameter: 450-550mm

Entry Beach

Floor Deck Panel Decking Machine entry beach 1

Usage:Put the raw material (steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate panel.

Main Roll forming machine

Floor Deck Panel Decking Machine main roll forming 01

Usage :In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission, roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is being stamped.

Frame : 350 H steel

Drive mode: chain

Material of rollers:45# steel, surface hard chromium plating.

Length of the main part:14200*1300*1400mm


Roller fixer : middle plate

Material of shafts: 45#steel

Diameter of shafts: φ80mm

Number of rollers : 30 rollers

Shearing Mechanism

Floor Deck Panel Decking Machine main roll forming 02

Usage :It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Feature : Ensure stability, precision and cutting speed

Function: Automatic cutting controlled by PLC.

Material of blades: Cr12 quenched

Power supply : hydraulic power

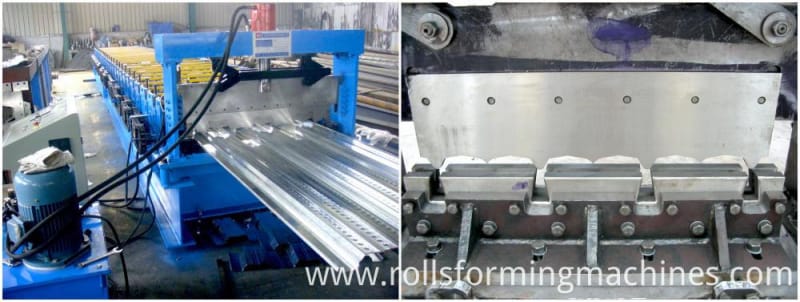

machine pictures for your reference:


Looking for ideal High Speed Floor Decking Roll Forming Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Automatic Floor Decking Roll Forming Machine are quality guaranteed. We are China Origin Factory of Metal Decking Roll Forming. If you have any question, please feel free to contact us.

Product Categories : Floor Deck Roll Forming Machine
