Hydraulic Crimping Machine, Curving Machine,Bending Machine

    Unit Price: USD 13500 - 16500 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P,Western Union
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: ZT-004-070

Additional Info

Packaging: nude packing

Productivity: 30 sets per month

Brand: zhongtuo

Transportation: Ocean,Land

Place of Origin: cangzhou

Supply Ability: 30 sets per month

Certificate: CE ISO9001

Product Description

Hydraulic Crimping Machine, Curving Machine,Bending Machine

Hydraulic Crimping Machine is used to assist the roof tile Roll Forming Machine to curve the finished sheet to form a certain angle which our customer want. Normallly the crimped sheet is also used in many kind of roofing and temporary construction site or factory plant.

IMG_0549


Drawings profile

thickness: 0.25-0.8 mm

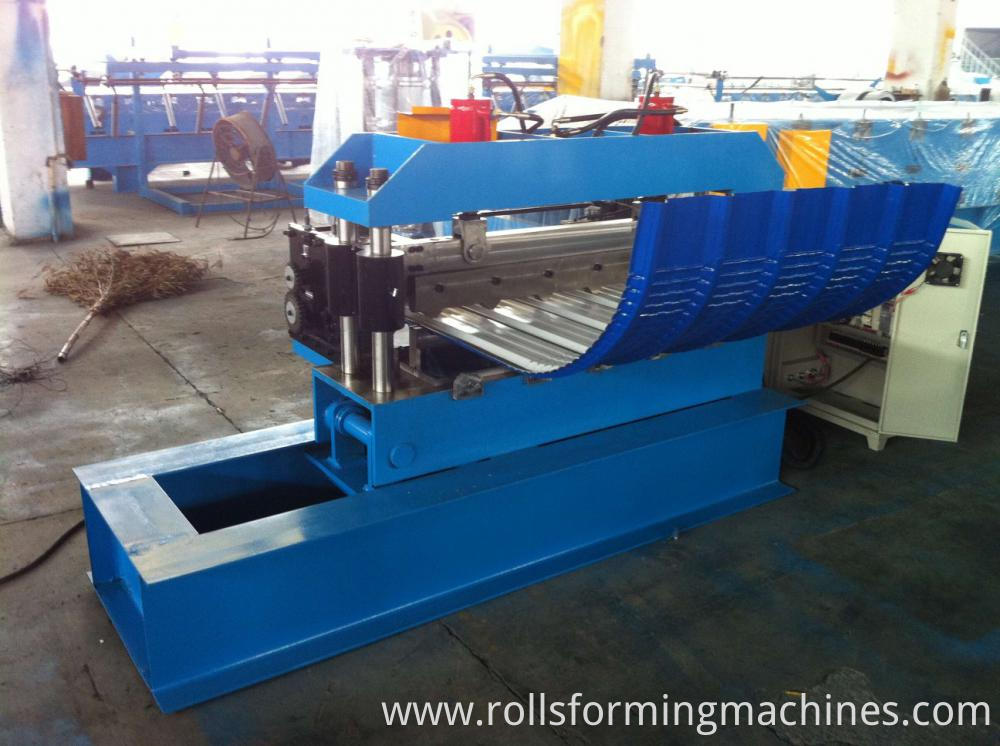

curving machine


Technical paramenters

1).The frame: steel welding

2).Material of forming mold: Cr 12 steel with quenched treated HRC55-60℃

3).Main oil pump press: 32mpa

4).Feeding equipment

a. Turbine worm reducer NMRV050

b .Rack driving c.DC motor: calculates arc length automatically

5).Hydraulic system

a.Advanced hydraulic system from Taiwan

b.Power: 5.5kw

6).Automatic Control system

a.Screen: 5.7 inch Mitsubishi screen

b.PLC control system

7) forming speed: 0-10m/min

8) standard of material:025-0.8mm thickness of color plate

9) size: 3500 mm×1800 mm×1400 mm

10) production period: 30days

crimping machine


Payment Terms

1).The total price of the equipment: 13500USD FOB tianjinxingang

2).The payment terms: Pay 30%T/T after signed the contract ,Pay 70% T/Tafter inspection before deliver .

3).Warranty : One year ,and we will provide the technical support for the whole life .

4).Delivery time : Within 45working days after receiveing deposit.


Other product for your reference

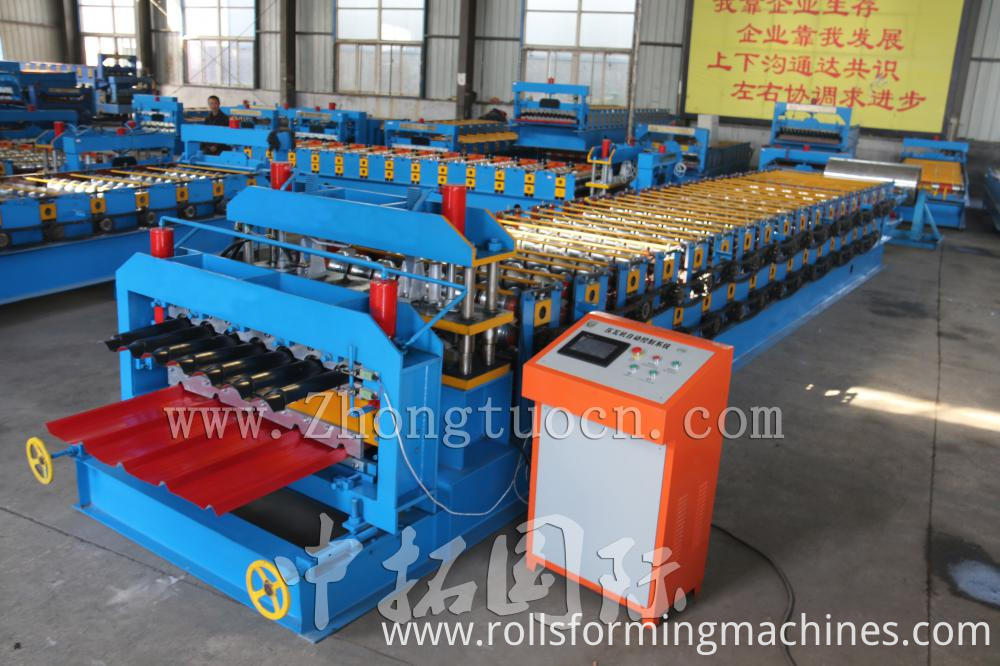

ZT36-129-889 Double Layer Roll Forming machine (16)

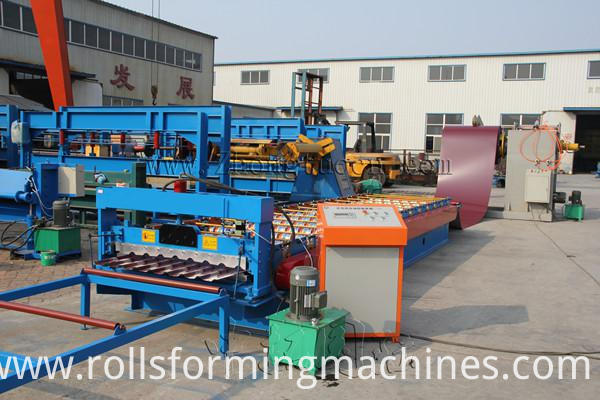

glazed tile making machine23double layer roll forming machine (2)
