Solar PV Mounting Structure Roll Forming Machine for India

India's expanding solar industry is creating growing demand for reliable steel mounting structures. As solar projects become larger, manufacturers need production equipment that can continuously produce accurate profiles while reducing manual handling.

Our Solar PV Mounting Structure Roll Forming Machine is designed for continuous production of photovoltaic support profiles. The line combines roll forming, automatic punching, hydraulic cutting and automatic stacking into one integrated production system.

For this project, the machine is designed for material up to 2.5 mm thick and uses a gearbox transmission system for stable forming performance.

Built for Efficient Solar Structure Production

Solar mounting profiles need consistent dimensions and accurately positioned connection holes. These details directly affect how easily the finished profiles can be assembled during solar structure installation.

The roll forming machine gradually shapes steel coil through multiple forming stations, allowing the required profile geometry to be produced continuously and consistently.

Instead of treating forming, punching and cutting as separate operations, the complete production line connects these processes together. This creates a more organized workflow for manufacturers producing solar structures in larger quantities.

From Steel Coil to Finished Solar Profile

The production process starts with the steel coil feeding into the forming line. The material is guided through the forming section, where a series of rolls gradually creates the required solar mounting profile.

Automatic punching can be performed during the forming process according to the required hole pattern. The profile then enters the hydraulic cutting section and is cut to the specified length.

The finished profiles are finally conveyed to the automatic stacking system.

Production Flow:

Steel Coil → Feeding → Roll Forming → Automatic Punching → Hydraulic Cutting → Conveying → Automatic Stacking

This continuous workflow reduces unnecessary material handling between production stages.

Automatic Punching and Cutting

Solar mounting structures commonly require holes for bolts, fasteners and structural connections. The position and spacing of these holes can vary according to the profile design.

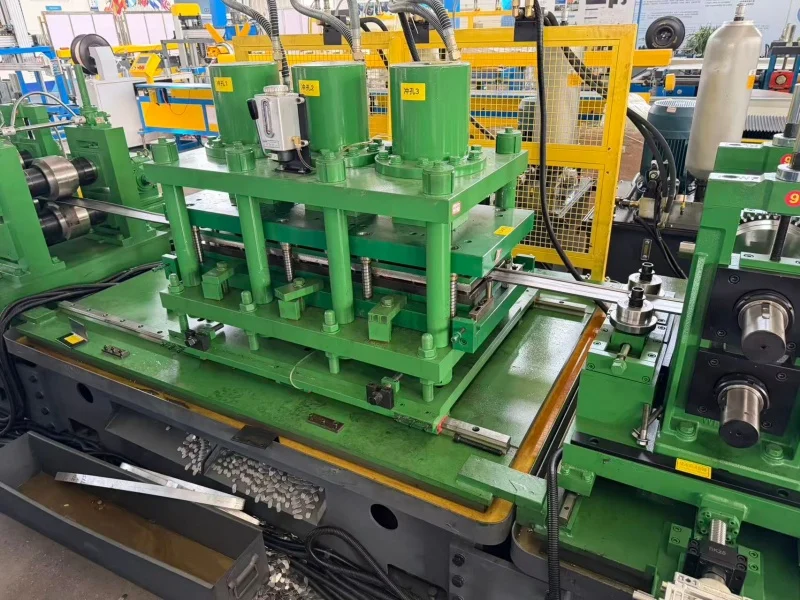

The machine can integrate automatic punching into the roll forming line. Punching dies are configured according to the customer's profile drawing, allowing the required hole pattern to be produced during continuous forming.

After punching, the profile is cut by a tracking hydraulic cutting system. This allows forming, punching and cutting to work as part of one continuous production process.

Automatic Stacking for Finished Profiles

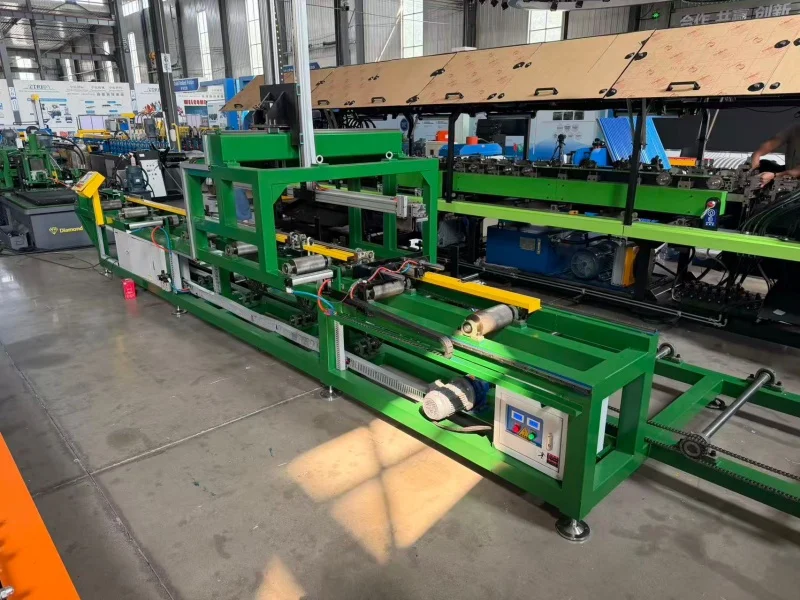

After the profiles are cut to length, they are transferred to the automatic stacking section.

The stacking system collects and arranges finished solar profiles, reducing the amount of manual handling required at the end of the production line.

For manufacturers producing long profiles in large quantities, automatic stacking can also make finished products easier to organize, bundle and prepare for transportation.

The stacking arrangement can be customized according to profile length, bundle requirements and available workshop space.

Gearbox Drive for 2.5mm Solar Profiles

The machine is designed to process material with a maximum thickness of 2.5 mm, depending on the material grade and actual profile design.

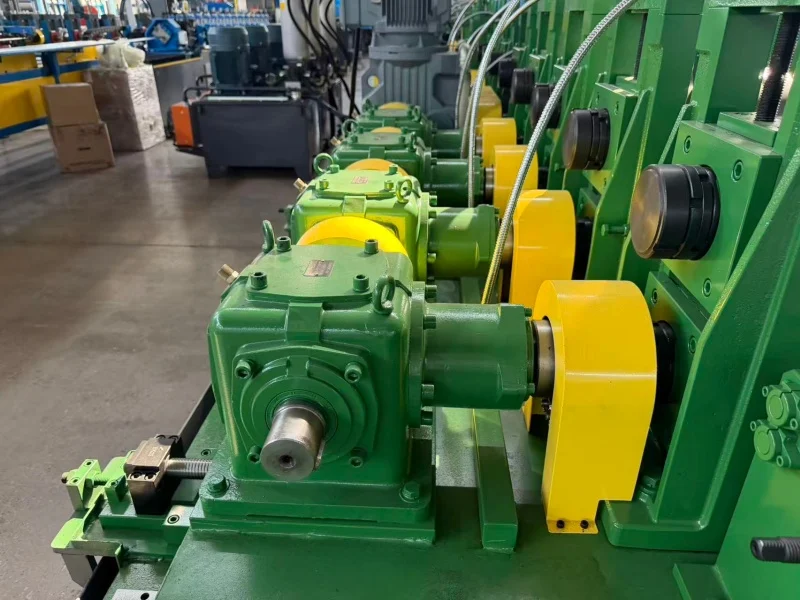

For this type of application, stable power transmission is important. The forming section therefore uses a gearbox-driven transmission system to support continuous roll forming.

The forming rolls gradually shape the steel through multiple stations. This approach allows the profile to reach its final geometry progressively rather than relying on a single forming operation.

The final roll configuration is designed according to the customer's actual solar mounting profile.

Applications for Solar PV Structures

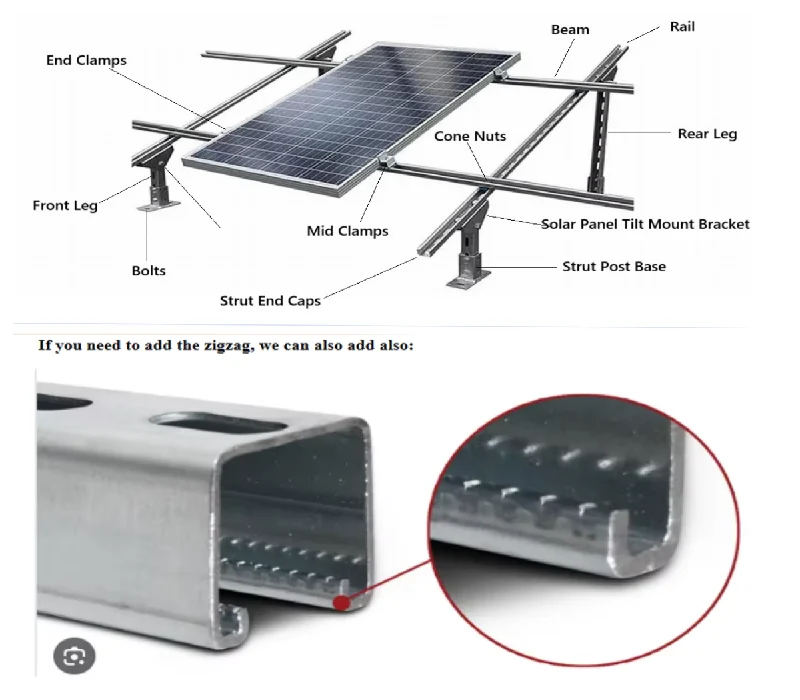

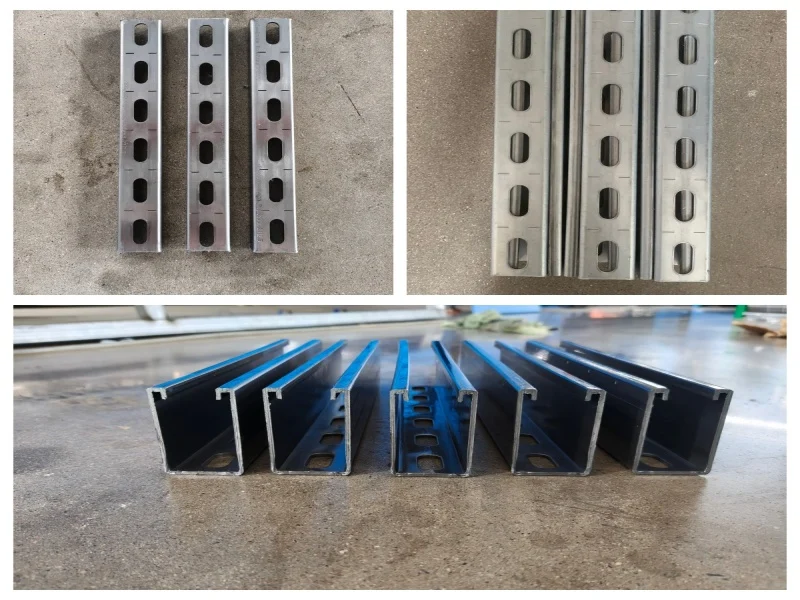

The machine can be used to manufacture different steel profiles for photovoltaic mounting systems, depending on the customer's product design.

Typical applications include:

• Ground-mounted solar structures
• Rooftop photovoltaic mounting systems
• Solar farm support profiles
• Solar mounting rails
• PV support channels
• Solar structural brackets

Different profile dimensions and hole patterns can be accommodated through customized roll tooling and punching systems.

Designed Around Your Profile

Solar mounting structures are not identical for every project. Profile width, height, bends, hole arrangements and material specifications can vary between different solar structure designs.

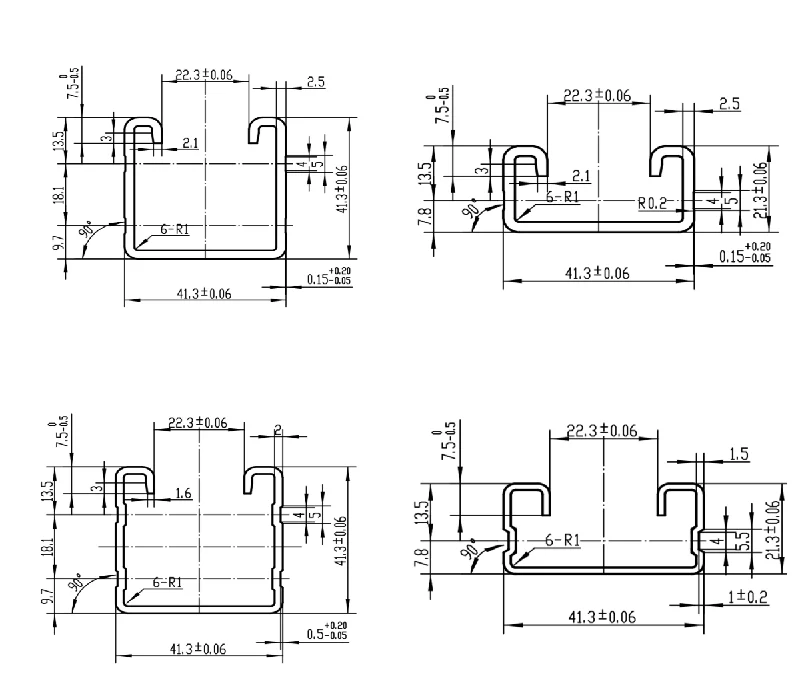

For this reason, the machine is designed according to the customer's actual profile drawing rather than relying only on a standard machine configuration.

After reviewing the drawing and material information, the forming rolls, shafts, punching dies, cutting system and stacking arrangement can be selected accordingly.

Technical Specifications

The final machine configuration will be confirmed according to the customer's profile drawing, material grade and production requirements.

Why Choose a Customized Solar Roll Forming Line?

A solar mounting profile is an important structural component, so the production equipment needs to match the actual product dimensions and manufacturing process.

A customized roll forming line allows the forming rolls, punching system, cutting method and stacking arrangement to be developed around the customer's requirements.

This is particularly useful when the customer has specific profile dimensions or hole patterns that cannot be covered by a standard machine.

For Indian solar structure manufacturers, the complete line can also be considered together with workshop layout, production capacity and finished-product handling requirements.
