Galvanized Spring Tee Triangle Keel Roll Forming Machine for Belgium Customer

We recently completed a Galvanized Spring Tee Triangle Keel Roll Forming Machine project for a customer in Belgium. The machine was designed according to the customer's profile requirements and is used to produce Spring Tee Triangle Keel from galvanized steel coil.

After manufacturing and testing, the machine was delivered to the customer's factory in Belgium for installation and commissioning. This project shows how a customized Roll Forming Machine can be developed according to a specific profile and put into production at an overseas customer's facility.

What Is a Galvanized Spring Tee Triangle Keel?

A Spring Tee Triangle Keel is a formed steel profile produced through a continuous Roll Forming process. For this project, the machine uses Galvanized Steel Coil as the raw material. The steel strip passes through multiple forming stations, where it is gradually shaped into the required triangle keel profile.

Because different customers may require different profile dimensions, the Profile Drawing is an important part of the machine design. The forming rollers and stations are customized according to the actual profile rather than using a fixed standard configuration.

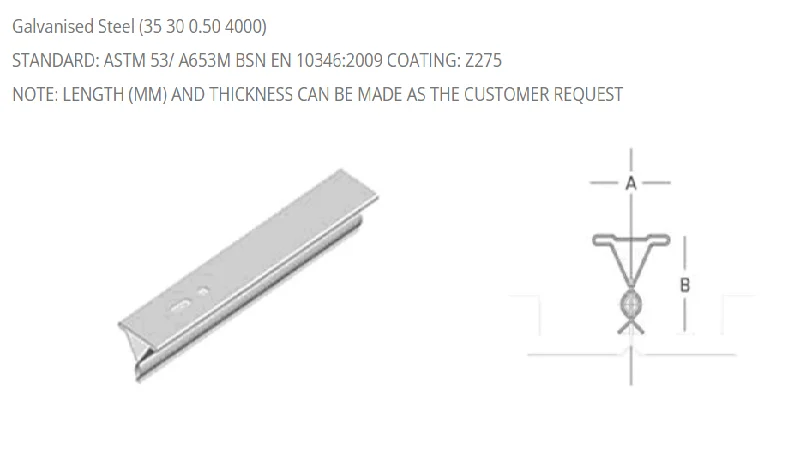

The profile drawing shows the section shape and main dimensions of the galvanized Spring Tee Triangle Keel produced by this machine.

Application Scenarios of Spring Tee Triangle Keel

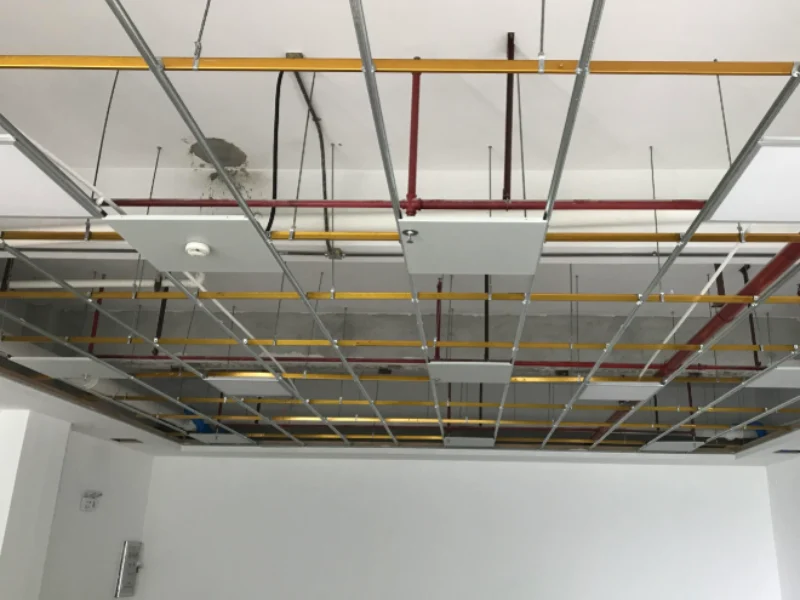

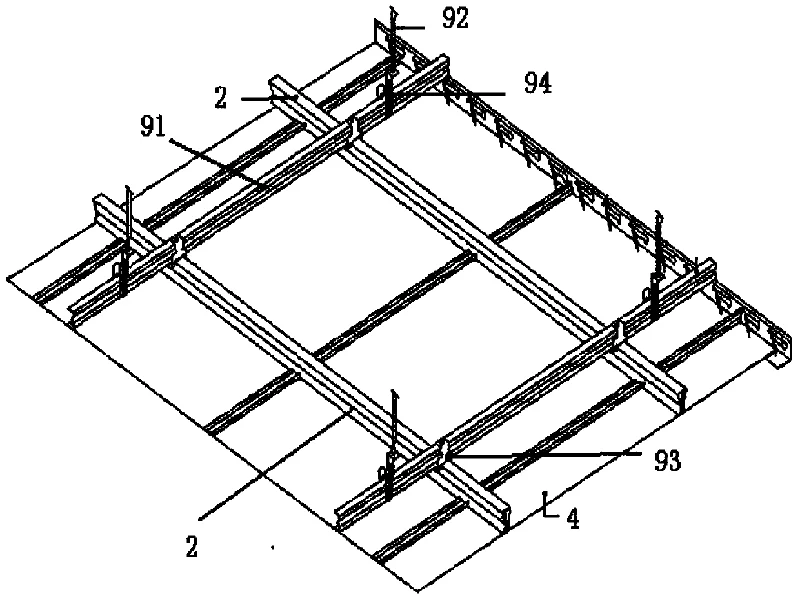

The Spring Tee Triangle Keel is commonly used in drywall ceiling and partition systems as a lightweight structural or supporting profile. Its formed triangular shape provides a practical solution for ceiling framing, suspension systems, and interior construction applications where consistent dimensions and stable profiles are required.

With a Galvanized Spring Tee Triangle Keel Roll Forming Machine, manufacturers

can produce continuous keel profiles from galvanized steel coil for applications such as commercial buildings, office interiors, residential projects, shopping centers, and other construction projects. The roll forming process is suitable for continuous production and can be customized according to different profile drawings and product specifications.

Key Features of the Galvanized Spring Tee Triangle Keel Roll Forming Machine

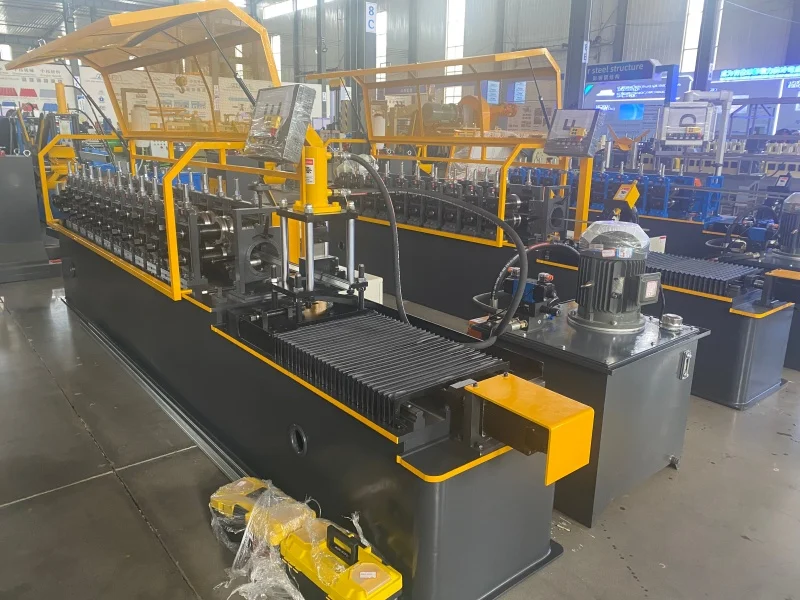

The Galvanized Spring Tee Triangle Keel Roll Forming Machine integrates feeding, leveling, roll forming, automatic cutting, and PLC control into one continuous production line. The galvanized steel coil is fed into the machine, leveled, and then gradually formed through multiple rollers until the required profile is achieved.

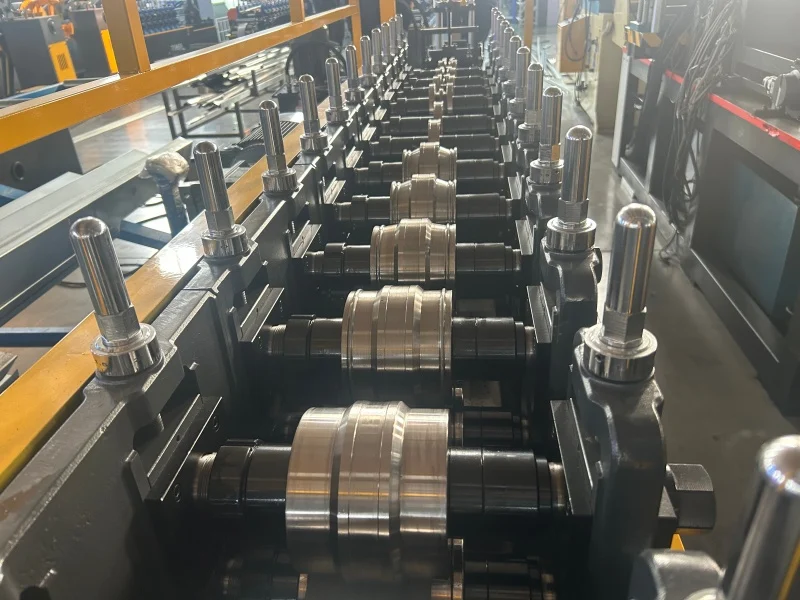

The rollers are made of Cr12MoV, while the shafts use 45# Steel with a Hard Chrome Plated Surface. The Roll Forming Stations and roller configuration are customized according to the customer's Profile Drawing. After forming, the automatic cutting system cuts the finished keel according to the required length.

Machine Specifications

The final machine specifications can be adjusted according to the actual profile, material, and production requirements of each customer.

How Does the Triangle Keel Roll Forming Machine Work?

The production process follows a simple continuous sequence:

Decoiling → Feeding → Leveling → Roll Forming → Cutting → Finished Product Collection

The galvanized steel coil is first loaded onto the decoiler and fed into the machine. After leveling, the strip passes through a series of forming rollers. Each station gradually changes the shape of the steel strip until the final Spring Tee Triangle Keel profile is formed.

Once the profile reaches the preset length, the automatic cutting system cuts it into individual sections. The finished products are then collected for further handling or packaging. The number of Roll Forming Stations and the forming sequence are determined according to the customer's profile drawing.

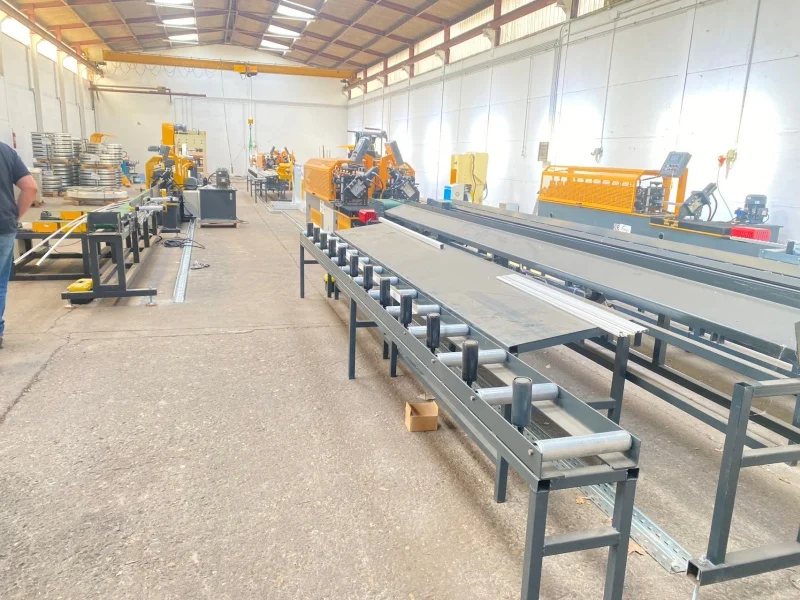

Belgium Customer Project: Installation and On-Site Commissioning

For this Belgium project, the Roll Forming Machine was manufactured according to the customer's requirements and tested before shipment. After delivery to the customer's factory, the equipment was installed and prepared for commissioning.

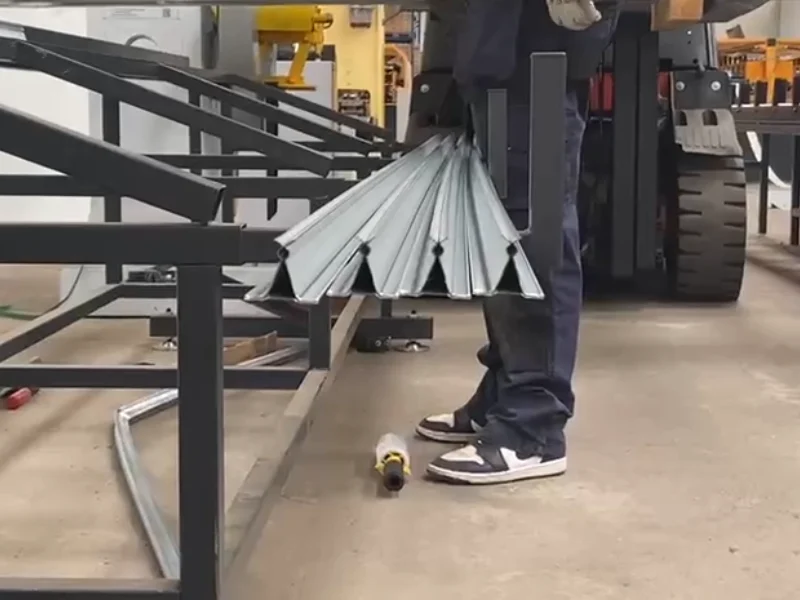

During on-site commissioning, the machine was operated with the customer's production material. The forming system and cutting system were checked and adjusted according to the actual production conditions, and the finished Spring Tee Triangle Keel was inspected to verify the forming result.

The machine was successfully installed and commissioned at the customer's factory in Belgium, completing the project from machine manufacturing and delivery to on-site production testing.

Why Choose a Customized Spring Tee Triangle Keel Roll Forming Machine?

A customized Roll Forming Machine is suitable for customers who have a specific profile drawing and production requirement. The roller configuration and forming stations can be designed according to the actual shape and dimensions of the finished product.

For overseas projects, machine installation and commissioning are also important parts of the complete solution. The Belgium project demonstrates our experience in delivering customized roll forming equipment and supporting the machine through on-site installation and trial production.

If you are planning to produce a similar Spring Tee Triangle Keel, providing your Profile Drawing, material type, thickness, and production requirements is the best starting point for machine design.

FAQ About Galvanized Spring Tee Triangle Keel Roll Forming Machine

What material can be used for the Spring Tee Triangle Keel Roll Forming Machine?
The machine is designed for Galvanized Steel Coil. The specific material requirements should be confirmed before production.

Can the machine be customized according to our profile drawing?
Yes. The forming rollers and Roll Forming Stations can be customized according to the customer's Profile Drawing.

What material thickness can the machine handle?
The reference thickness is 0.4–0.6 mm. The final range should be confirmed according to the actual profile and machine design.

Does the machine have automatic cutting?
Yes. The machine can use an automatic cutting system to cut the formed keel according to the required length.

Do you provide installation and commissioning support?
Yes. Installation and commissioning support can be provided according to the project requirements. The Belgium project included on-site installation and commissioning.

How can I get a customized roll forming machine?
Send us your Profile Drawing, material type, thickness, product length, and production requirements. Our engineers can evaluate the profile and recommend a suitable machine configuration.

Get a Quote for Your Spring Tee Triangle Keel Roll Forming Machine

Looking for a Galvanized Spring Tee Triangle Keel Roll Forming Machine for your production line? Send us your Profile Drawing together with the material and production requirements.

Our engineers can evaluate your profile and design a suitable Roll Forming Machine according to your actual requirements.

Send Your Profile Drawing and Get a Customized Quote.
