High efficiency solar panel mounting brackets machine unistrut channel roll forming machine

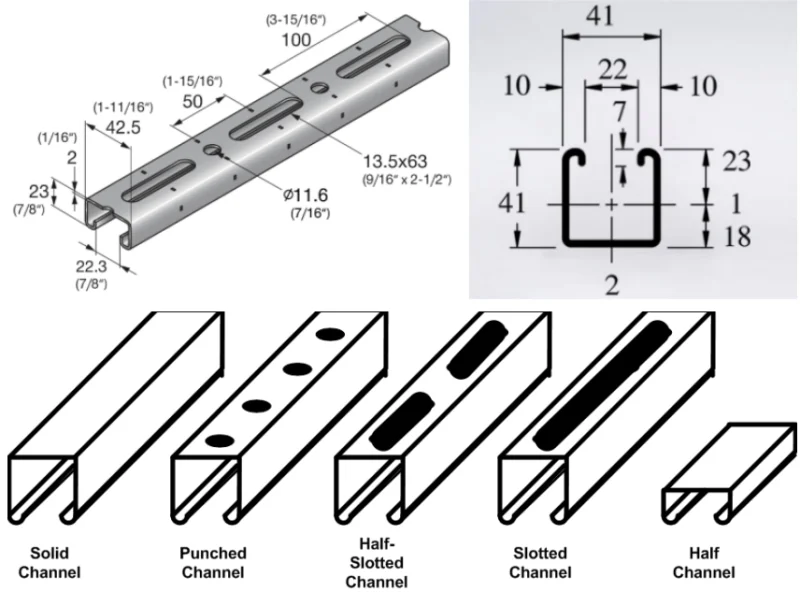

Standard cold roll formed steel called "Unistrut Channel" is used in construction or the electrical industry to provide structural support. Strut channel roll forming machines are used to produce C-shaped or U-shaped steel channels, commonly known as strut channels or unistrut channel, this machine is to make Strut Channels of sizes ranging from 21x41,41x41, material thickness 1.5mm-2.5mm.
this diagonal strut channel used in pallet storage system that greatly improves its beam load capacity, this mill capable to produce variable width strut channel with the same mill and tools, ZTRFM split spacer design allows strut width changeover within minutes without making any additional tools or removing operator side stand, any interest, welcome inquiry.
| Strut Channel Roll Forming Machine | ||||
| 1.Formed Material | GI | Thickness:0.8 to 2.5 mm (standard) | ||
| 2.Decoiler | 3 Tons decoiler | 3 Tons Manual decoiler(will give you as free） | ||
| 3.Main body | Roller station | 16 rows (As your requirement) | ||
| Diameter of shaft | 70 mm solid shaft | |||
| Material of rollers | Gcr15 | |||
| Machine body frame | 400 H steel | |||
| Drive | Gear and chains transmission | |||
| Dimension(L*W*H) | 15000*1800*1600(customize) | |||
| Weight | 5T | |||
| 4.Cutter | Automatic | cr12mov material, no scratches, no deformation | ||
| 5.Power | Motor Power | 7.5KW*2 sets,Siemens brand | ||
| Hydraulic system power | 15 KW | |||
| 6.Voltage | 380V 50Hz 3Phase | As your requirement | ||
| 7.Control system | Electric Box | Customized(famous brand) | ||
| Language | English(Support multiple languages) | |||
| PLC | Automatic production of the whole machine. Can set batch, length, quantity, etc. | |||
| 8.Forming Speed | 25 m/min | The speed depends on the shape of the tile and the thickness of the material. | ||

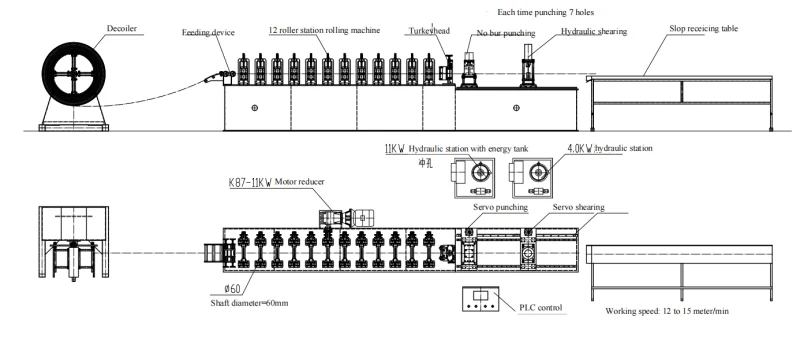

The working flow of unistrut channel roll forming machine

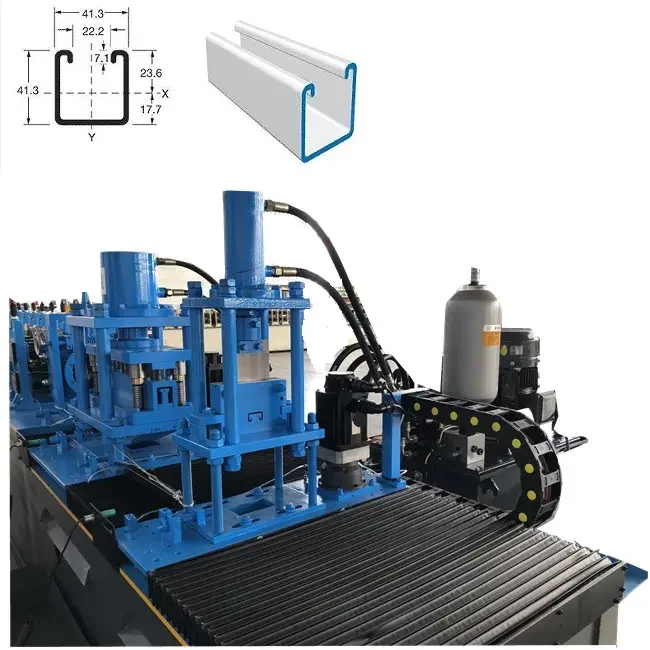

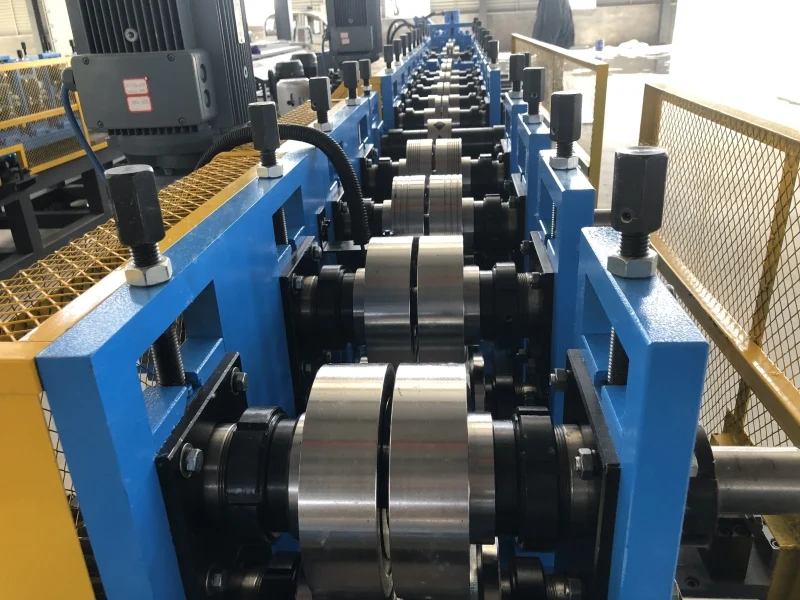

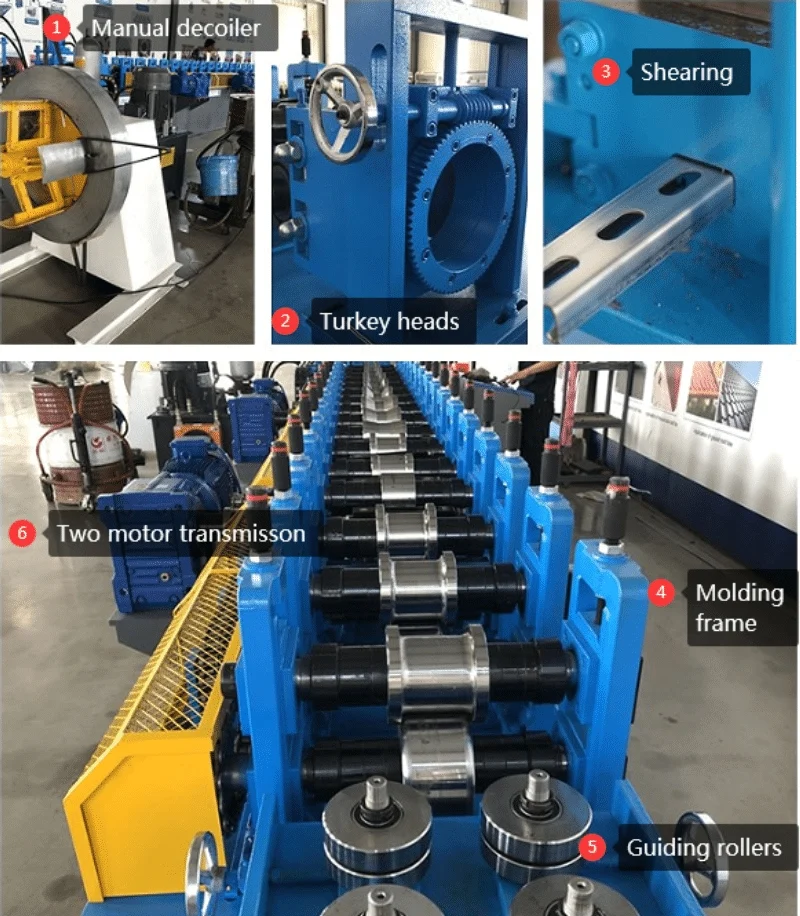

The machine photos of 41*41 strut channel roll forming machine
