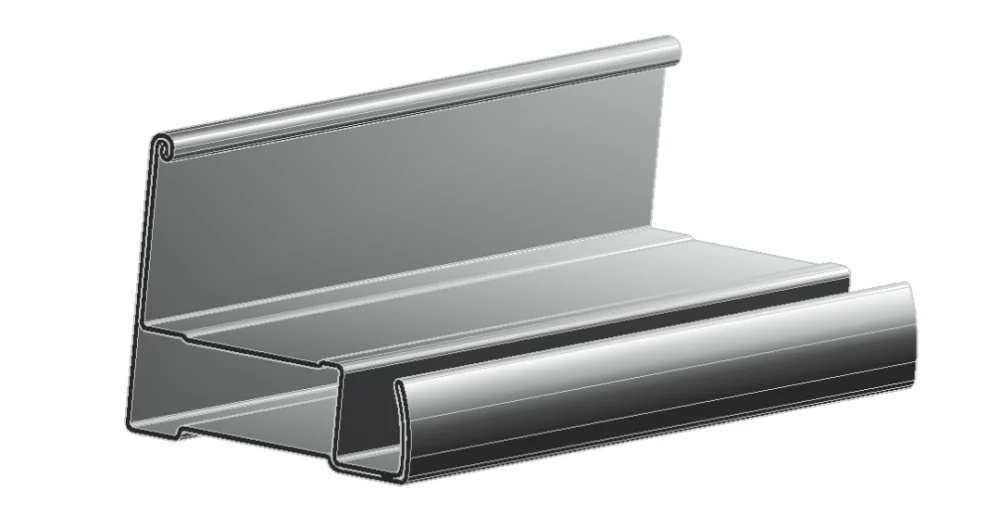

The Aluminum Solar PV Panel Frames Roll Forming Machine is uesd to make the L-shaped closed steel frame (photovoltaic panel frame), which uses the design and simulation module of Copra software, showing the powerful design and accurate simulation analysis
Detailed Content

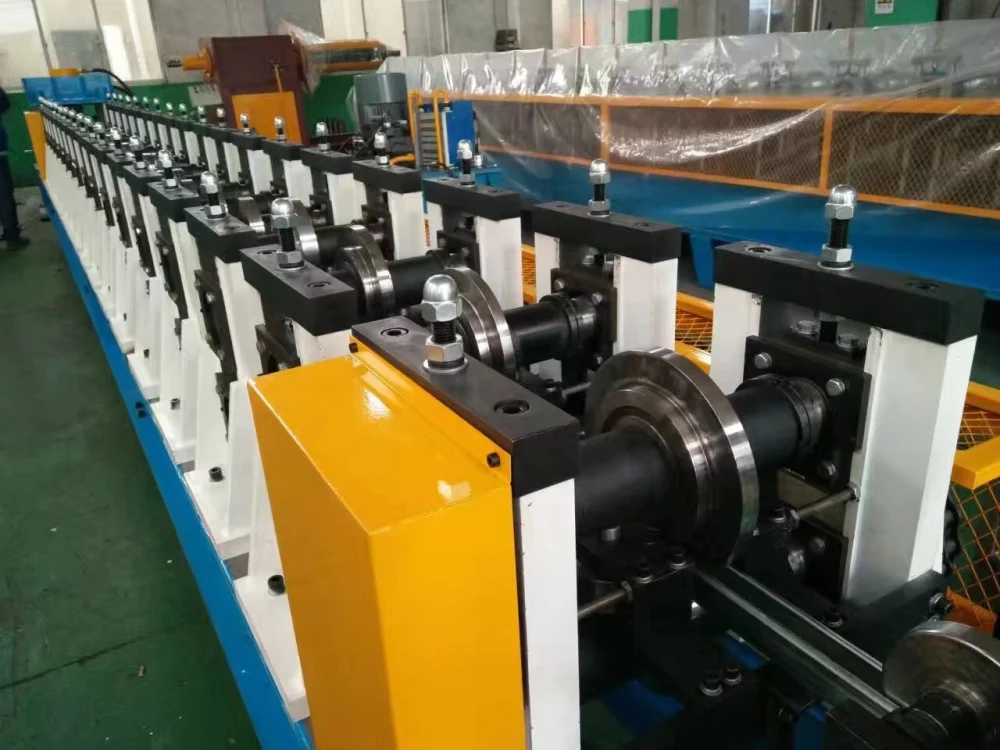

Description of Aluminum Solar PV Panel Frames Roll Forming Machine

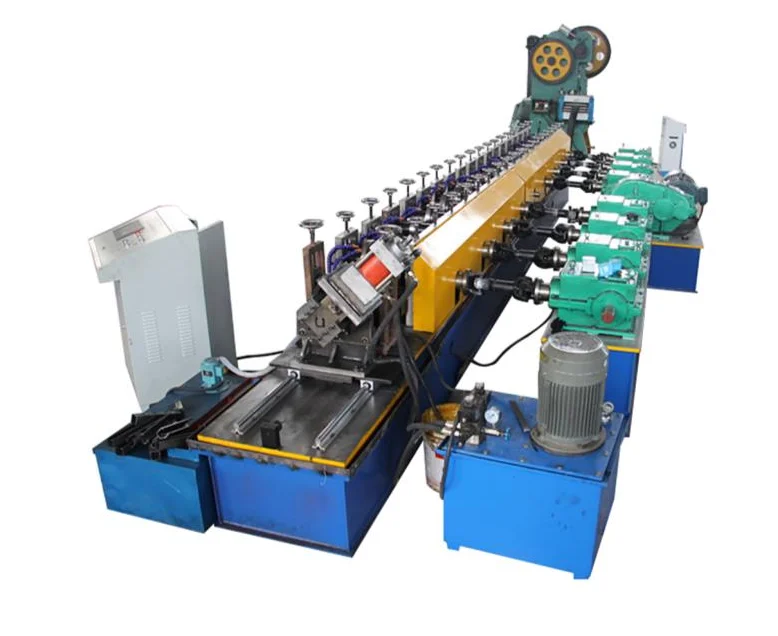

The Aluminum Solar PV Panel Frames Roll Forming Machine is uesd to make the L-shaped closed steel frame (photovoltaic panel frame), which uses the design and simulation module of Copra software, showing the powerful design and accurate simulation analysis functions, improving the design efficiency, and reducign the error costs.
Parameter of Aluminum Solar PV Panel Frames Roll Forming Machine
| Rolling Shaft Material | 40Cr | More stronger |
| Shaft diameter | 80mm | |
| Roller material | GB-Cr12 with heat treatment | HRC 56-58 |
| Rolling station | 12 stations | |
| Machine productivity | 0-15m/min | |
| Machine frame | Memorial frame vertical structure | 30mm thickness |
| Machine body | Steel plate welded box basic | |
| Work power | 1.1KW*2 | |
| Reducer ratio | 1:1.4 | |
| Transmission | By GEAR BOX | CARDAN SHAFT DRIVE |
| Cool system | Water cooling system | |
| Size adjustment | Change roller by hand to another size | |
| Suitable material | Carbom steel/GI | |
| Thickness | 1.5-2.5mm | |
| Voltage | 380V 50HZ 3phases (customized) |
Working flow of Aluminum Solar PV Panel Frames Roll Forming Machine

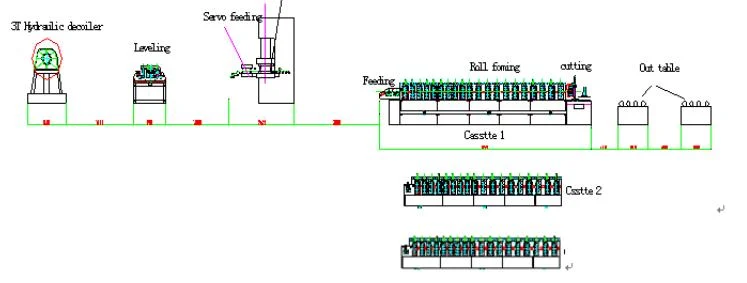

De-coiler→Leveling→Servo Feeding & Punching→Roll Forming→Cutting→Out Table
Advantages of Aluminum Solar PV Panel Frames Roll Forming Machine
1. Long service life and broad market prospects；
2. Strong yield strength and tensile strength；
3. Convenient roll pattern design, which can help engineers to quickly develop and modify the section；
4. Reasonable design of roller flower
5. Reasonable forming angle and forming number when forming each corner
If you want to know more about this machine, pleae contact with us now.
