Anti-vibration bracket C channel making machine

    Payment Type: L/C,T/T,D/P
    Incoterm: FOB,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
Basic Info

Model No.: zt-010

Length Of The Main Part: 9500-1650-1500mm

Weight Of Main Part: 6.8 T

Voltage: As Customer Required

Roller Fixer: Middle Plate Welded

Frame: Guide Pillar And The Thickness Is 50mm

Frame Thickness: 25mm

Drive Mode: Gear

Material Of Rollers: 45# Steel,surface Hard Chromium Plating

Material Of Shafts: 45# Steel

Additional Info

Productivity: 8-22m/min

Brand: ZhongTuo

Transportation: Ocean

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: ISO9001, CE

Port: TIANJIN

Product Description

What is the Anti-vibration bracket C?

Anti-seismic brackets are various components or devices that limit the displacement of ancillary electromechanical engineering facilities, control the vibration of the facility, and transfer the load to the load-bearing structure.

After earthquake-resistant construction, the water supply and drainage, fire, heating, ventilation, air conditioning, gas, heat, electricity, communications and other mechanical and electrical engineering facilities, when encountering earthquakes in the earthquake-resistant intensity of the region, can reduce earthquake damage, reduce and Prevent the occurrence of secondary disasters as much as possible, so as to reduce the number of casualties and property losses.

Here is some drawing profiles anti-vibration bracket C channel for your reference:

1


2


Based on the knowing of the Anti-vibration bracket C channel, we design the machine like the following:

3



Here are some parameters of Anti-vibration bracket C channel making machine for your reference:

MACHINE COMPONENTS:

1

Manualdecoiler or hydraulic decoiler

1 set

2

Leveling Machine

1 set

3

Punching station

1 set

4

Servo coil feeder

1 set

5

Roll Forming

1 set

6

Hydraulic Cutting

1 set

7

PLC Control System

1 set

8

Hydraulic Station

1 set

9

Run-out Table-(Un-powered)

1 set

4. Main forming machine :

1) Forming steps: 16 steps

2) Outer diameter: 60mm
3) Machine frame (type): memorial arch frame, Thickness of memorial arch frame: 30mm

4) Roller information:
A. Raw material: GCr12MoV0

B. Quenched degree: 58-60°C

5) Shaft material: 40cr quencing.
6) Main motor power: 15kw, Reducer ratio: 1:14,

Reducer Type: Hardened reducer

Gearbox transmission: Gearbox transport

A. Gear material: 42Cr

B. Processing technical: hardening gear grinding processing

C. Gear lubrication system: automatic oil drip by computer control, oil drip time and amount can be controlled according the needs.

D.Gear cooling system: Automatic cooling circulation tank, which can guarantee not to exceed the gear temperature limit.

Here are some Anti-seismic brackets usages in daily life:

4


5

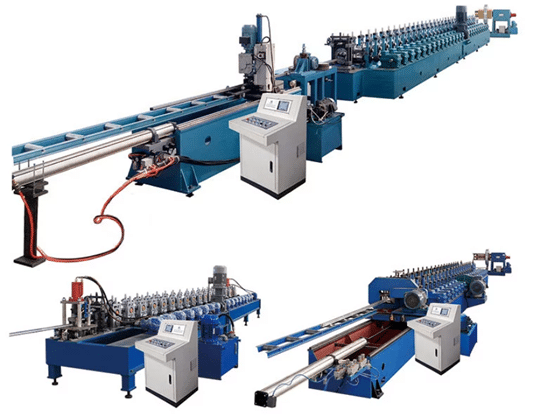

Here are more detail pictures of the Anti-vibration bracket C channel making machine:

6



FAQ:

1.Does one Anti-vibration bracket C channel making machine can only produce one style product?

Not exactly. Our machines can produce more kinds of by change their rollers.

2. Do you have after sales support?
Yes, we are happy to give advice and we also send skilled technicians to your place to support the technical guidance. We will let your machines running that in order to keep your business running.

3. What can you do if the machine broken?

Our machine's warranty period is 12months. And if the broken parts can't be repaired, we will send the new one to replace the broken parts. And the only thing you need to do is paying the transport costs.

If beyond the warranty period, we can through the negotiation to solve the problems, and we will supply the technical support for the whole life of the machine.

Looking for ideal Anti-vibration bracket C channel making machine manufacturer & supplier ? We have a wide selection at great prices to help you get the target product.
