U Bracket Solar Power Stent Manufacturing System

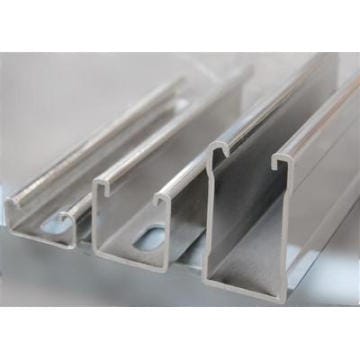

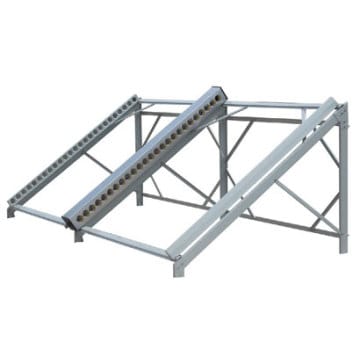

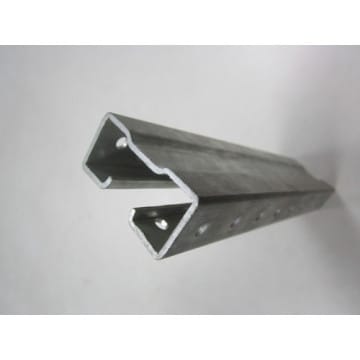

U Bracket Solar Power Stent Manufacturing System is machine to produce U shape purlin, this U shape purlin always used in Solar Power Stent.

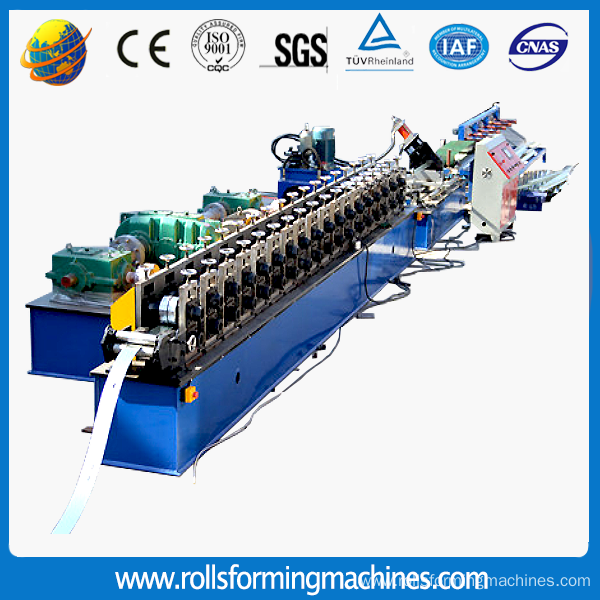

All the production line combine with decoiler, punching part, main Roll Forming Machine, hydraulic cutting part and run out table.

Quickly parameter:

1 Suitable to process:PPGI, PPGL, GI, GL, Black Steel ASTM A-36 from

2 Width of the plate :175/400mm

3 Rollers: 18 rows

4 Dimensions :6.3*1.4*1.5m

5 Power: 18.5kw

6 Thickness of the plate: 1.2-2.5mm

7 Productivity: 8-14m/min

8 Diameter of the roller: Φ80mm

9 Weight :About 3T

10 Voltage: 380V 50Hz 3phases

11 Material of the cutting plate: Cr12

12 Hydraulic :40#

13 Processing precision Within: 1.00mm

14 Control system: PLC control

15:shaft diameter:70mm

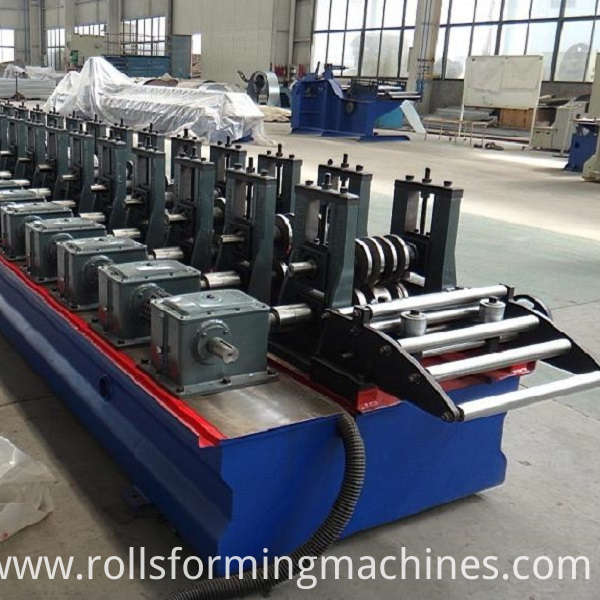

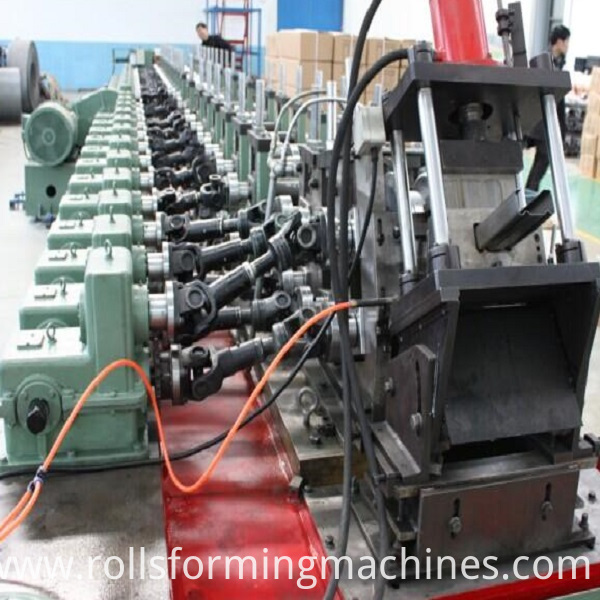

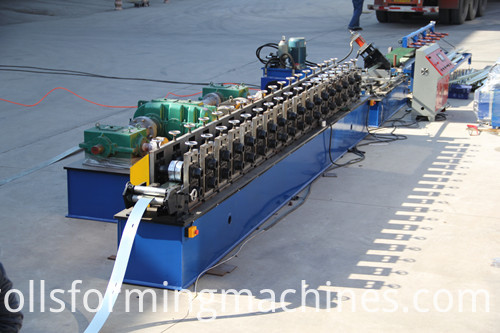

More machine pictures of U Bracket Power Stent machine:

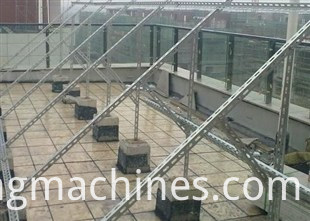

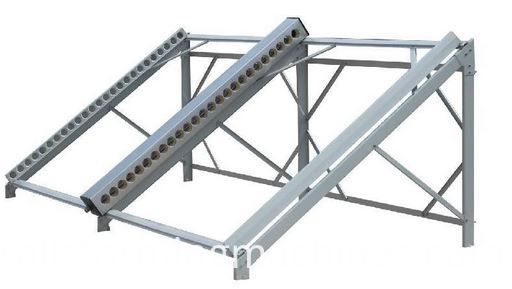

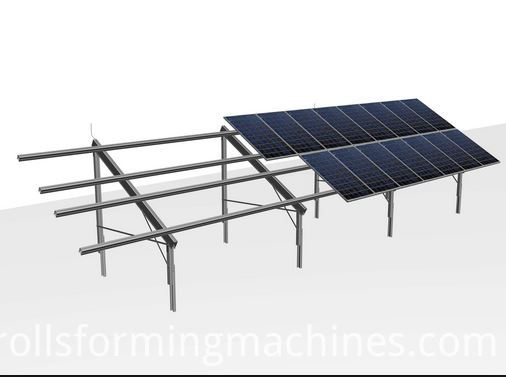

Some pictures for project:
