Stone Coated Metal Roof Tile Machine

    Unit Price: USD 125000 - 35800 / Set/Sets
    Payment Type: T/T,L/C,D/A,D/P
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 90 Days
Basic Info

Model No.: ZT-005-60

Additional Info

Packaging: as customer requirem

Productivity: 600 pieces an hour

Brand: ZHONGTUO

Transportation: Ocean,Land,as customer requirem

Place of Origin: China

Supply Ability: 5 set/3 month

Certificate: CE, ISO9001

Product Description

Stone Coated Metal Roof Tile Machine

We developed Stone Coated Metal Roof Tile Machine based on long time running and improvement. It is high-performance,stable, energy-efficient and easy operation.

Stone Coated Metal Roof Tile Machineis including five main parts:

1. Auto bottom glue spraying section

2.Auto stone coated section

3 .The first time drying section

4 .Auto face glue spraying section

5. The second time drying section

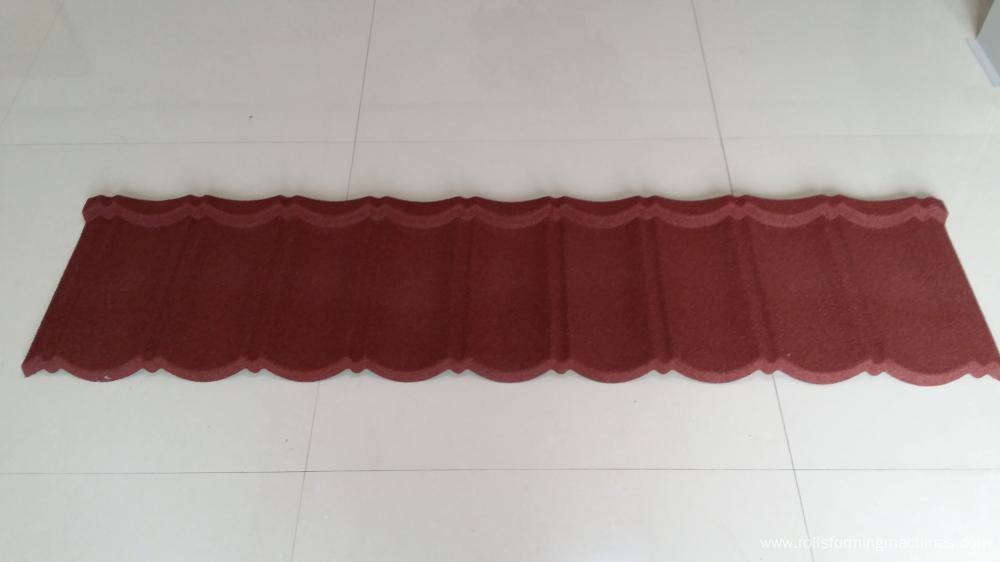

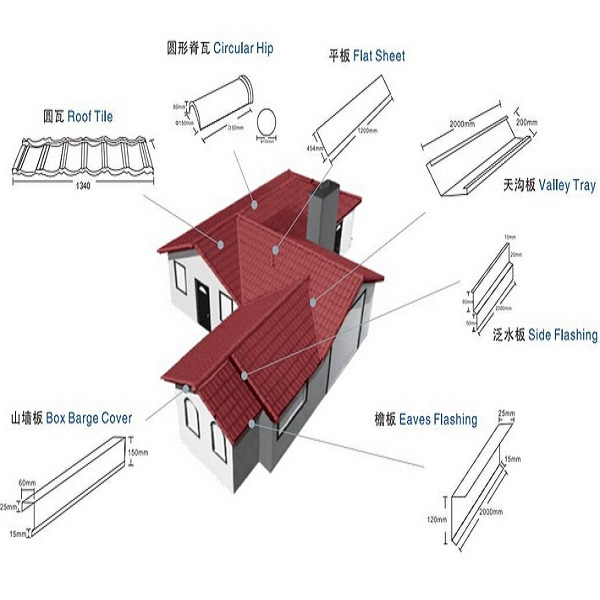

the type of rool tile we can do:

Shingle for Stone Coated Metal Roof Tile Machine

Classic for Stone Coated Metal Roof Tile Machine

Roman for Stone Coated Metal Roof Tile Machine




The detailed informations of Stone Coated Metal Roof Tile Machine

Auto bottom glue spraying section

1.Outside Dimension:800*1350*850mm(L*W*H)

2.Structure:Channel steel ,weldedTransmission:2.2 kw Variable-frequency adjustable-speed motor 0-32R/Min

3.Conveying device: Reciprocating chain conveys

4.Automatic glue spraying assembly with motor:0.06kw

5.Adsorption of dust removal equipment:1 set

6.Air compressor:1 set 0.09m³

7.Airless spray glue pump:1 set

8.Automatic glue spraying gun:1 piece

9.Fill glue gun: 1 piece

 Auto bottom glue spraying section for Stone Coated Metal Roof Tile Machine

Auto stone coated section

1.Outside Dimension :3000*1850*700mm(L*W*H) Structure:Channel steel ,angle steel ,welded

2.Transmission:With glue spraying equipment compound chain transmit

3.Conveying device:Compound chain transmit

4.Automatic sand hopper:1 set (dimension 550*600*500mm)

5.Automatic rising machine:1 set(Rising height:1.9m Power:300kg/h)

Stone Coated Roof Production Line for Stone Coated Metal Roof Tile Machine

drying section

1.Outside Dimension :25000*800*1200mm(L*W*H)

2.Structure:carbon steel welded Frame type heat preservation ,wall:fill up with heat preservation material which is bended with 1mm carbon steel

3.Automatic temperature controller:2 sets,Range of adjustable temperature:0-160°

4.Infrared fluorescent tube:50 pcs

5.Conveying device: Reciprocating chain conveys

6.Cool device:1 set

drying section for Stone Coated Metal Roof Tile Machine

Stone Coated Metal Roof Tile Machine


Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.

Delivery time : 90 days

Container need: two 40 GP and one 40 HQ

1. One year, and we will provide the technical support for the whole life.

2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD50/person/day for salary.

3. Need one technician.

4. Training time: one week (contains the time of installation and adjustment)


The video of Stone Coated Metal Roof Tile Machine:

1. roof tile making mchine:



2. stone coated machine


Looking for ideal Stone Coated Roof Tile Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Stone Coated Metal Roof Machine are quality guaranteed. We are China Origin Factory of Stone Coated Roof Production Line. If you have any question, please feel free to contact us.
