Zhongtuo Roll Forming Machinery Co., ltd

Heavy Duty Scaffold Metal Plank Roll Forming Machine
Heavy Duty Scaffold Metal Plank Roll Forming Machine
Heavy Duty Scaffold Metal Plank Roll Forming Machine
Heavy Duty Scaffold Metal Plank Roll Forming Machine
Heavy Duty Scaffold Metal Plank Roll Forming Machine
Heavy Duty Scaffold Metal Plank Roll Forming Machine

Heavy Duty Scaffold Metal Plank Roll Forming Machine

Payment Type: L/C,T/T,Money Gram,Western Union
Incoterm: FOB,CFR,CIF,EXW
Min. Order: 1 Set/Sets
Delivery Time: 60 Days

Contact Now Add to Basket

Basic Info

    Model No.: ZT005

    Certification: CE, ISO9001

    Customized: Customized

    Condition: New

    Control Type: Other

    Automatic Grade: Automatic

    Drive: Other

    Place Of Orign: China

    Warranty: 1 Year

Additional Info

    Packaging: nude packing

    Productivity: 5-10mpm

    Brand: ZHONGTUO

    Transportation: Ocean

    Place of Origin: China

    Supply Ability: 5SET/MONTH

    Certificate: CE, ISO9001

    HS Code: 84552210

    Port: TIANJIN,SHANGHAI

Product Description

New Customise Heavy Duty Metal Scaffolding Plank/Catwalk Roll Forming Machine

New Customisez Heavy Duty Metal Scaffolding Plank/Catwalk Roll Forming Machine is designed to make many sizes of scaffold plank decking panels in batch and fully autoamtic. The whole production line is controlled by PLC, through PLC you can control metal scaffold plank decking working speed, production quantity and also the length. Scaffold Metal Decks and Steel Planks are made in Galvanized and Painted with Plain Ends and Hook-on for Scaffolding System, Pipe and Fitting Scaffolding, the material thickness is from 0.8 to 2.0mm. In the market, there are lots of metal decking types, take the following profiles for example:

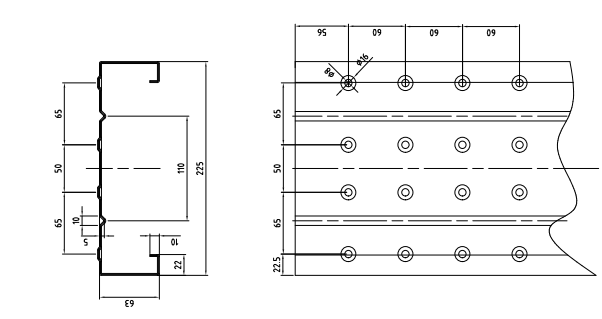

SCAFFOLD PLANK PROFILE.png


with hook effect:

SCAFFOLD PLANK WITH HOOK.png

New Customise Heavy Duty Metal Scaffolding Plank/Catwalk Roll Forming Machine Components:

No.

Name

Type

QTY

Power(KW)

Mark

1

Decoiler

5THydraulic decoiler

1set

2

Servo feeding

&leveling

with independent control device

1set

7.5KW

Pneumatic

3

Punch machine

Yangli 80TONS

1SET

4

Punch dies

1SET

SKD11

design as holes

5

Main forming machine

memorial arch type,gear box drive

1SET

22KW

6

pneumatic circuit

0.5m2/min;0.7Mpa

1SET

8

Hydraulic cutting

1SET

5.5KW

9

Control system

PLC CONTROL

1SET

10

Runout table

3M

1SET

Metal Scaffolding Plank/Catwalk Roll Forming Machine Work Flow:

work flow.png

Metal Scaffolding Plank/Catwalk Roll Forming Machine parts:

1. 5ton Hydraulic Decoiler

SCAFFOLD PLANK MACHINE.jpg

Hydraulic tightening, built-in motor drag.

Ø Bearing capacity: <5t

Ø Applicable material roll inner diameter: φ508mm

2. Metal Scaffolding Plank/Catwalk Roll Forming Machine Punch Machine

PUNCH MACHINE.jpg

Adopt more advanced straight punching method to improve punching efficiency.

When the plate thickness changes, first adjust the center distance between the upper and lower rollers of the roller punch roller, and then adjust the bridge gear through the adjustment device.

3. Metal Scaffolding Plank/Catwalk Roll Forming Machine Punch Machine Main Forming Machine


Supported coil width: ≤500 mm

Material thickness: 1.2mm-2.0 mm

Supported mateiral: S275 GI

Machine working speed: 5~10 m/min

Main power: 22kw

Check about our precision:


Packaging & Shipping

Packing details

Our Services

1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
c.If there is any problem found of the machine, we will repair it for free in one year.

Company Information

ZTRFM has been dedicating to roll forming technologies for over 2 decades and now boasts strong experience, capabilities, innovative thinking and roll forming expertise to provide perfect roll forming solutions to our clients. At ZTRFM, we can help build a better future for you and your customer.

company

FAQ

1. IS AFTER SALES SERVICE AVAILABLE?

Yes, we offer 7x 24hours online support and our engineers can work oversea to help.

2. HOW CAN I GET TO YOUR FACTORY?

a. First fly to Beijing airport and then go from Beijing Nan to Cangzhou Xi (1 hour) by high speed train . Then we can pick you up at the railway station.

b. First fly to Shanghai Airport and then go from Shanghai Hongqiao to Cangzhou Xi(4.5 hours) by high speed train. Then we can pick you up at the railway station.

3. WHAT IF SOME PARTS BREAK?

We offer warranty of 12 months ,during which free spare parts are available if some parts of the machine break to be irreparable. Besides, we also offer whole life technical support which means we will still offer technical advice 1 year after your purchasing. We can discuss to help you out.

4. CAN YOU TAKE CHARGE OF TRANSPORT?

Yes, we have strong expertise in this area for years and you can trust us.

Looking for ideal Scaffold Plank Making Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Catwalk Roll Forming Machine are quality guaranteed. We are China Origin Factory of Scaffold Board Roll Form Machine. If you have any question, please feel free to contact us.
