Scaffold catwalk panel/scaffold decking roll forming machine

    Unit Price: USD 29000 - 45000 / Set/Sets
    Payment Type: L/C,T/T,D/P
    Incoterm: FOB
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
Basic Info

Model No.: cnzt-002

Additional Info

Packaging: as customer requirem

Productivity: 2-8 m/min


Transportation: Ocean,Land,as customer requirem

Place of Origin: China

Supply Ability: 30 sets/month

Certificate: CE, ISO9001

Product Description

Scaffold catwalk panel/scaffold decking Roll Forming Machine

Scaffolding, also called scaffold or staging, is a temporary structure used to support a work crew and materials to aid in the construction, maintenance and repair of buildings, bridges and all other man made structures. Scaffolding is also used in adapted forms for formwork and shoring, grandstand seating, concert stages, access/viewing towers, exhibition stands, ski ramps, half pipes and art projects (quotoed from wiki). Now the metal ladder scaffolding for concrete slab and masonry construction, here are some drawing profile and finsihed product pictures for your reference:

scaffolding 13

Advantage of our scaffold decking roll forming machine:

1. Rollforming Mills For Scaffolding Springboards is controlled by PLC control system ,during normal work,it will more security.

2. The basic of Scaffolding Board Making Machine is middle plate,it will be welded and tempering to avoid the distortion.

3.The frame of machine is iron structure,it will tempering.After this process, it will more strong and long life.

4.Transmission structure for the gear box. Each rack has a gear box molding can ensure that equipment over time, high-intensity running, and long service life.

Scaffold Decking Machine

Scaffolding roll forming machine parameters:

Machine working process:

Working process

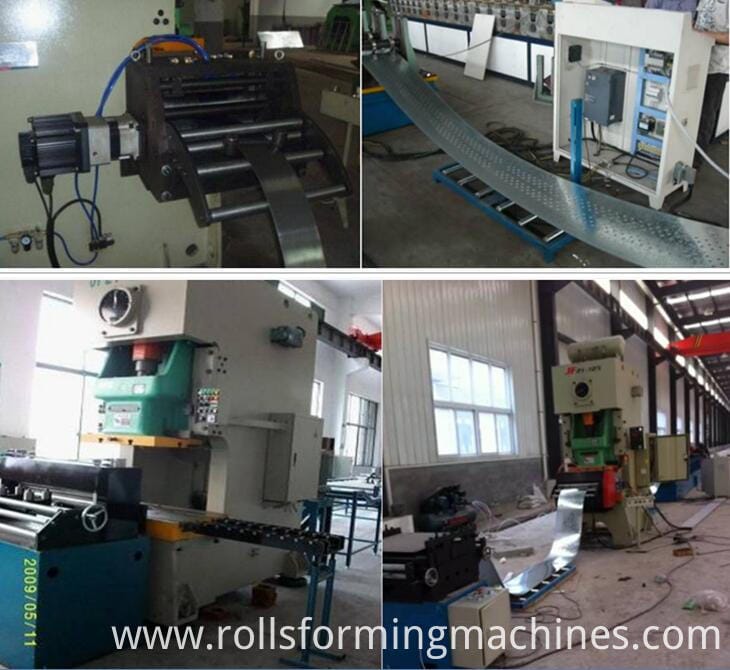

Decoiler--> leveling--> servo coil feeding--> punching system--> roll forming machine--> sizing and shearing

Systemà runout table

Main roll forming machine

1. Roller station: 18
2. Machine frame: Independ stand

3. Support the Max coil width: 380mm

4. Machine frame material: HT200 tempering
5. Lelveing roller: 70mm, material is 40Cr quencing.

6. Transmission: Gearbox

8. Main machine power: 15kw ZQ500 reduction box and velocity ration is 31.5

10. Shaft diameter: 80mm, made by 40Cr quencing at 56 to 58 degree.

11. Roller material: GCr12, quenching to the whole and make the hardness to HRC56-62º

12. Motor explosive-proof grade: ExdIICT4

13. Motor protection grade: IP54

combimned Machine working proces

For the machine, there is a video for your reference.

Looking for ideal Scaffold Decking Machine Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Scaffold Catwalk Panel Machine are quality guaranteed. We are China Origin Factory of Scaffold Decking Roll Forming Machine. If you have any question, please feel free to contact us.
