Steel Anchors Pipe Making Machine
Advantage of our SSteel Anchors Pipe Making Machine:
1. Steel Anchors Pipe Making Machine is controlled by PLC control system ,during normal work,it will more security.
2. The basic of Steel Anchors Pipe Making Machine is guide column.
3.Transmission structure for the gear box. Each rack has a gear box molding can ensure that equipment over time, high-intensity running, and long service life.
Basic information of Steel Scaffolding Board Roll Forming Machine:
Process: decoiler--feeder--roll former--cutting and punch the line--run out table---necking
Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Loading capacity: 3T
Uncoiling width: 300mm
Inner diameter: 450-550mm

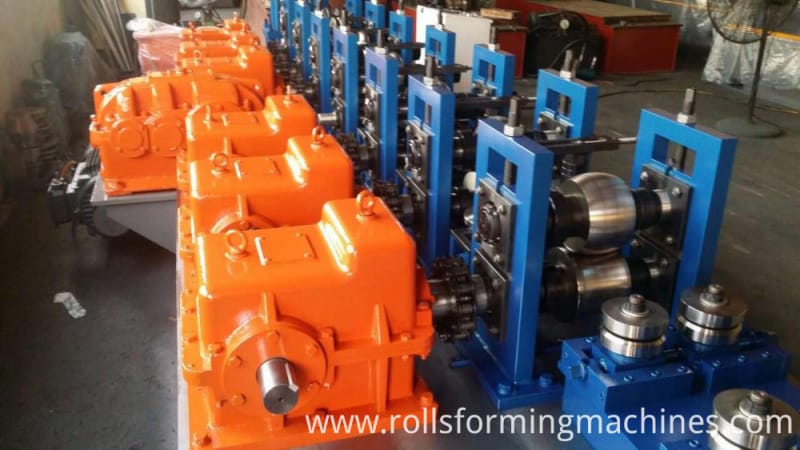

Roll forming machine
Weight t: 5 tons
Voltage:380V/50HZ3Phase(as customer`s request)
Roller fixer : Vertical arch
Frame : middle plate welded
Memorial arch frame type
Drive mode: Differential box
Material of rollers: GCr12MoV
Material of shafts: 45# steel with tempering
Diameter of shafts: φ70mm
Number of rollers : 11 rollers (5 Level, 6 Vertical)
Main power: 15kw
Cycloidal planetary gear speed reducer)
cutting and punch the line
Material of blades: Gcr12MoV quenched
Power supply : hydraulic power
Frame : Pillar style with rack & pinion system
Stroke switch : non-contact photoelectric switch
Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.
Hydraulic motor Power: 3kw
Hydraulic oil: 46#
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.
PLC station Feature:
1. Adopted PLC, transducer, touch panel from Delta Taiwan to ensure high speed with stability, precision and lifetime.
2.Other electric element are Delta
3. Equipped with movable switch, air break, radiator, transformer & electric leakage protector for operation convenience and safety.
Mould Material : Gcr12MoV quenched

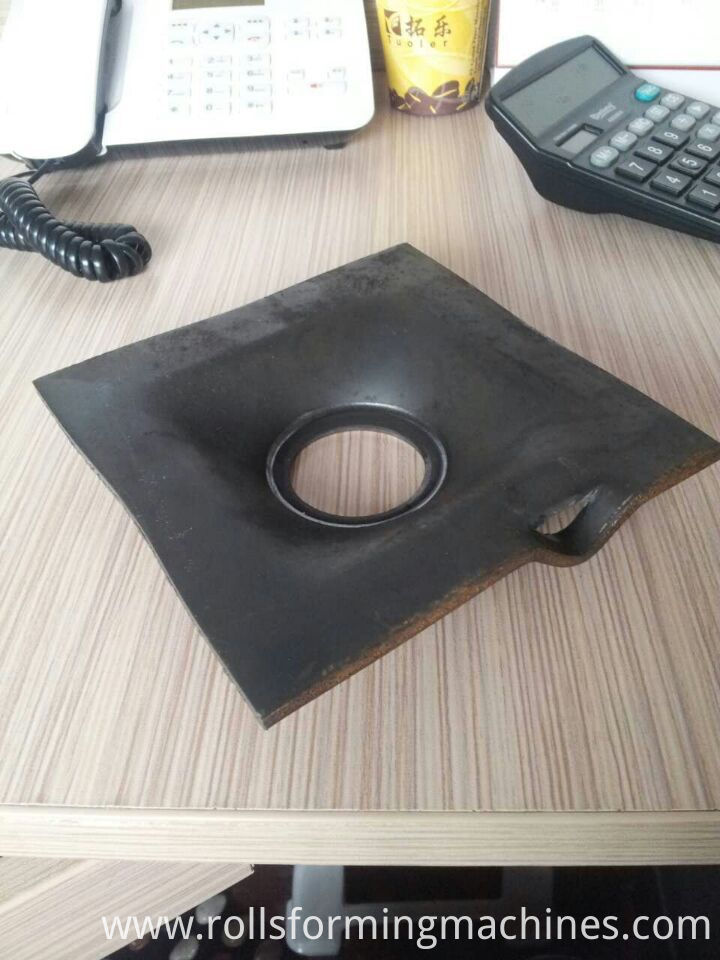

Punching the plate:
Mould material : Gcr12MoV quenched
Final product for you reference:
1,Delivery date :45 working days
2,Payment terms: Payment: 30% T/T in advance and balance 70% after, Inspection confirmation before shipment.
Delivery: within 45 working days after receipt of deposit
